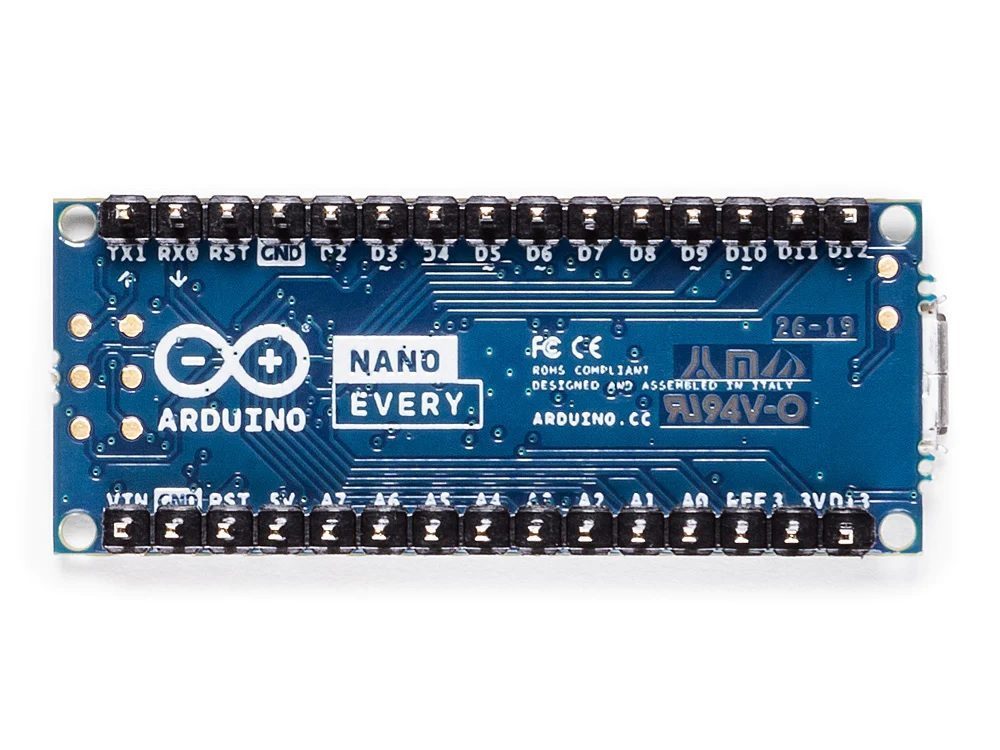

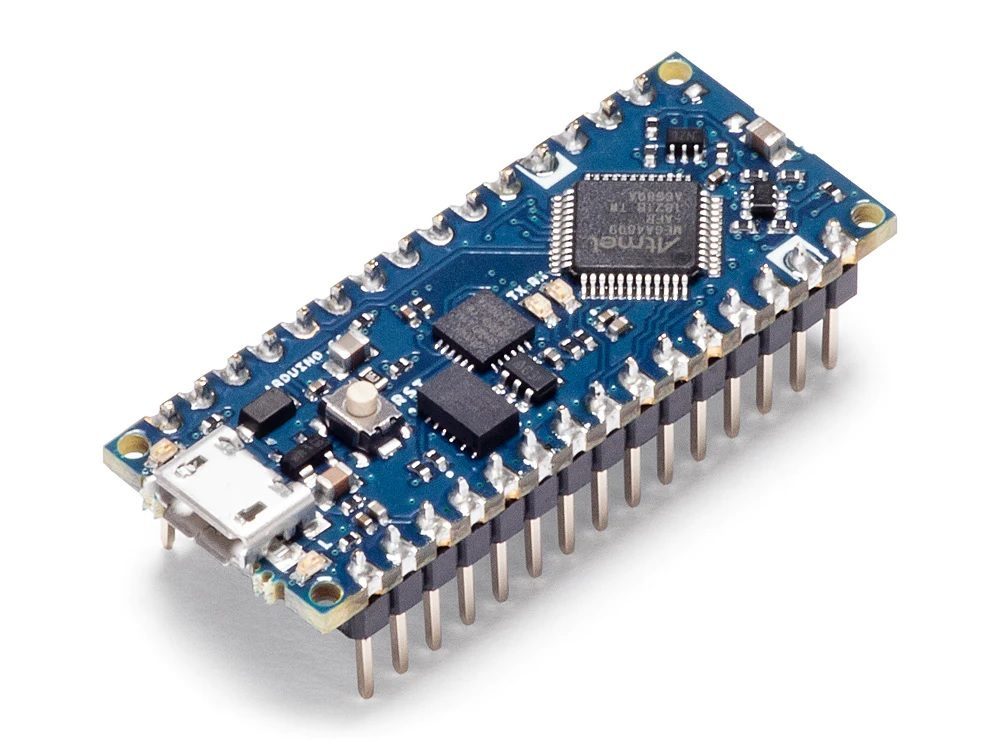

Original Arduino Nano Every With Headers ABX00033

The Arduino Nano Every With Headers ABX00033 is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

Each set of headers allows you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solderless breadboard. Note: Soldering is required for functionality and physical attachment to a shield or board

Features:

• Easy to use
• Brand new product
• Small in size
• Easy to learn with Arduino
• Color: Blue
• low cost
• Low power consumptions

Specifications:

• VIN MIN-MAX: 7-21V
• DC Current per I/O Pin (mA): 20
• DC Current for 3.3V Pin (mA): 50
• Clock Speed: 20 MHz
• CPU Flash Memory: 48KB
• SRAM: 6KB
• EEPROM: 256byte (ATMega4809)
• PWM PINS: 5 (D3, D5, D6, D9, D10)
• UART: 1
• SPI: 1
• 12C: 1
• Analog I/O Pins: Input Pins 8 (ADC 10 bit), : Out put Only through PWM (no DAC)
• EXTERNAL INTERRUPTS: all digital pins
• On Board LEDs: 13
• USB: Uses the ATSAMD11D14A
• Length (mm): 45 mm
• Width (mm): 18 mm
• Height (mm): 2
• Weight (g): 5 gr (with headers)

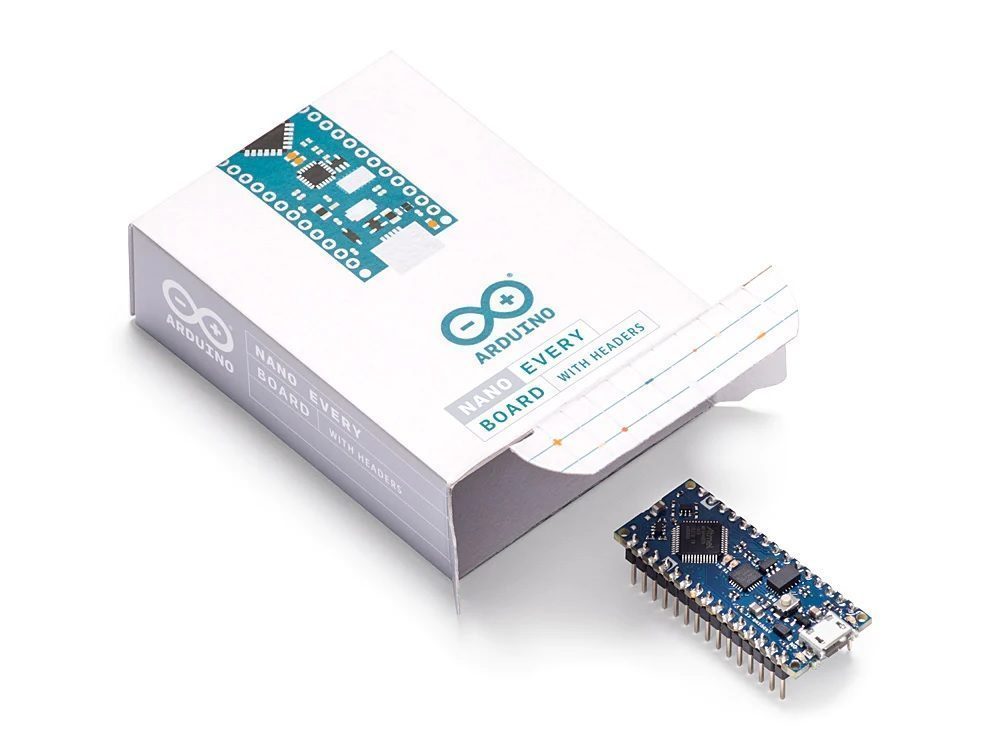

Packages Includes:

• 1 x Arduino Nano Every With Headers ABX00033
