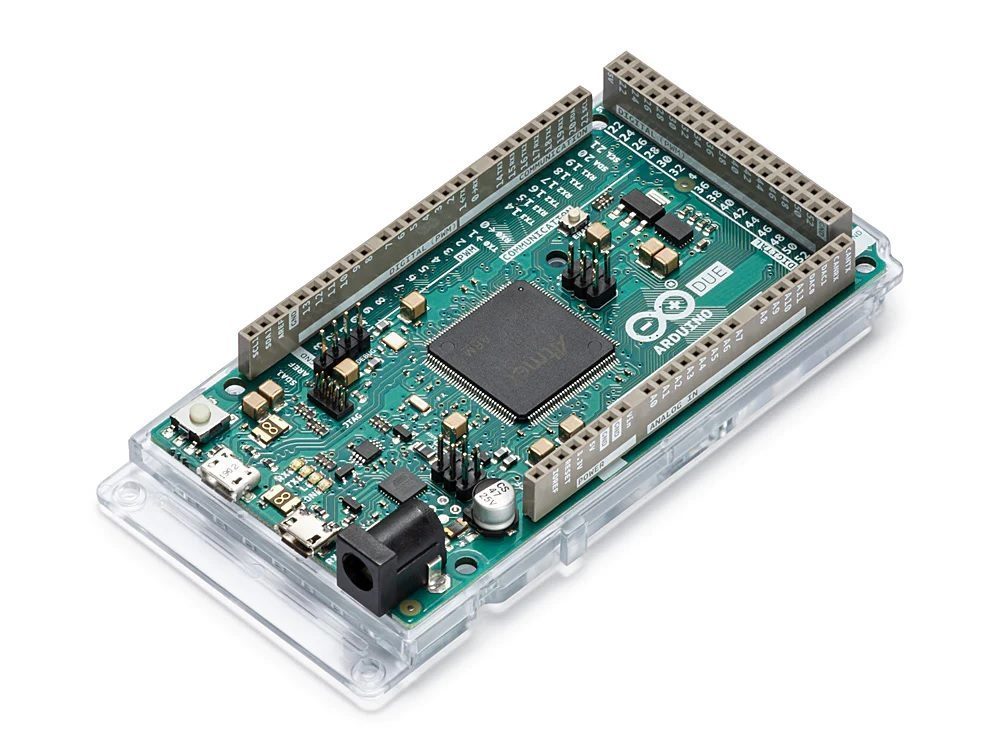

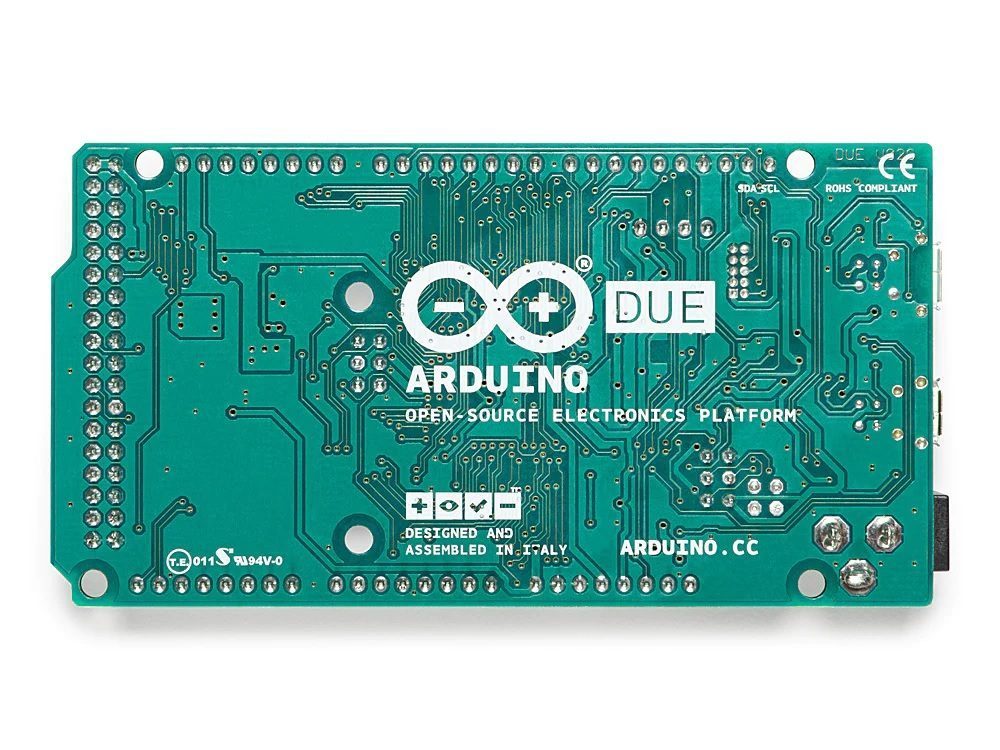

Original Arduino Due Board

The Arduino Due is a microcontroller board-based Original Arduino Due Board on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

The Arduino Due board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

Specifications:

• Microcontroller Chip: AT91SAM3X8E
• Input Voltage (limit): 6-16V
• Input Voltage(Recommended): 7-12V
• Analog I/O Pins: 12
• Digital I/O Pins: 54 (of which 12 provide PWM output)
• Analog Output Pins: 2 (DAC)
• Clock Speed: 84 MHz
• Flash Memory: 512 KB
• SRAM: 96
• DC Current for 3.3V Pin (mA): 800
• DC Current per I/O Pin (mA): 130
• On Board LEDs: Yes
• Operating Temperature (°C): -20 to 80
• Weight (gm): 36
• Length (mm): 102
• Width (mm): 54
• Height (mm): 25

Due follows the 1.0 pinout:

• TWI: SDA and SCL pins that are near to the AREF pin.
• IOREF: allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
• An unconnected pin, reserved for future use.

Warning:

• Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

Package Includes:

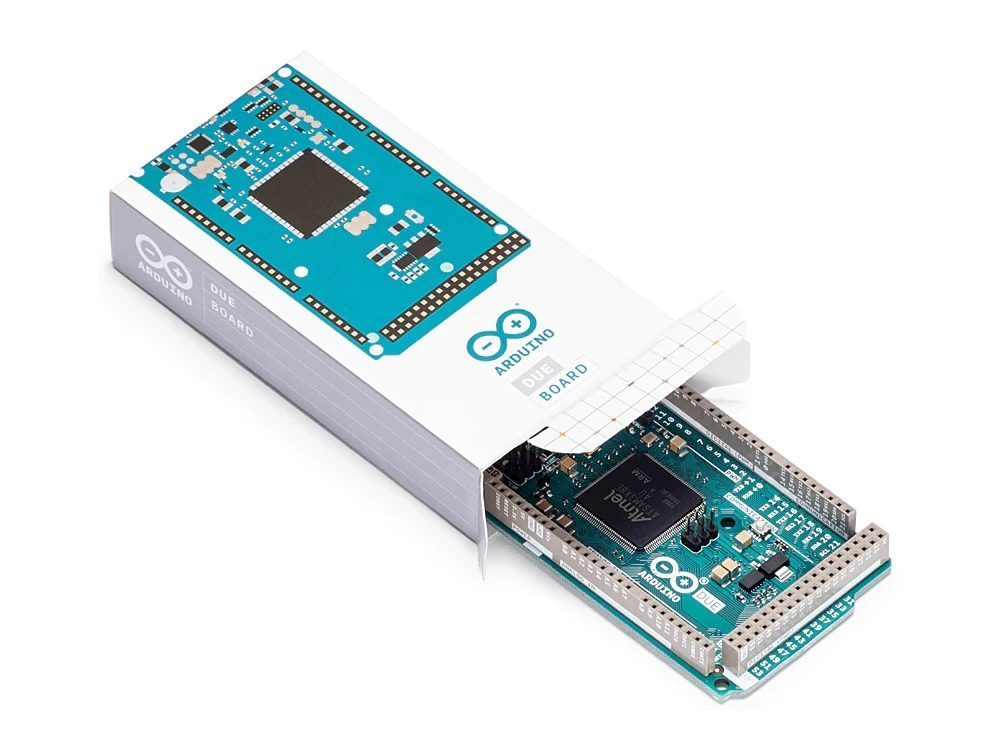

• 1 x Original Arduino Due Board

Useful Link :

• Getting Started with Arduino Due
