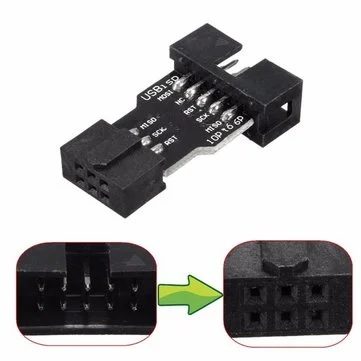

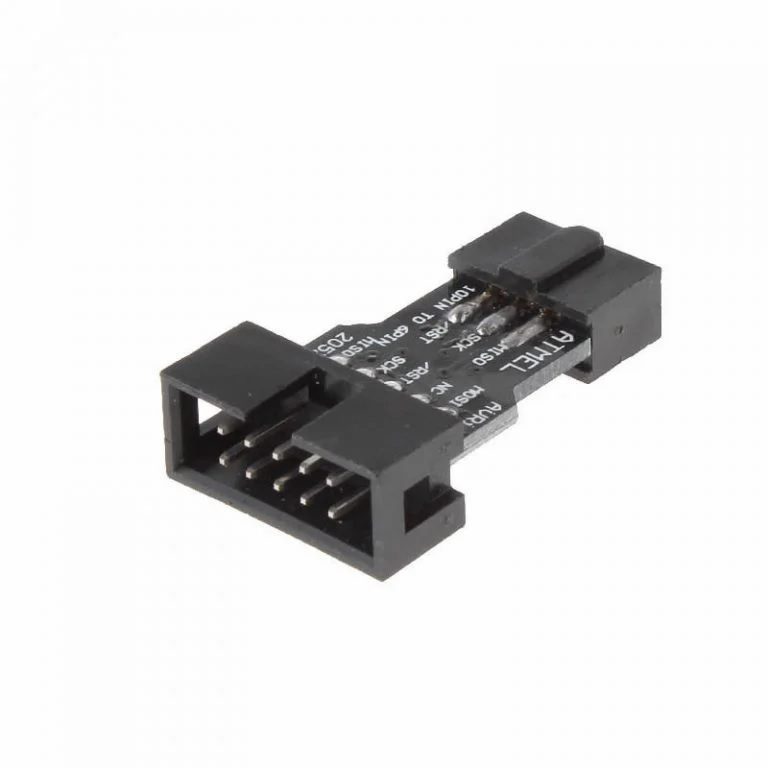

AVR ISP 10 Pin to 6 Pin Adapter Board

This is 10 Pin to 6 Pin Adapter Board for AVR ISP USBASP STK500. The standard 10 PIN  programmer can be used to interface to standard 6 PIN Interface Converter. AVR MCU development board can be used to download Interface Converter and also an Arduino development board can be used for the ISP interface converter.

Support Programmer :

• USBASP V2.0 (Not included with Adapter).
• USBASP V1.0 (Not included with Adapter).

Support Boards :

• Arduino UNO R3
• Arduino-Nano
• Arduino Leonardo
• Arduino-Pro mini
• Arduino-Lilypad
• Arduino Mega2560

Any other embedded microcontroller board with Atmel AVR microcontroller and 6-pin ISP port.

Features :

• Made of high-quality material, practical and durable
• No. of Pinon USBASP side: 10.
• No. of Pinon Device under programming side: 6.
• Connector type on USBASP side: Male.
• Connector type on Device under programming side: Female.
• Header Pin Pitch: 2.54mm (0.1in).
• Pin Numbers Text: Yes on Top and Bottom sides of every pin.

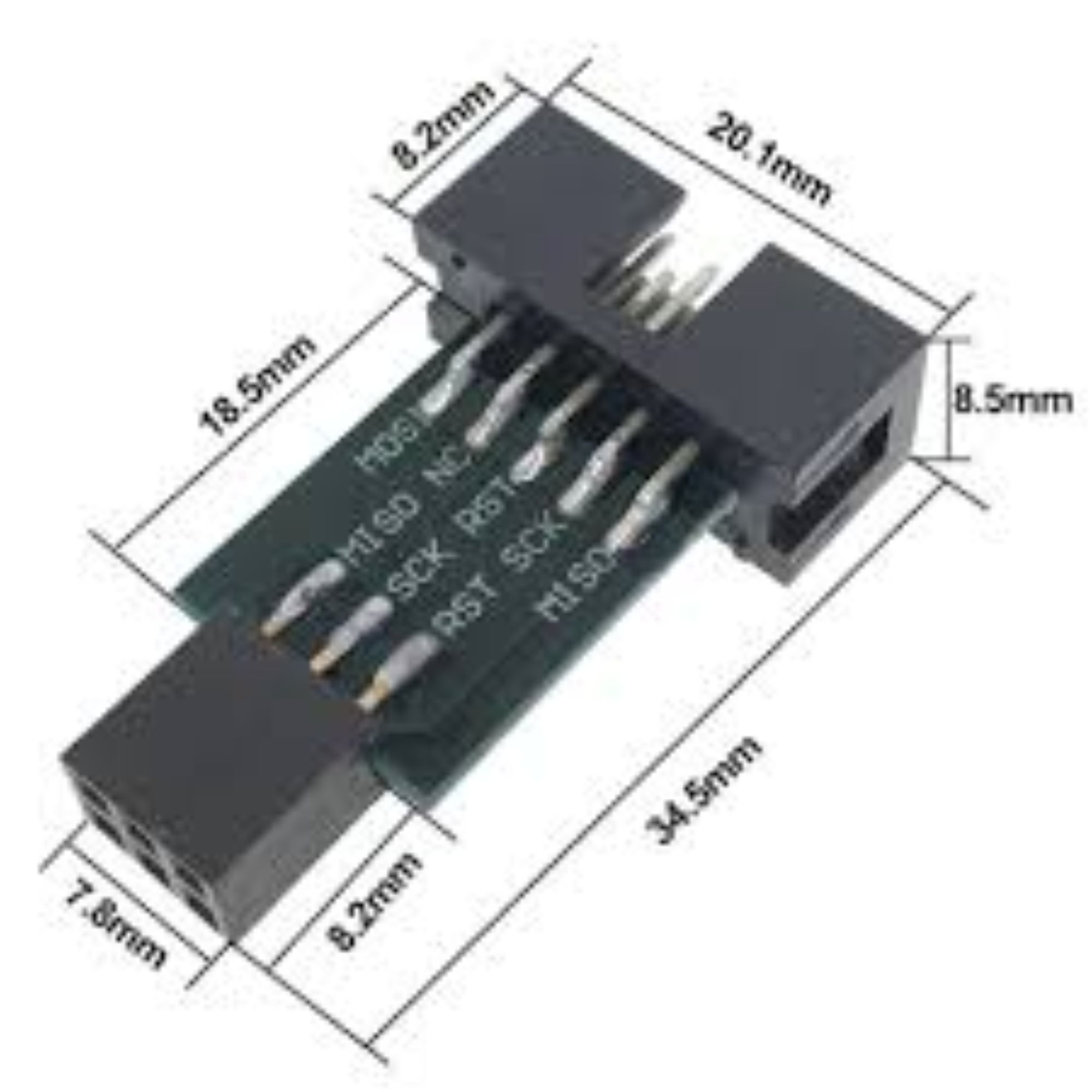

Specifications:

• Color: Black
• PCB Thickness(mm): 1.6
• Length (mm): 34
• Width (mm): 20
• Height (mm): 8
• Weight (gm): 3

Package Includes :

• 1 x AVR ISP 10 Pin to 6 Pin Adapter Board
