Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128×160 (Pixel)

Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128×160 (Pixel) is a lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

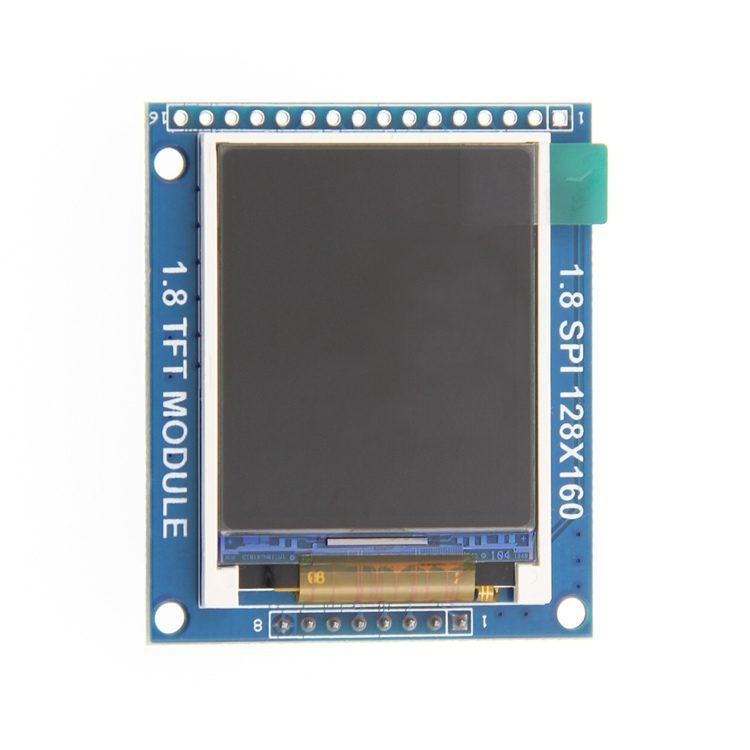

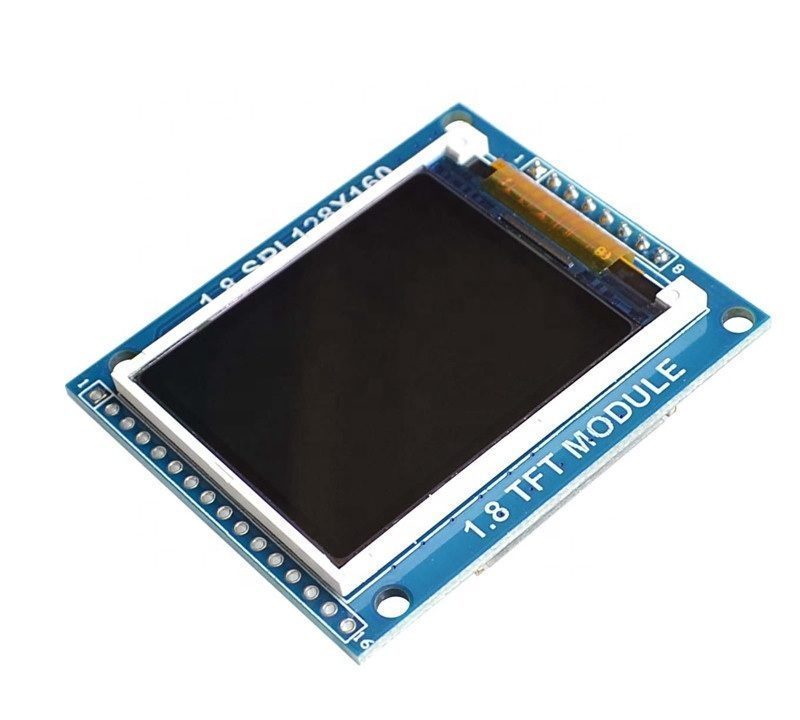

The 1.8″ display has 128×160 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!).

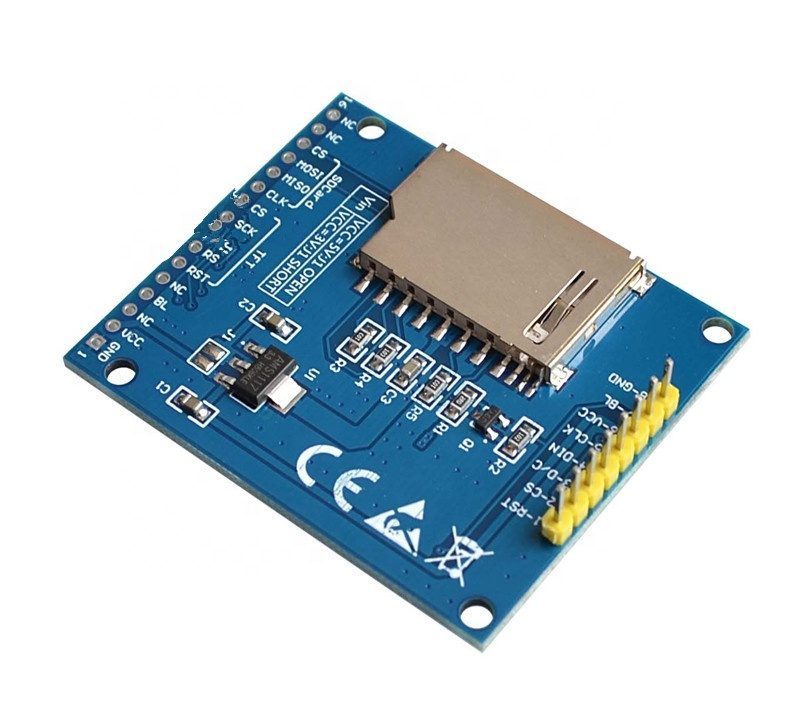

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. It features a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card.

Features :

• 1.8-inch color screen, support 65K color display, display rich colors
• 128X160 resolution, clear display
• Using the SPI serial bus, it only takes a few IOs to illuminate the display
• With SD card slot for convenient function expansion
• Compatible with the 3.3/5V operation voltage level.
• Compatible with QD-UTFT library for Arduino

Specifications:

• Color: 16BIT RGB 65K color
• Screen Size : 1.8(inch)
• Type: TFT
• Driver IC: ST7735
• Resolution: 128*160 (Pixel)
• Module Interface: 4-wire SPI interface
• Backlight: 2 White Led
• Active Area (AA area): 28.03×35.04 (mm)
• Module PCB Size: 44.96×53.47 (mm)
• Operating Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• VCC power voltage: 3.3V~5V
• Logic IO port voltage: 3.3V(TTL)
• Weight: 18 (g)

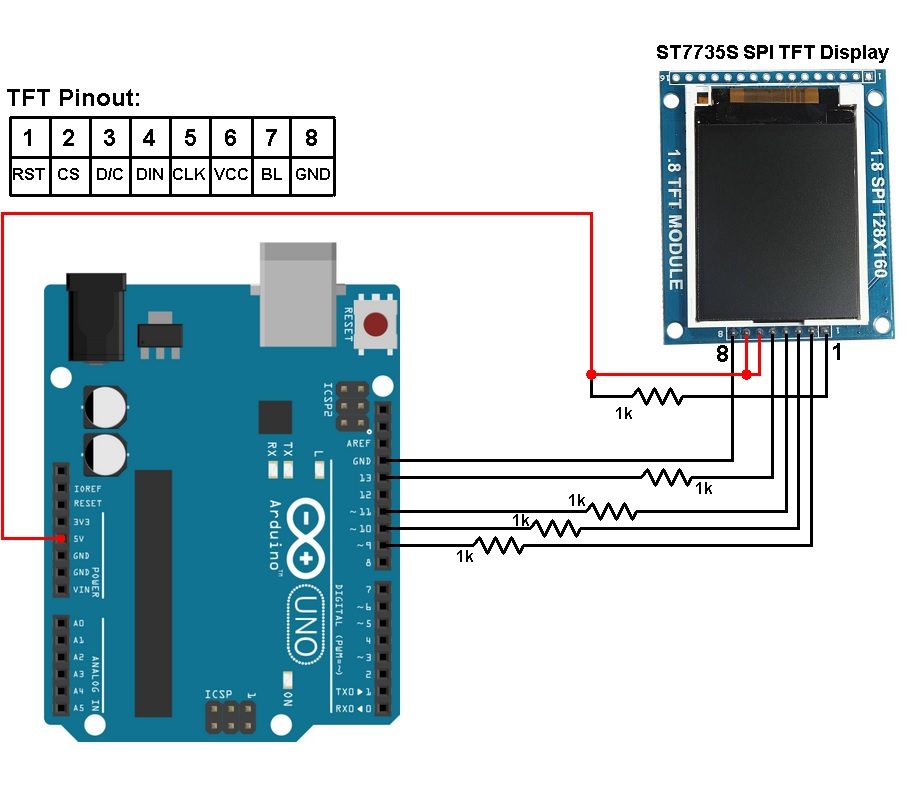

Pin Configurations:

1. RST: LCD reset signal, low level reset
2. CS: LCD chip select signal, low level enable
3. D/C: LCD register / data selection signal, : high level: register, low level: data
4. DIN: LCD SPI bus write data signal
5. CLK: LCD SPI bus clock signal

Package Includes:

• 1 x Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128×160
