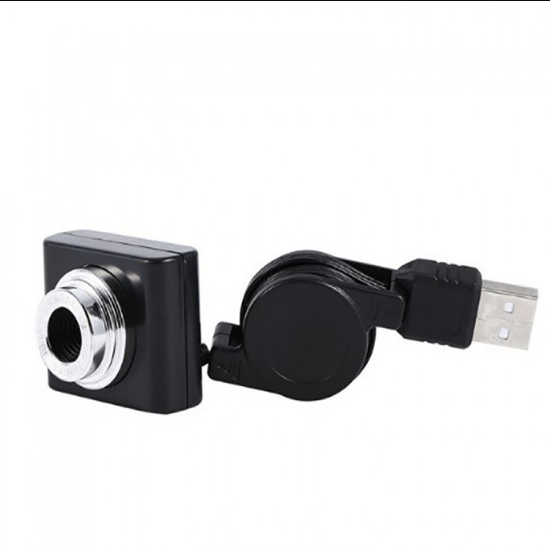

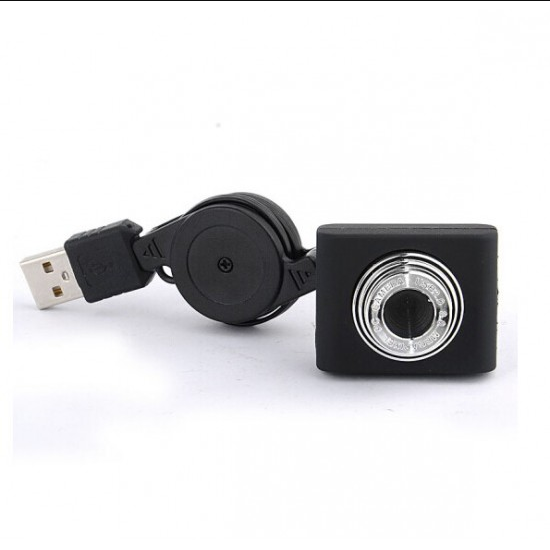

Cable Collapsible 8 Million Pixels 8MP USB Camera for Raspberry Pi
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil502-2Cable Collapsible 8 Million Pixels USB Camera for Raspberry Pi is a compact size and easy-to-carry one. With a retractable USB cable, it provides great convenience for use. It supports 8.0MP image and has a USB 2.0 port for convenient use, is really a plug-and-play device. Though small, its max resolution reaches 640 x 480. Thus, this camera is quite suitable for RPi smart cars, robots, etc.
Note: Compatible with all versions of Raspberry Pi.
Features:
- It allows for for superb, clear video conferencing, chatting, etc.
- Innovative design, comes complete with a built-in digital microphone so you can communicate clearly.
- Supports Up to 8.0MP image capture, a maximum resolution of 640×480, and VGA/ YUY2 packed formats
- Dimension: 40mm × 15mm × 30mm; designed for Raspberry Pi and PC
- With a retractable USB cable, convenient to store
- Applies USB 2.0 High-speed Sensor, plug-and-play, no driver installation
- High definition and true colour images.
- CE, Rohs compliant, windows and vista approval.
Specifications:
|
Sensor |
CMOS |
|
Resolution |
640HX480V |
|
Max pixels |
12M pixels by cd software |
|
Picture Format |
VGA |
|
Data Format |
YUY2 |
|
Interface |
USB2.0 |
|
Frames/S |
30fps (VGA), 15fps (XVGA) |
|
Min Lux |
6Lux |
|
S/N |
48dB |
|
Grey rank |
>8 |
|
Grey coefficient |
0.47 |
|
Lens |
5G lens F2.0/f3.60 |
|
Focus Range |
20mm to infinity |
|
View angle |
62 |
|
Monitor Control |
Contrast, saturation, acutance |
|
White Balance and Exposer |
White Balance: Manual/Auto White balance range: 2600K~5000K Exposure: Manual/Auto |
|
Operating Current |
<120 mA |
|
Operating Temperature |
Storage Temperature: -20 to +60° Working Temperature: 0° to +40° |
Package includes:
1 x USB Camera with Collapsible Cable for Raspberry Pi
