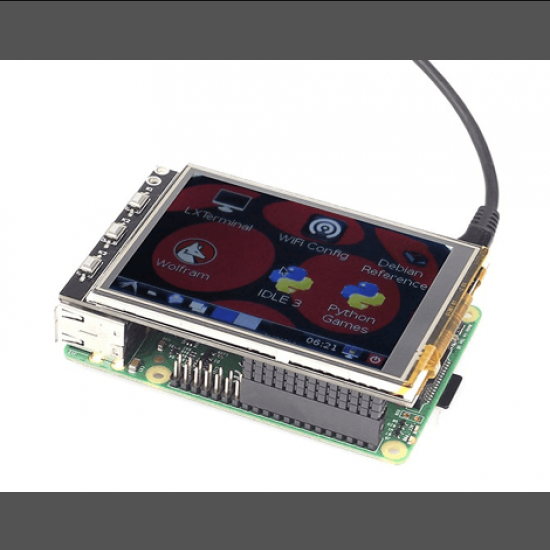

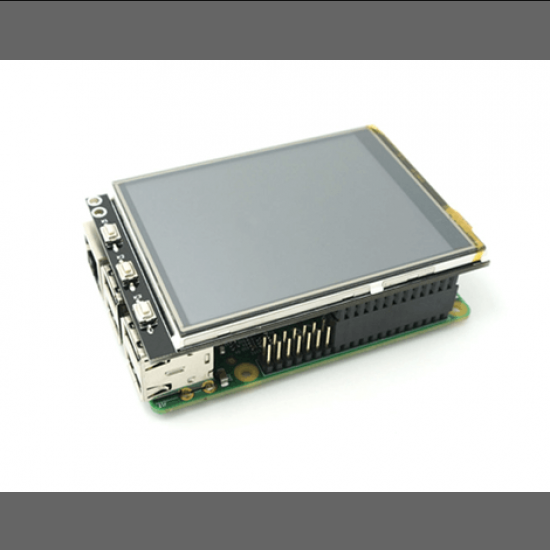

Waveshare 3.2 inch TFT Resistive Touchscreen Display for Raspberry Pi

Waveshare 3.2 inch TFT Resistive Touchscreen Display for Raspberry Pi is an ideal alternative solution for HDMI monitor. It supports any revision of Raspberry Pi and it can be directly plugged on to the RPi board, combined with the portable power this module is a convenient Men-Machine interface for Raspberry Pi.

Driver for the touch screen display is provided along with it so that it works with custom Raspbian directly. As it supports Raspbian system it could enable your Pi to play videos and take photos on just a touch. Additionally, it provides 17 different camera modes and support for software keyboard aiding system interaction without mouse or keyboard. The product comes in sporty outlook with high quality immersion gold surface plating.

Features

• 320x240 hardware resolution
• Resistive touch control
• Supports any revision of Raspberry Pi (directly-pluggable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali)
• Supports FBCP software driver as well, allows to config software resolution and set up dual-display
• Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
• 3 user keys
• High quality immersion gold surface plating
• Combined with the Raspberry Pi, allows you to:
• Take photos by touching (up to 17 camera modes)
• Use software keyboard (system interaction without keyboard/mouse)

Specification:

• LCD Type: TFT
• LCD Interface: SPI
• Touch Screen Type: Resistive
• Touch Screen Controller: XPT2046
• Colors: 65536
• Backlight: LED
• Resolution: 320*240 (Pixel)
• Aspect Ratio: 4:3
• Dimensions: 84.91x56.54 (MM)
• Weight: 0.071 kg
• Compatible with Raspberry Pi B, Raspberry Pi B+, Raspberry Pi 2 & Raspberry Pi 3

Pin Description:

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 22	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
12	KEY1	Key
13	RST	Reset
15	LCD_RS	LCD instruction control, Instruction/Data Register selection
16	KEY2	Key
