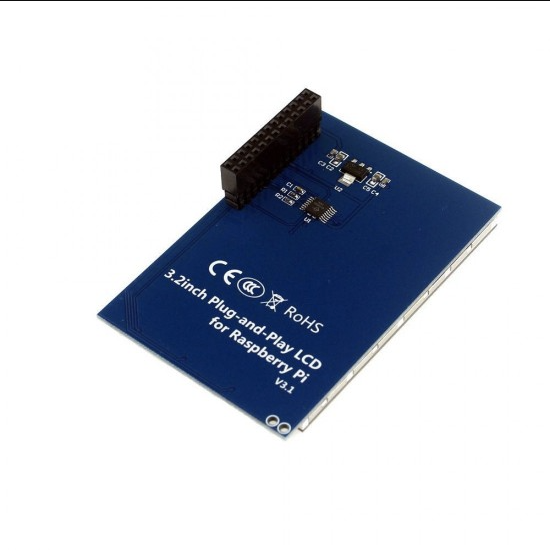

3.2 Inch TFT Touchscreen LCD Display for Raspberry Pi

This is a 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD. It is commonly compatible with Raspberry Pi 3 Model B/2/B+/A. This resistive touch screen TFT LCD designed to work directly with Raspberry Pi, Raspbian. A Touch pen is also included for effective touch interface. It supports on screen key board, it makes a stand alone system, no need of any external keyboard or mouse.

Features

• Designed for Raspberry Pi Model B/B , easy to use
• Compatible with Raspberry Pi A ,B,B /2.
• Supports Raspbian system, enables your system to:
• Play videos (supports multi formats, MP4 and so on)
• Take photos by touching (up to 17 camera modes)
• Support software keyboard (system interaction without keyboard/mouse)

Key Parameters:

• LCD Type : TFT
• LCD Interface : SPI
• Touch : Screen Resistive
• Touch Screen Controller : XPT2046
• Colors : 65536
• Backlight : LED
• Resolution : 320*240 (Pixel)
• Aspect Ratio : 4:3

Pin Description:

Pin No.	Symbol	Description
1, 17	3.3V	Power supply + (3.3V power input)
2, 4	5V	Power supply + (5V power input)
3, 5, 7, 8, 10, 22	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
12	KEY1	Button
13	RST	Reset
15	LCD_RS	LCD command control, command / data register select
16	KEY2	Button
18	KEY3	Button
19	LCD_SI/TP_SCK	LCD display / touch panel SPI data input
21	TP_SO	Touch panel SPI data input
