Cytron 20Amp 6V-30V DC Motor Driver MD20A

Name: Cytron 20Amp 6V-30V DC Motor Driver MD20A
Brand: Generic / Other
SKU: Anil715
Price: 1940.00 INR
Availability: OutOfStock

grade Be the first to review

SKU: Anil715 content_copy

Brand: Generic / Other

MRP: ₹2,509.00 Save ₹569.00 (23% OFF)

₹1,940.00 (Incl. 18.00% GST) Excl. GST: ₹1,644.07

error Currently Out of Stock

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹1,940.00

Regular

5 – 9 pcs

₹1,843.00

Save 5%

10+ pcs

₹1,746.00

Save 10%

Currently Out of Stock

This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil715

Component Title Cytron 20Amp 6V-30V DC Motor Driver MD20A

Part Number / SKU Anil715

Brand / Manufacturer Generic / Other

Category & Taxonomy DC Geared Motor Drivers

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

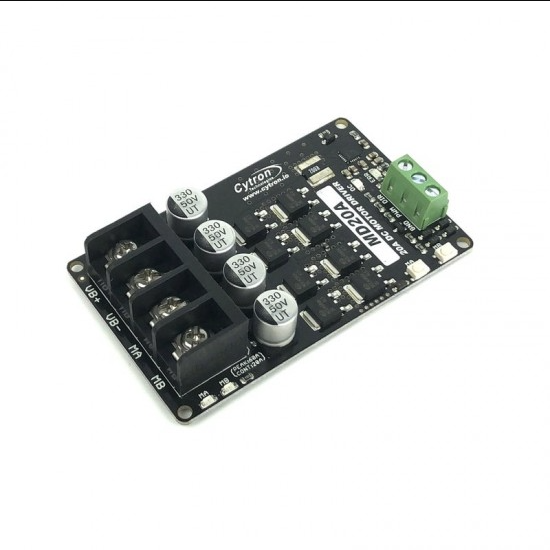

Cytron 20Amp 6V-30V DC Motor Driver MD20A

The MD20A enables bidirectional control of one high-power brushed DC motor from 6V to 30V. With discrete NMOS H-Bridge design, this motor driver is able to support 20Amp continuously without any heatsink.

The onboard test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way without hooking up the host controller. This motor driver can be controlled with PWM and DIR inputs. With input logic voltage range from 1.8V to 12V, it’s compatible with wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).

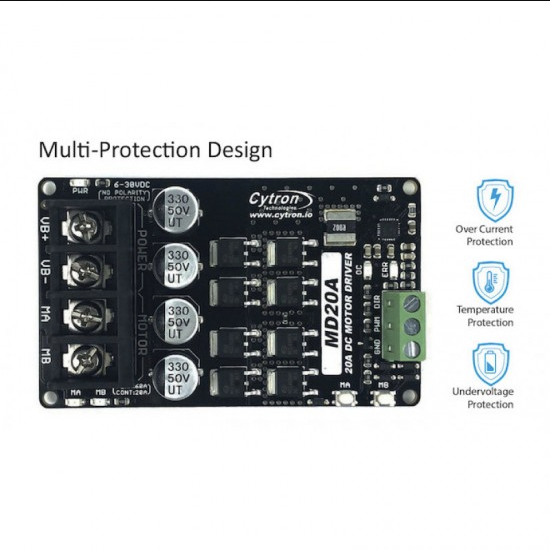

Various protection features are also incorporated in the MD20A. Overcurrent protection prevents the motor driver from damage when the motor stalls or an oversized motor is hooked up. When the motor is trying to draw current more than what the motor driver can support, the motor current will be limited at the maximum threshold.

Assisted by temperature protection, the maximum current limiting threshold is determined by the board temperature. The higher the board temperature, the lower the current limiting threshold. This way, MD20A able to deliver its full potential depending on the actual condition without damaging the MOSFETs.

Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously.

Features:

Bidirectional control for one brushed DC motor.
Operating Voltage: DC 6V to 30V
Maximum Motor Current: 20A continuous, 60A peak
Buttons for quick testing.
LEDs for motor output state.
PWM and DIR inputs.
Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc).
PWM frequency up to 20kHz (Output frequency is same as input frequency).
Compatible with sign-magnitude and locked-antiphase PWM operation.
Overcurrent protection with active current limiting.
Temperature protection.
Undervoltage shutdown.

Specifications:

Model	MD20A
Input Supply voltage (V)	6 ~ 30
Input Current (A)	20A continuous
Peak Current (A)	60
PWM Frequency	20 KHz
Length (mm)	86
Width (mm)	52
Height (mm)	18
Weight (gm)	43
