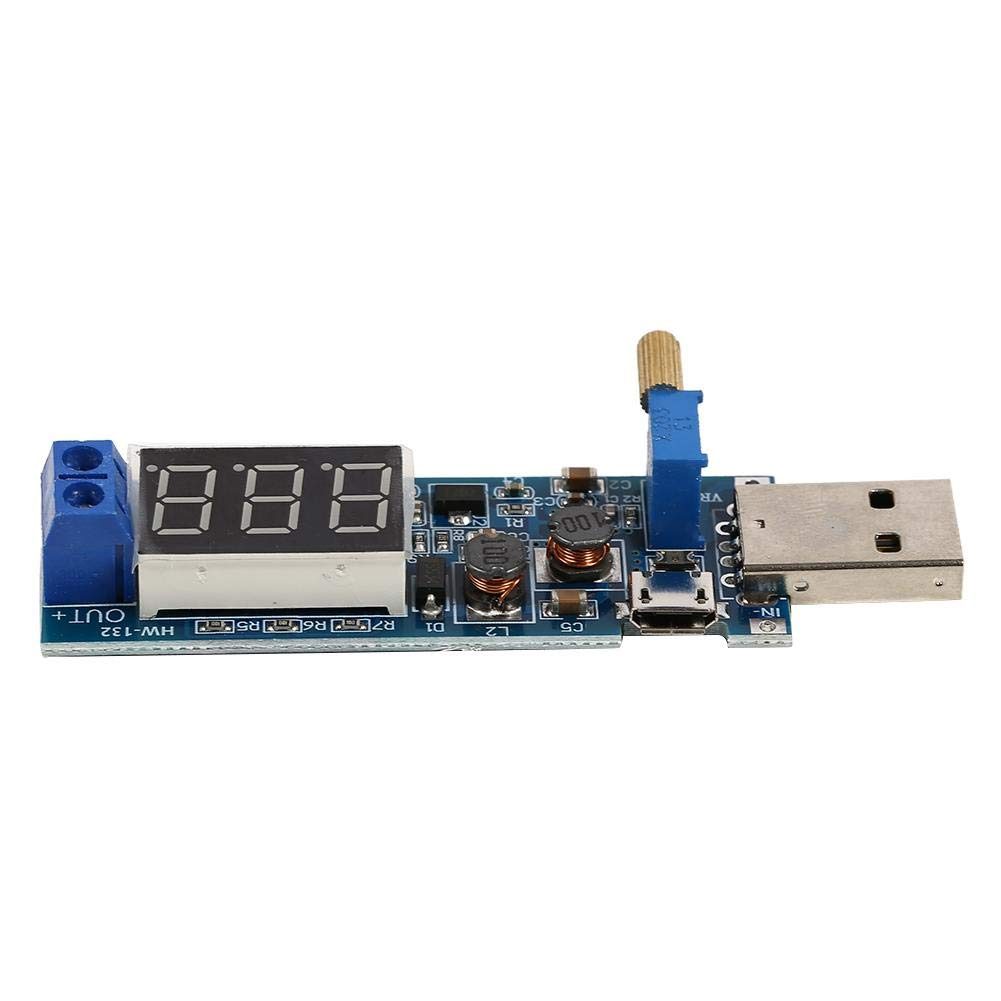

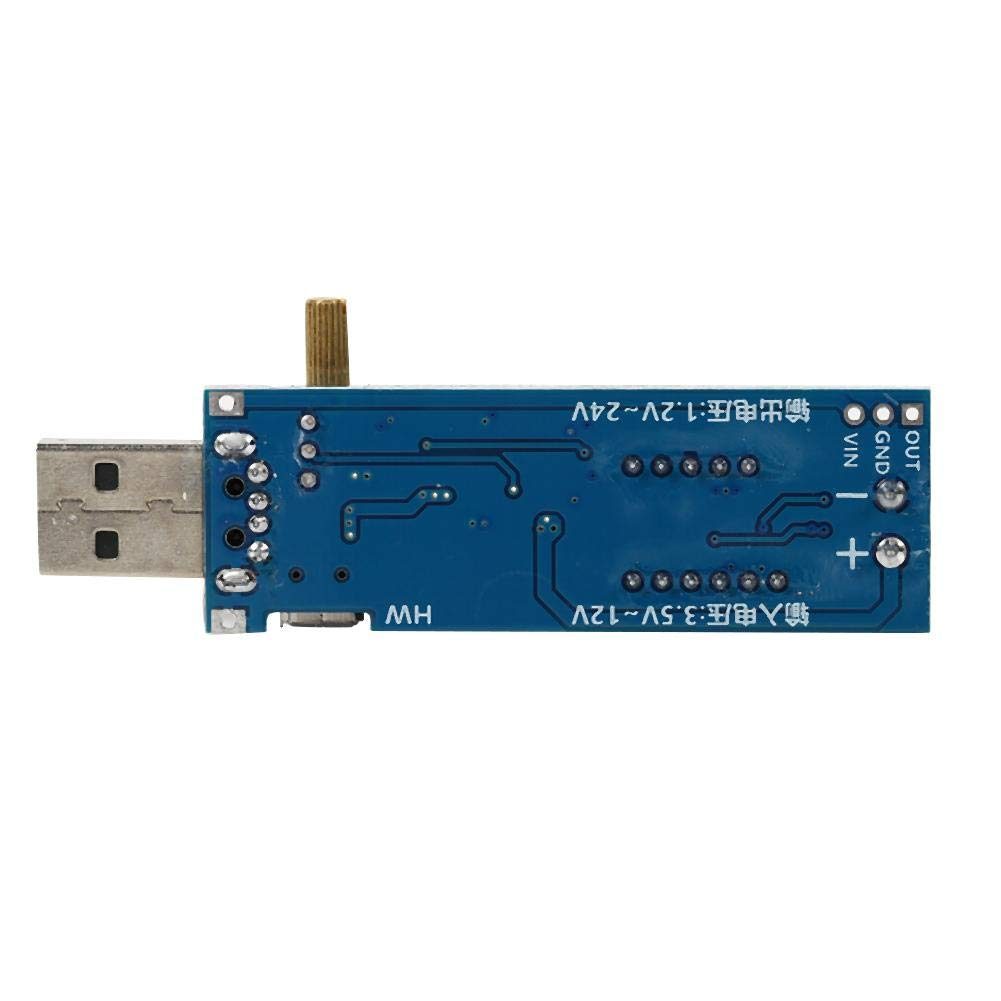

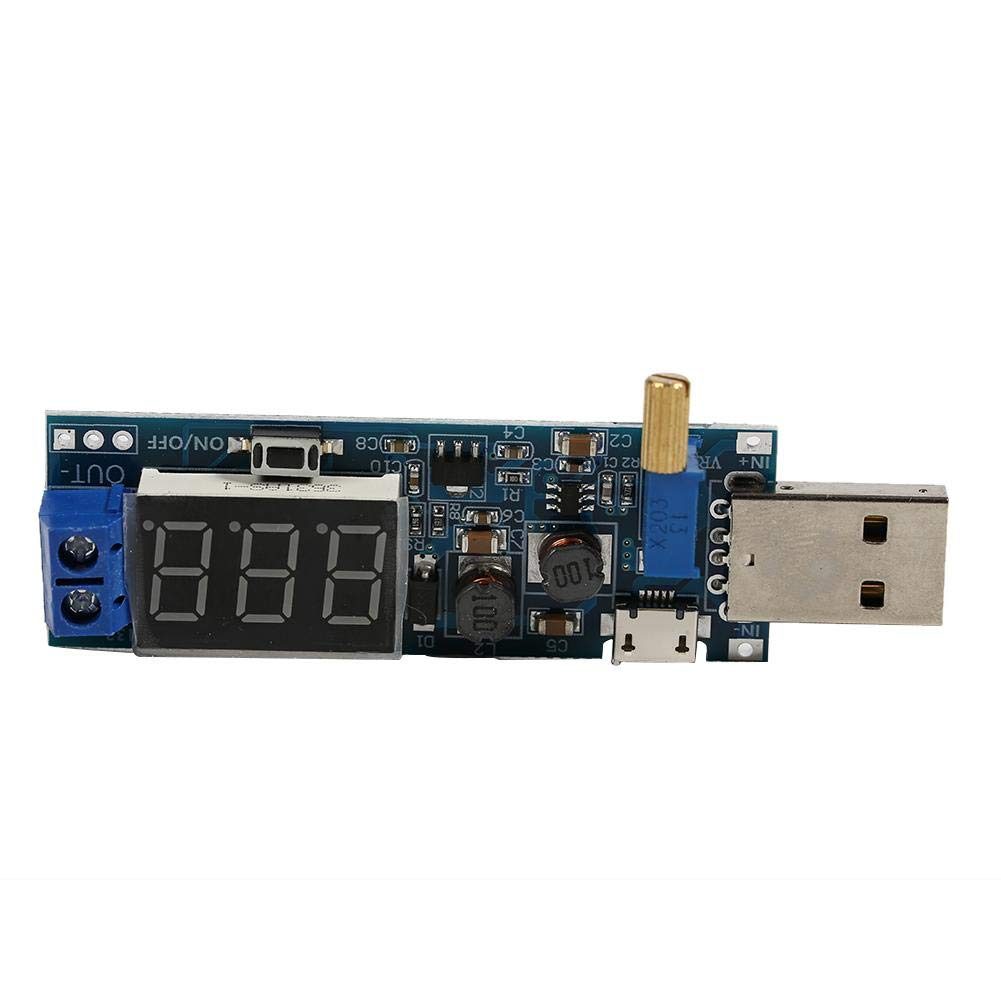

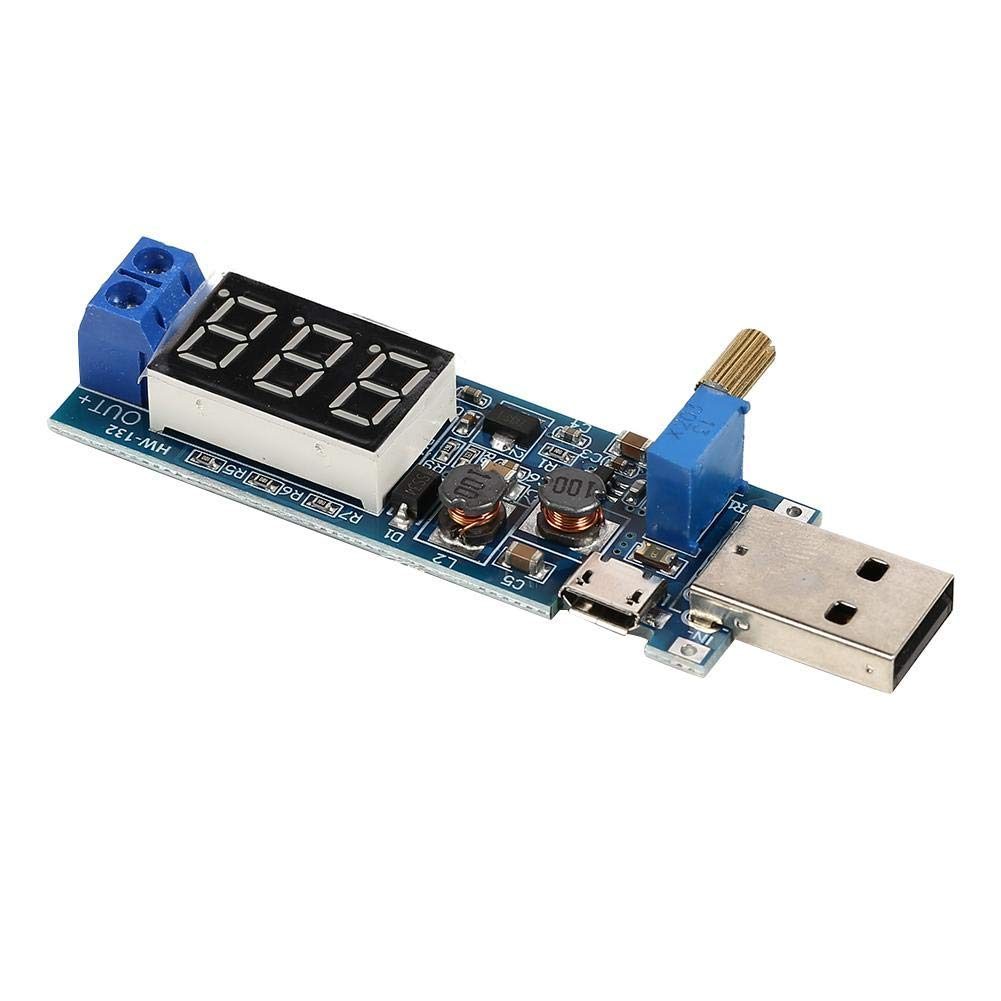

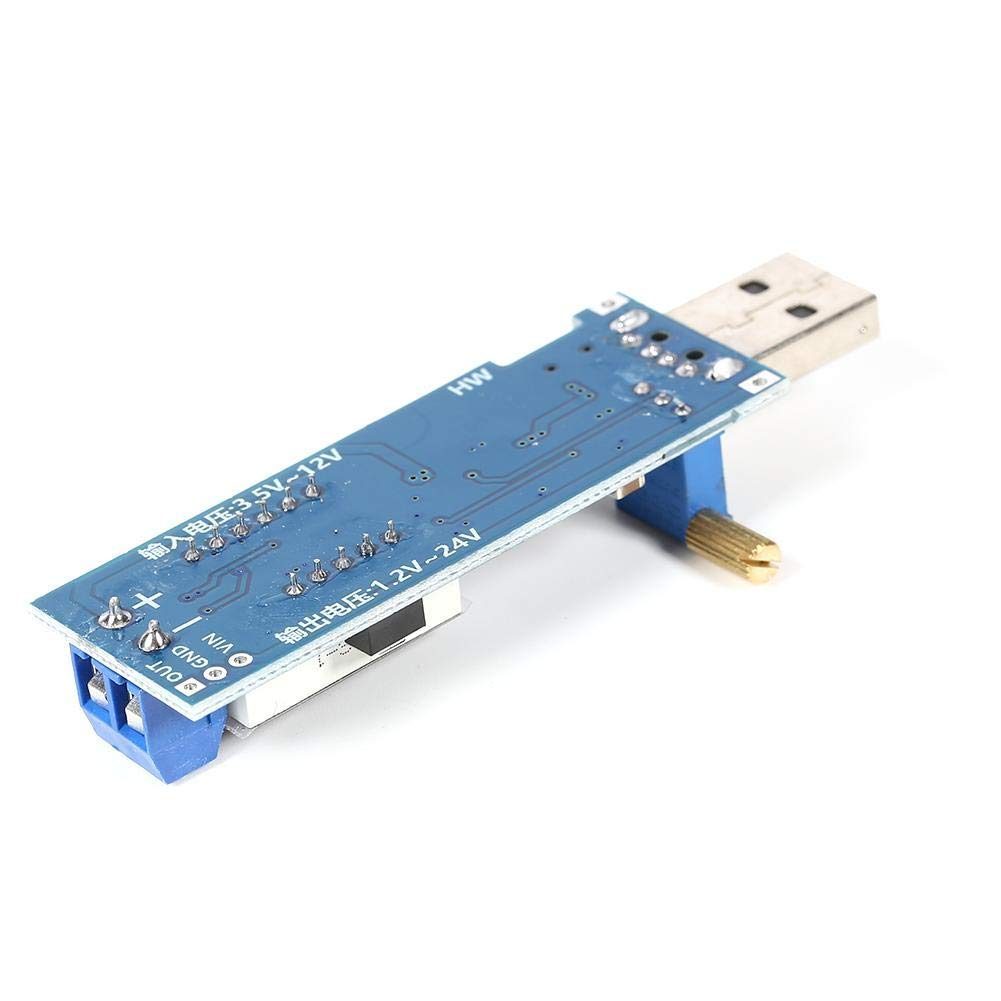

DC-DC USB 5V to 24V Boost Power Regulator Module

This DC-DC USB 5V to 24V Boost Power Regulator Module power supply is very convenient to use. You can output 1.2V to 24V adjustable voltage and 3W power as long as you plug in USB or micro USB. It is very suitable for technical engineers to develop, debug and repair instruments. After-sales engineers are on business to supply power to instruments and meters. It is very convenient.

Features:

• Easy to use, plugin USB or micro USB to output 1.2V-24V adjustable voltage.
• Turn off the output with one key.
• The digital tube can be turned off.
• Using a multi-loop precise adjustable potentiometer to regulate
• Power-off storage before power-off.

Specifications:

• Input voltage: 3.5-12V
• Output Power: Input 1.2V-2V, Output Power within 2W, : Input 2V-20V, Output Power within 3W, : Input 20V-24V,Output Power within 2.5W
• Display: 7 Segment Display
• Output Voltage: 1.2-24V
• Length (mm): 80
• Width (mm): 25
• Height (mm): 12
• Weight (gm): 15

Note:

• Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’
• Turn ON display screen
• Adjust the potentiometer to get the required voltage
• Connect load.

Package Includes:

• 1 x DC-DC USB 5V to 24V Boost Power Regulator Module
