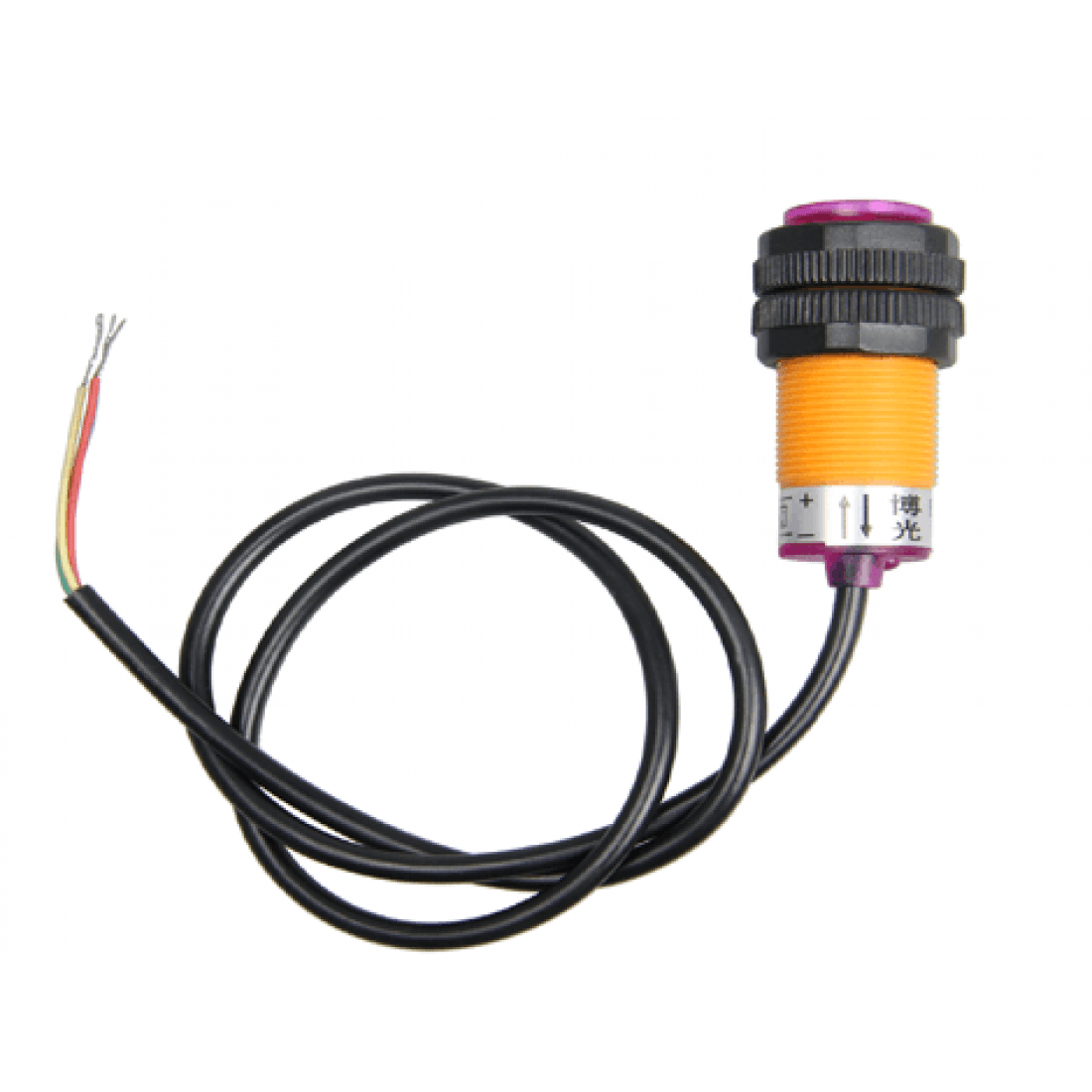

E18-D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm PNP Type
grade
Be the first to review
SKU: ANIL2029
content_copy
Brand:
Generic / Other
₹183.00
(Incl. 18.00% GST)
Excl. GST: ₹155.08
In Stock (5 units ready to dispatch from Ahmedabad Hub)
receipt_long
GST Invoice with ITC Claim
inventory
Wholesale & Volume Pricing
Click tier to auto-select
1 – 4 pcs
₹183.00
Regular
5 – 9 pcs
₹173.85
Save 5%
10+ pcs
₹164.70
Save 10%
Qty
pin_drop
Check Delivery & Shipping SLA
Free Shipping > ₹2,000
local_shipping
Dispatches in 24h
From Ahmedabad Hub
verified
100% Genuine Part
Tested & Quality Checked
receipt_long
GST B2B Invoice
Input Tax Credit Eligible
support_agent
7-Day Support
Easy Defect Replacement
memory Technical Parameters & Datasheet Summary
SKU: ANIL2029
Component Title
E18-D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm PNP Type
Part Number / SKU
ANIL2029
Brand / Manufacturer
Generic / Other
Category & Taxonomy
Distance or Proximity Sensors
Applicable GST Rate
18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)
Packaging Protection
Anti-Static Moisture Barrier Shielding Bag (ESD Protected)
Dispatch Hub
Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India
Datasheet & Queries?
chat
Ask an Application Engineer on WhatsApp
The E18-D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm PNP Type is a set of transmitter and receiver with PNP configuration in one of the photoelectric switch sensor. The detection distance can be adjusted acco...
The E18-D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm PNP Type is a set of transmitter and receiver with PNP configuration in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.
The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.
The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.
Features :
- Diffuse reflective type.
- Digital output.
- Adjustable detection distance.
- Low consumption.
- Comp
- Very Small in size
- Less influence on the color of reflected objects, reflectivity
- Industrial grade quality
- Can detect colour difference from certain range
- TTL output high whenever sensor senses a obstacle
- Detecting distance of 3cm to 80cm
- External control circuit unnecessary
- Low cost
- Has inbuilt lenses assembly and potentiometer to set range of the module
- Output indication LED act size.
Specifications:
- Light source: Infrared
- Sensing Range: 3cm to 80cm
- Input Voltage (V): 5
- Current Consumption: 100mA
- Dimensions (Dia.xLength.) mm, Weight (gram): 17×50, 50 grams
- Cable Length: 1 Meter
Connection
- Red wire: +5V
- Green wire: GND
- Yellow wire: Digital output
OR
- Brown wire: +5V
- Blue wire: GND
- Black wire: Digital output.
Package Includes :
- 1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.
