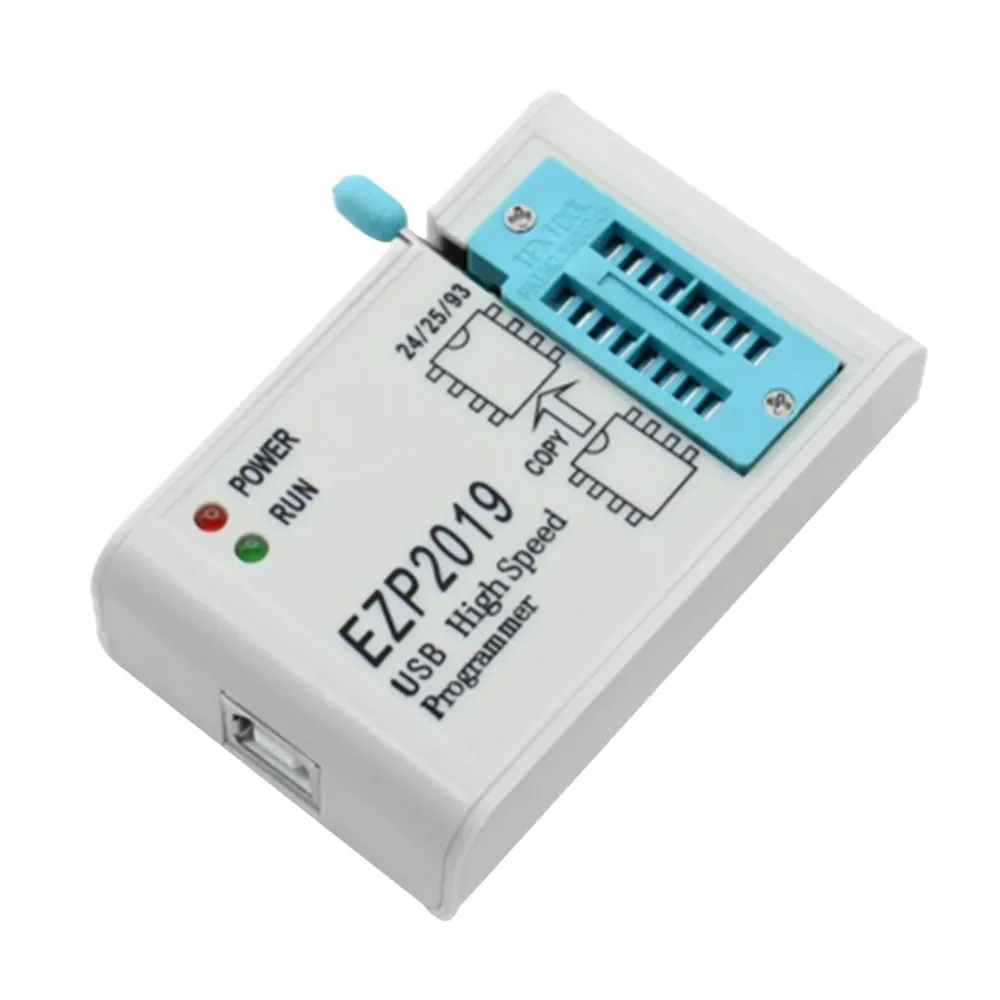

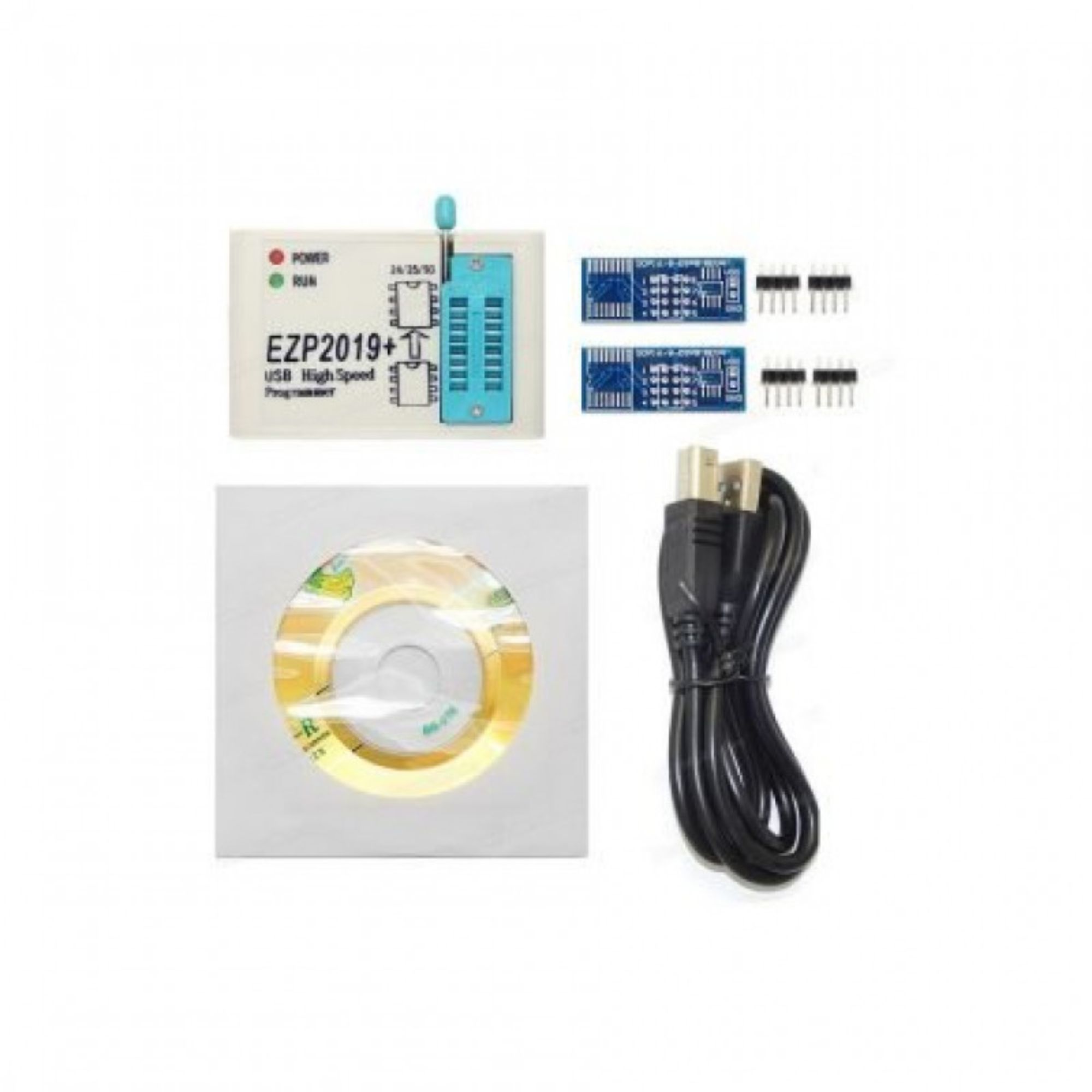

EZP2019+ High Speed USB SPI Programmer Support 24/25/26/93 Series Chip EEPROM Flash Bios Standard configuration

This is EZP2019+ High Speed USB SPI Programmer Support 24/25/26/93 Series Chip EEPROM Flash Bios Standard configuration.

USB 2.0 interface, up to 12 MBPS. Read and write is super fast, read EN25T80 as long as three seconds, write EN25T80 only in 9 seconds, the fastest is currently on the market the BIOS chip programmer. The automatic identification of chip. Automatically detect whether chip. Automatic selection chip power supply voltage.6. Automatic offline copy.To fully support block 24 EEPROM, 25 flash 93 EEPROM, etc.9. Appearance is compact, easy to carry, and ordinary cards about the size. work system: WIN7 WIN8.

Features:

• Appliance repairing: suitable for the appliance repairing industry to flash colour TV, DVD, computer motherboard, hard disk memory chips.
• Product development: the test chip is programmed during the company’s product development process.
• Factory mass production: the fully automatic offline copy function is especially suitable for factory batch burning of memory chips.
• USB 2.0 interface, speed up to 12Mbps.
• The reading and writing speed is fast. It takes only 3 seconds to read EN25T80 and 9 seconds to write EN25T80. It is the fastest BIOS chip programmer on the market.
• Automatic identification of the chip model.
• Automatically check if the chip is placed.
• Automatically select the chip supply voltage.
• Automatic offline copy.
• Support PC software and programmer firmware upgrade.
• Full support for 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM and other memory chips.
• Small size, easy to carry, and almost the same as a regular business card.

Specifications:

• Item Type: EZP2019+ Programmer
• Material: ABS+PCB
• USB Interface: USB 2.0 interface
• Supported: 24/25/26/93 series chips
• Programmer size: 71 * 44 * 19mm
• Programmer weight: 37g

Note:

• 1. To download the ZIP folder, click on this link section.
• 2.  To run on WIN10, you need to install the drivers. Please click on “Video”  in mage section and follow all instructions on how to install the drivers and how to use the application.
