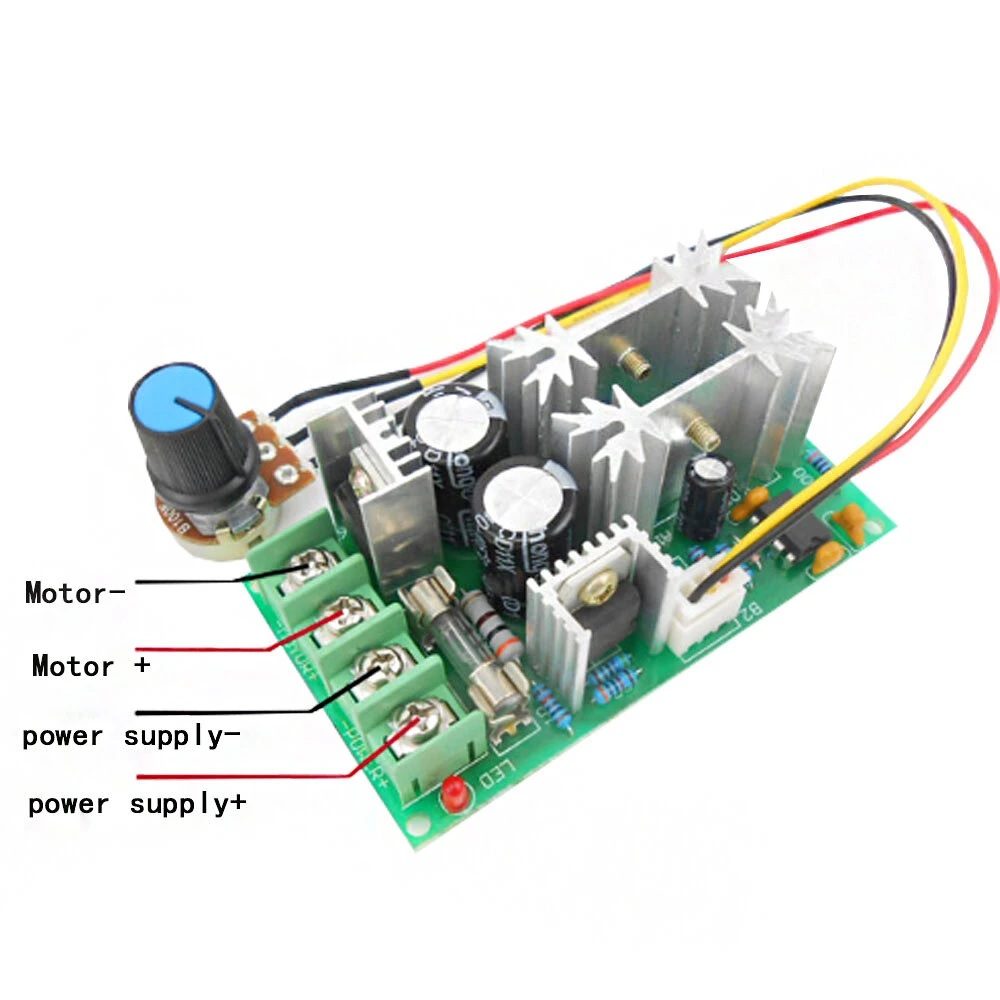

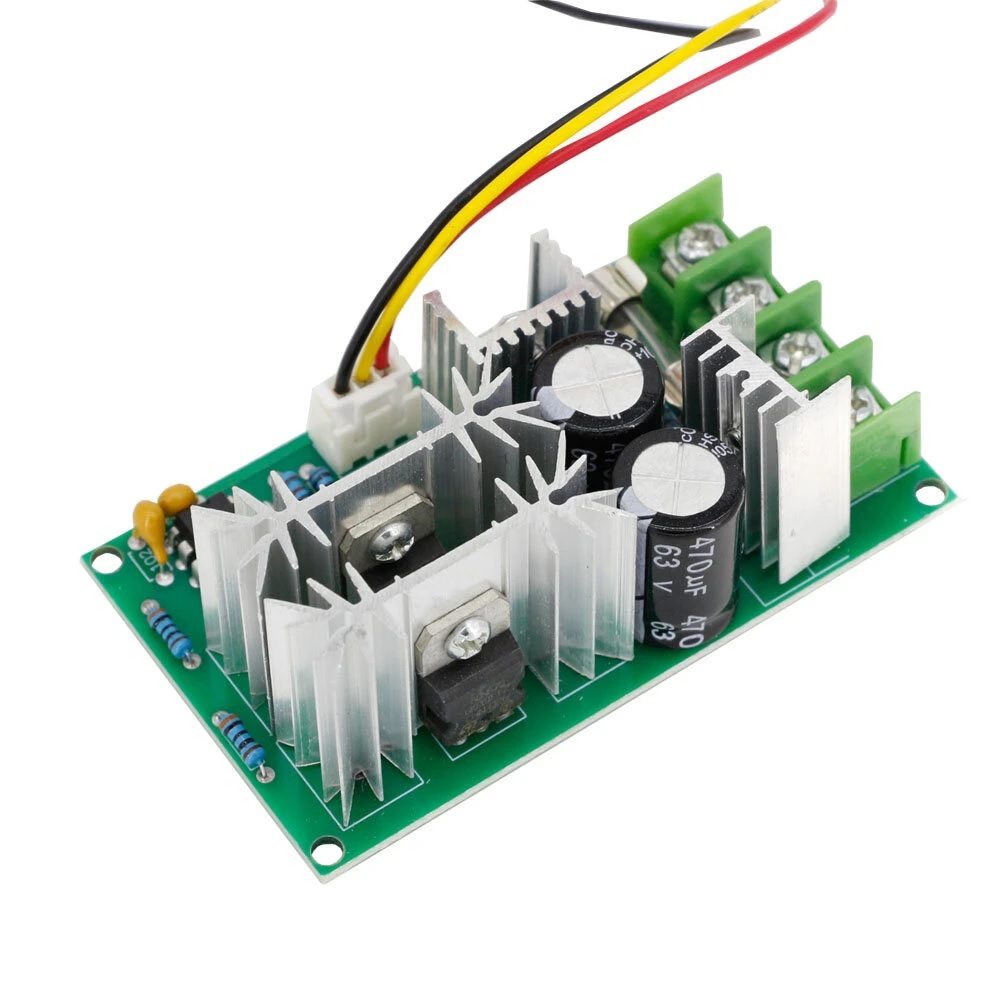

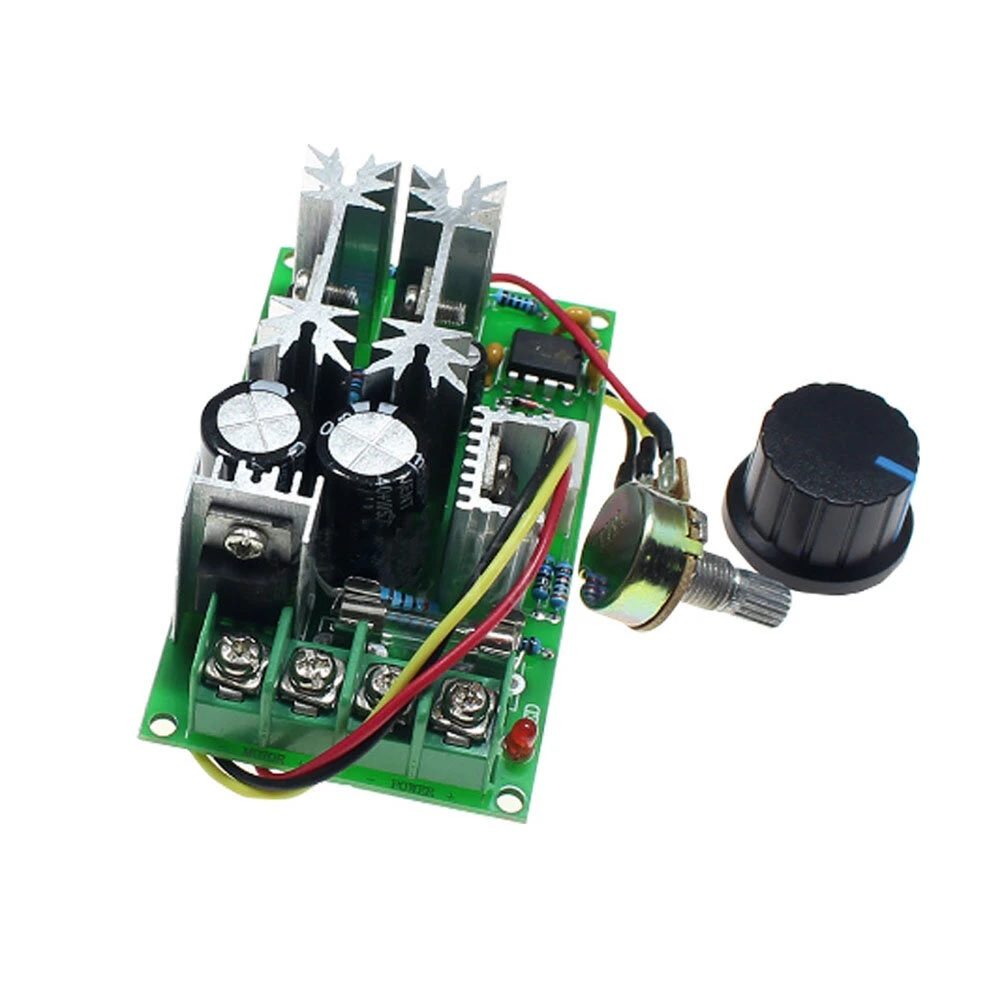

DC 10-60V 20A 1200W Motor Speed Control PWM Motor Speed Controller

DC 10-60V 20A 1200W Motor Speed Control PWM Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 0-20A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment. It uses a linear potentiometer as a speed regulation method. The 1200W speed regulator uses a barrier terminal block as it’s wiring type. The output voltage is linear under load and features a control frequency of 25KHz.

Specifications:

• Input Supply Voltage (V): DC 10-60V
• Output voltage: linear under load
• Output Current (A): 0-20A
• Continuous Power: 1200W
• Speed regulation type: flow regulation
• Speed regulation method: potentiometer (linear)
• Speed adjustment range: 0-100%
• Control frequency: 25KHZ
• Wiring type: Barrier terminal block
• Knob specifications: 97
• Dimensions (LxWxH): 77*45*28mm
• Weight (grams): 74 grams

Package Includes:

• 1 x DC 10-60V 20A 1200W Motor Speed Control PWM Controller
