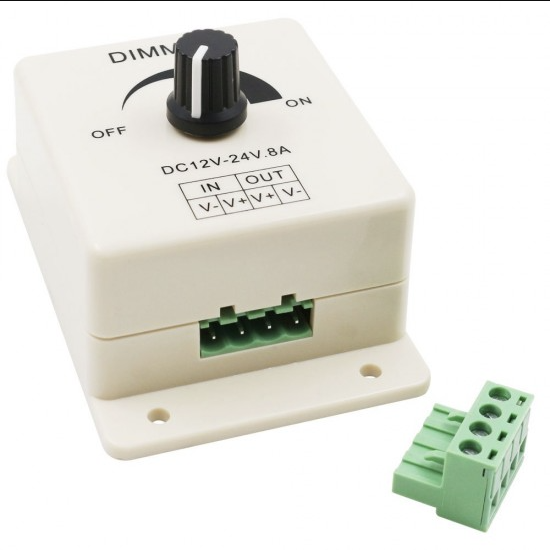

12V-24V DC 8A Adjustable Manual Knob Dimmer Switches For Single LED Strip
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil597-212V-24V DC 8A Adjustable Manual Knob Dimmer is a controller that can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. With a maximum load of 8 Amps, this LED dimmer can be used with constant voltage 12V to 24V LED devices. It also offers continuous single channel dimming from 100% full brightness to 20% without flickering. A small footprint makes the LED dimmer deal for use in display cases and in architectural and cove lighting applications.
- 0~100% brightness adjustable
- Easy to install and simple to use
- Adjust the light soft and stable, no flickering.
- PWM digital dimming, avoid rush current, protect your LED lights
- Mainly use to adjust single color LED light lamps and Led Strip.
- Constant voltage and constant current output, can be connected with amplifiers to extend its load.
|
Model Type |
12V 8A Dimmer |
|
Input |
DC12-24V |
|
Output |
1 Channel 96W 12-24V (0-8A ) |
|
Static power consumption |
1W |
|
Dimension(L x W x H) |
Approx. 88 x 60 x 56mm |
|
Working Temperature |
-20~60°C |
|
Weight (gm) |
75g |

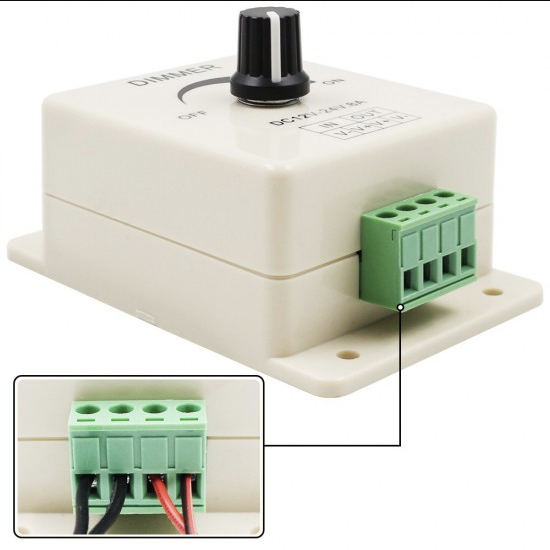

- Connect the Load wire at first, following by the power wire. Please ensure short circuit can net occur between connecting wire before you turn on the power.
- Adopt rotary button, it's function as follows:
- Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
- Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
- You can conveniently adjust the brightness of your LED bulbs/Led Strip with this dimmer led Dimmer is a controller that it can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need, Perfect tools for most lighting purpose.
Package Includes:
- 1 x 12V-24V DC 8A Adjustable Manual Knob Dimmer Switches For Single LED Strip
