20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

Name: 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)
Brand: Generic / Other
SKU: Anil599-2
Price: 315.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil599-2 content_copy

Brand: Generic / Other

MRP: ₹715.00 Save ₹400.00 (56% OFF)

₹315.00 (Incl. 18.00% GST) Excl. GST: ₹266.95

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹315.00

Regular

5 – 9 pcs

₹299.25

Save 5%

10+ pcs

₹283.50

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil599-2

Component Title 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

Part Number / SKU Anil599-2

Brand / Manufacturer Generic / Other

Category & Taxonomy Speed Controller Modules

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

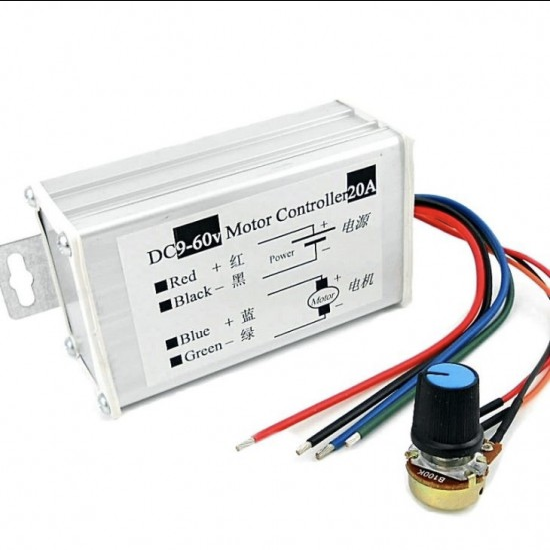

The 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) is suitable for the DC brushed motor (or DC load) within 20A. It comes with the metal shell and connective label, which makes it very easy to install and use.

It has potentiometer with adjust speed switch function, and button switch function.

Features :

Adjustable speed range: 0%-100%.
Speed adjustment way: Potentiometer.
Output voltage: Linear under load.
Speed control type: Basins.
Output voltage: Load Linear
Type: Adjusting flow
The motor running condition adjustment: Forward / Stop / Reverse
Reverse polarity protection: Yes.
Suitable Motor: DC brush motors.

Specifications:

Driver Model	20A PWM DC Motor Speed Regulator
Operating Voltage (VDC)	9 ~ 60
Peak Current (A)	20
Continuous Current (A)	18
Continuous power	1200W
PWM frequency	25KHz.
No. of Channels	1
Battery Protection Mode	No
Thermal Protection	Yes
LED Indicator	Yes
Cable Length (cm)	13
Cooling Fan	No
Arduino Shield	No- can be used with Wire connection
Speed Control	Yes
Polarity Protection	Yes
Dimensions in mm (LxWxH)	90 x 50 x 35
Weight (gm)	135

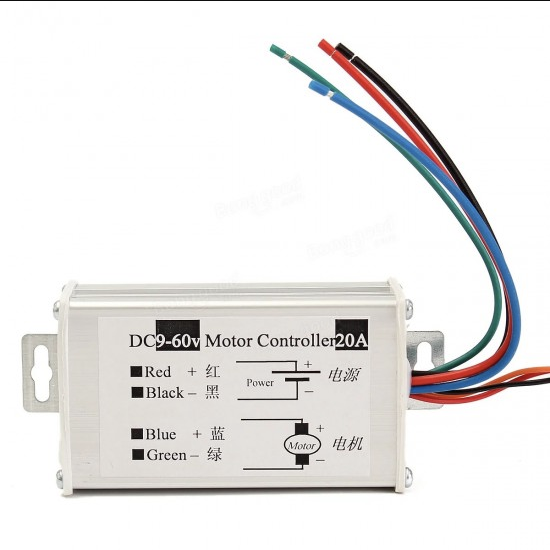

Connection Terminals:

Red Line: Power +
Black Line: Power –
Blue Line: Motor+
Green Line: Motor –

Note :

Before you attempt to wire the controller, make sure power is off.

Warning :

DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the “wiring diagram”.
2. Turn on the power.
3. Adjust the potentiometer.

Package Includes :
