Does DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A come with a GST invoice?

Yes, every order from Anil Electronic Store includes a valid GST invoice. You can use it for business expense claims and Input Tax Credit (ITC).

What is the delivery time for DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A in India?

Orders placed before 3 PM are dispatched the same day. Delivery takes 3 to 7 business days. We deliver across 19,000+ pin codes in India.

Is DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A original and authentic?

Yes. All products at Anil Electronic Store are 100% original, sourced directly from authorized distributors and manufacturers.

What is the return policy for DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A?

We offer a 7-day return policy. Items must be unused and in original packaging. Contact us within 7 days of delivery to initiate a return.

home Home / Voltage Regulator Modules / Speed Controller Modules / DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A

-20% OFF Ready to Dispatch

folder_open Speed Controller Modules

DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A

Name: DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A
Brand: Generic / Other
SKU: Anil590-2
Price: 245.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil590-2 content_copy

Brand: Generic / Other

MRP: ₹305.50 Save ₹60.50 (20% OFF)

₹245.00 (Incl. 18.00% GST) Excl. GST: ₹207.63

In Stock (2 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹245.00

Regular

5 – 9 pcs

₹232.75

Save 5%

10+ pcs

₹220.50

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil590-2

Component Title DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A

Part Number / SKU Anil590-2

Brand / Manufacturer Generic / Other

Category & Taxonomy Speed Controller Modules

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

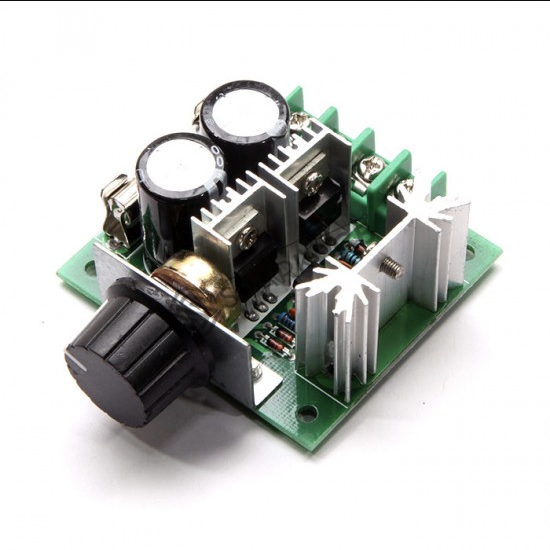

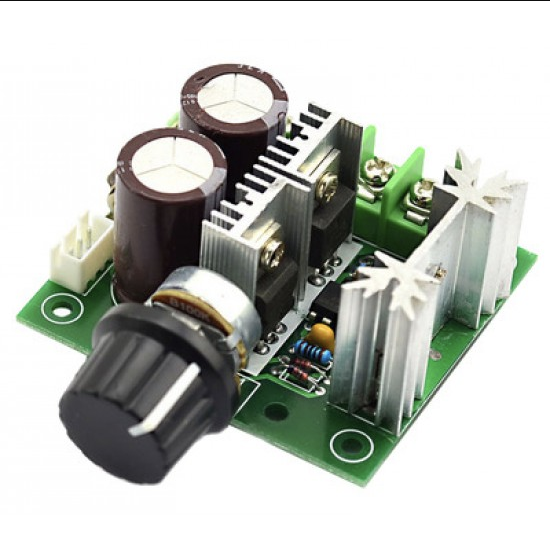

DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A

The DC Motor Speed Control Regulator Pulse PWM 12V-40V 10A allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.

The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.

Features:

Control the speed of a DC motor with this controller
High efficiency, high torque, low heat generating
With reverse polarity protection, high current protection
Low heat generating control the speed of a DC motor with this controller with reverse polarity protection,
High current protection working voltage

Specifications:

PWM Module Type	PWM 12V-40V 10A
Input Supply Voltage	12V - 40V
Control Power	0.01 - 400W
Static Current	0.02 A ( Standby )
Maximum Current	10A
PWM Duty Cycle	10% -100%
PWM Frequency	13 KHz
Size (L x W x H )	75 x 60 x 28 mm
Material	Plastic, metal
Weight	70 gm

Note:

This can NOT be used to the BRUSHLESS motor.
The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and For always turn off the power supply before making any wiring changes.

Package Includes:
