1.8V – 12V/2A DC Motor PWM Speed Regulator

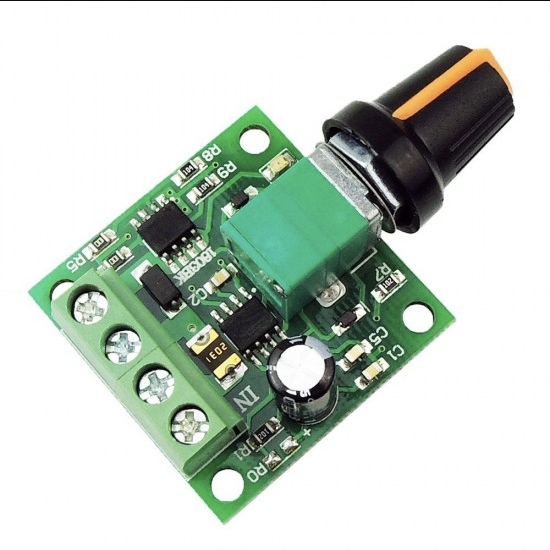

The DC Motor PWM Speed Regulator 1.8V, 3V, 5V, 6V, 12V-2A speed control switch function for DC Motors allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.

The motor speed controller can easily provide a continuous current of 2A to your DC motor or other DC load. This motor speed controller allows controlling the direction of a DC motor using a pulse-width-modulated (PWM) DC voltage.

With a resettable fuse, it can automatically break the connection and automatically recover. With a LED indicator and a rotary switch, convenient to use.

Features :

Output current : 2A(Max).
With resettable fuse.
Equipped with LED indicator.
Potentiometer with switch function for PWM adjustment.

Specifications:

Input Voltage Range	1.8V- 15V DC
The maximum output power	30W
Output current	2A (Max).
Duty Cycle adjustable	5%-100%
Diameter of PCB holes	3mm
Pitch of screw terminal block	5.08mm
Weight (gm)	16

Operating instruction:

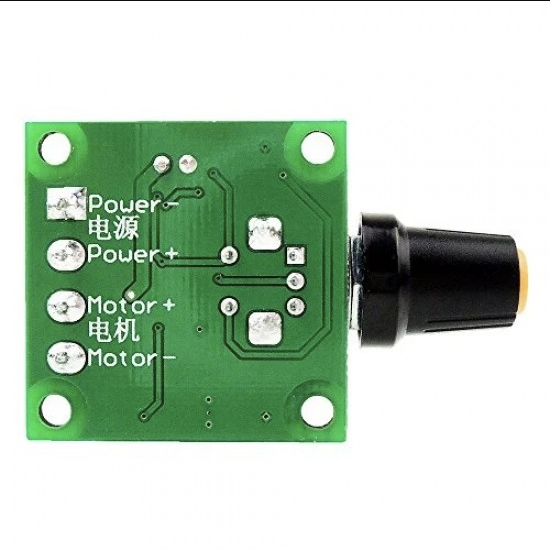

Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
Connect a voltage of 1.8V-15V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be the supply voltage applied to the circuit.
You can now control the speed of the motor through the potentiometer.

Package Includes :

1 x DC Motor PWM Speed Regulator
