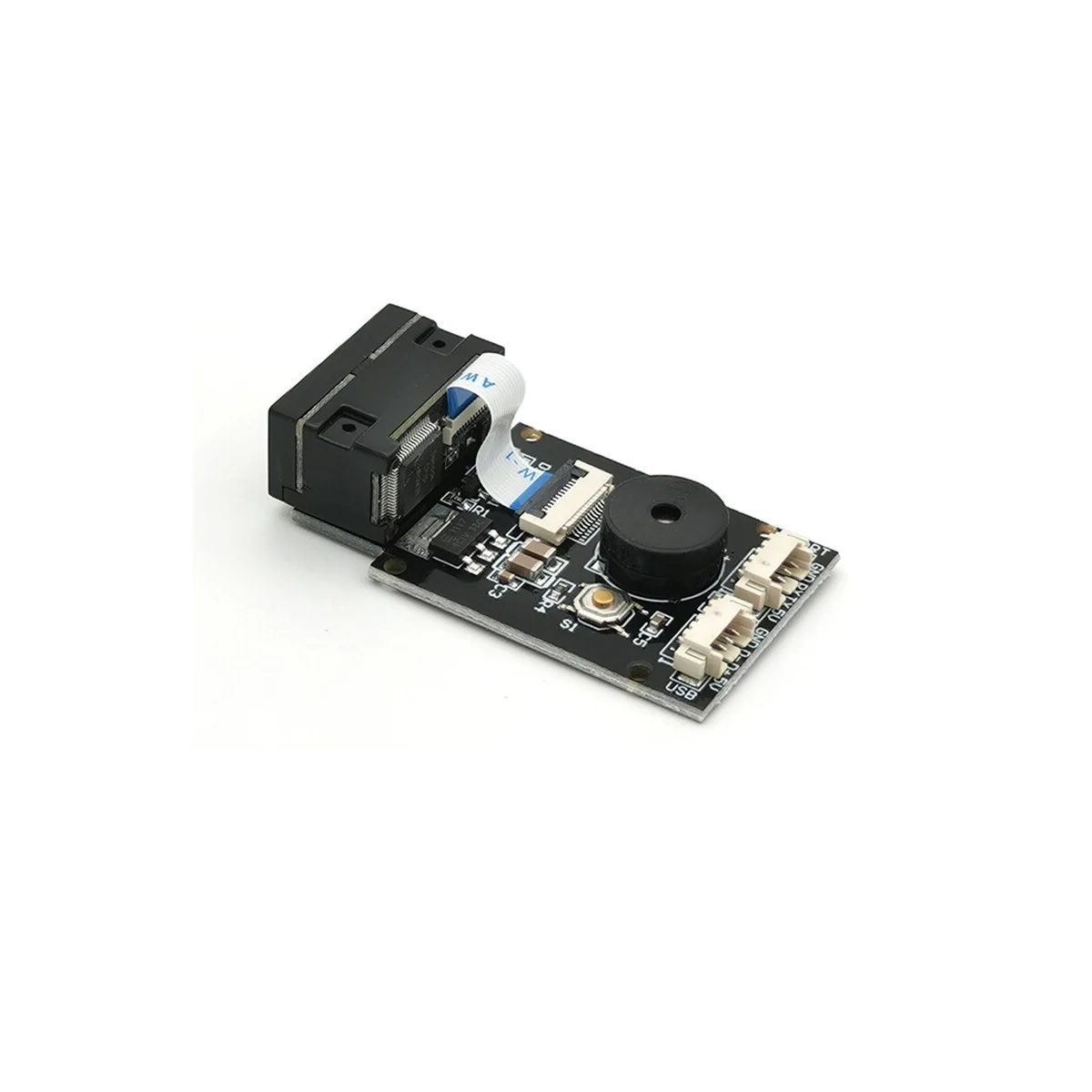

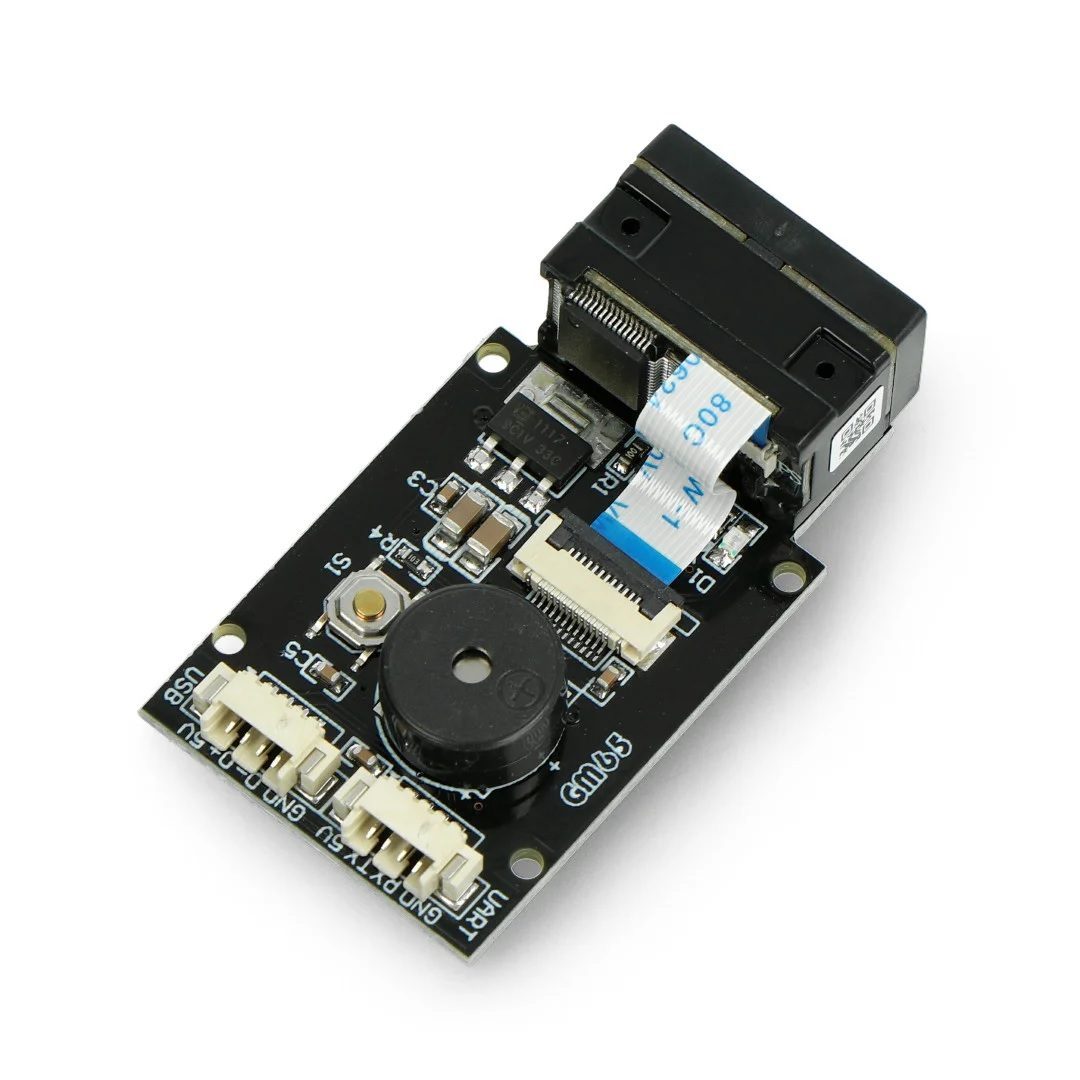

Grow GM65 1D/2D Barcode QR Code Scanner Module USB + UART Output

Grow GM65 1D/2D Barcode QR Code Scanner Module USB + UART Output is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen. GM65 bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development. GM65 works stable in dark and large temperature range.

Features:

• USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
• High-efficiency recognition and high upload speed for improving your working efficiency.
• With buzzer for reminding you that the scanning successfully or not.
• Compatible with USB and UART interface.
• Over 180 configurable options
• Macro support replace a string in the bar code with another
• Programmable preamble postamble and termination strings
• Superior reading performance utilizing advanced decoding algorithms

Specifications:

• Type: Barcode Scanner
• Decoding Ability: 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,
• Interface: USB2.0 UART
• Resolution: 0.10mm (4mil)
• Operating Voltage: 5V
• Operating Current: 120mA
• Weight: 13g

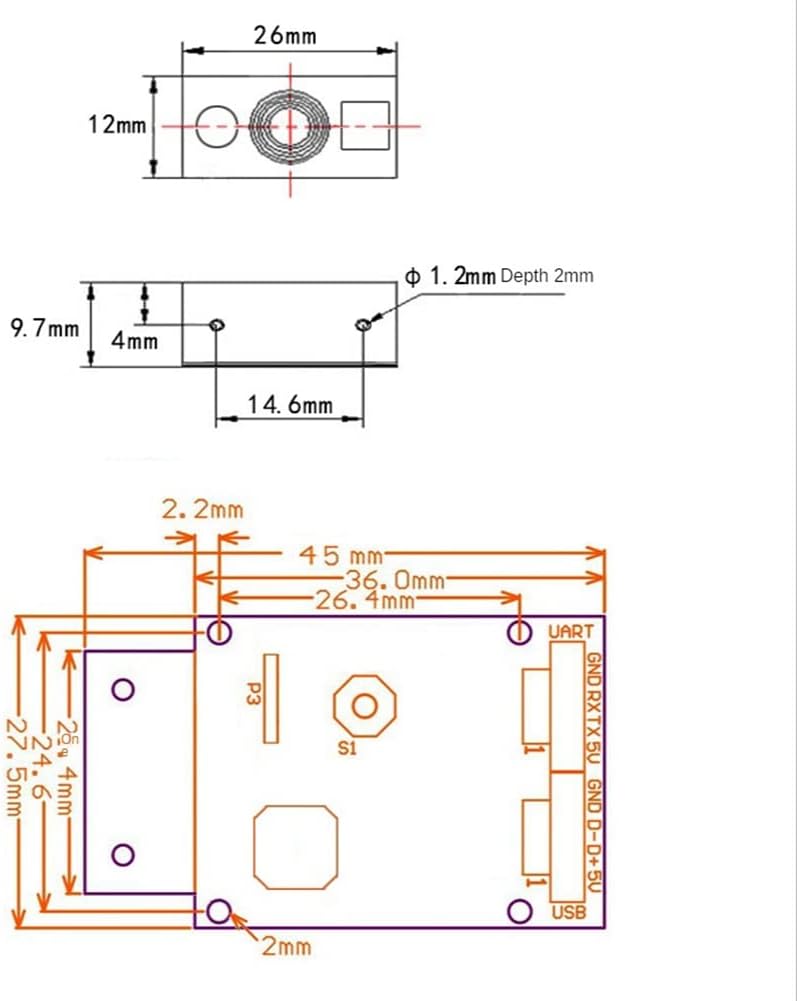

• Size: 46.8 x 27.5mm
• Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater : Scanning angle Inclination angle 34°, Elevation angle 26°o
• Reading Distance: 25 – 250mm
• Operating Temperature: -20 degrees to 55 degrees
• Light Levels: 0-85000LUX
• Type: Barcode Scanner
• Decoding Ability: 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,

Type that can be read:

• Read barcode type (1D): UPC/EAN, UPC/EAN with supplemental, Book land EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Cod bar, MSI, Chinese 2 of 5, GS1 Data Bar variants, Korean 3 of 5, ISBT Con cat
• Read the QR code type (2D) : QR Code , PDF417, Data Matrix

Note:

• Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the place where you can input text on the computer will be displayed directly, such as WORD, chat window

Package Includes

• Grow GM65 Scanner PCBA
• USB to JST Cable
• Connector cable for UART
