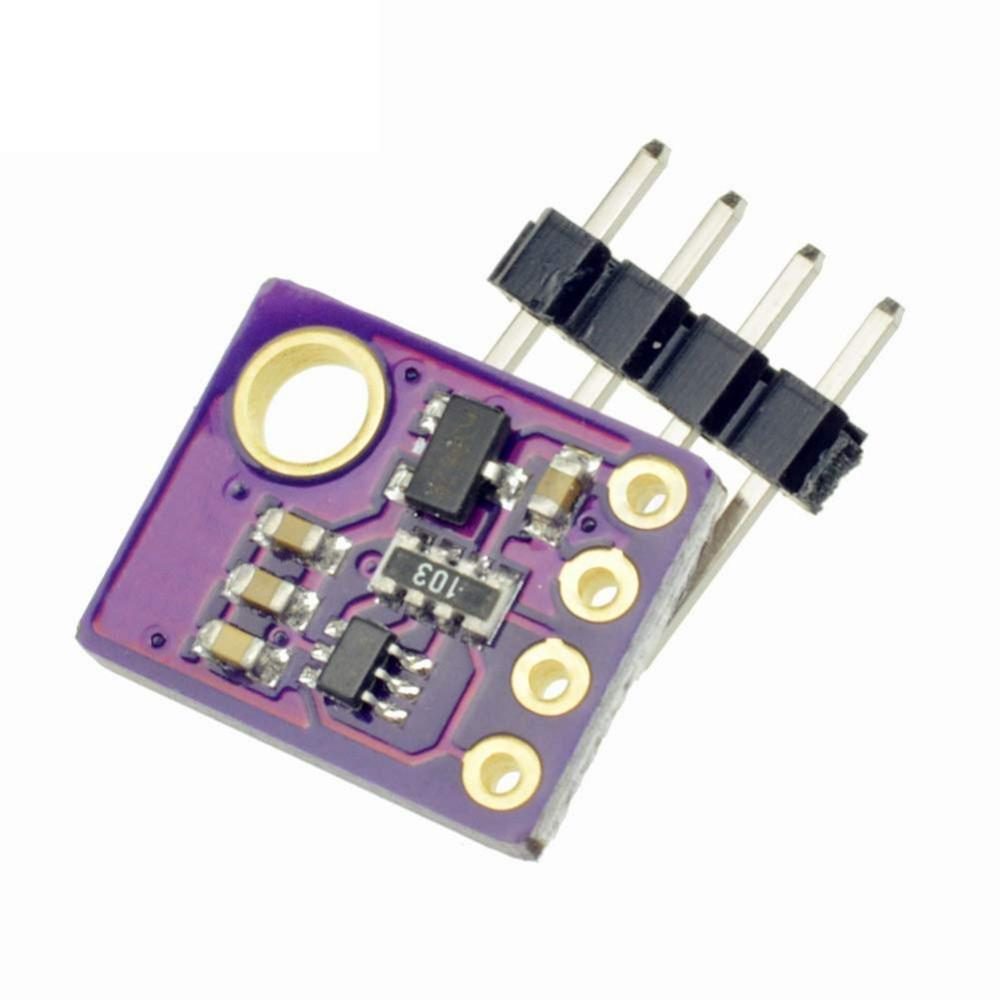

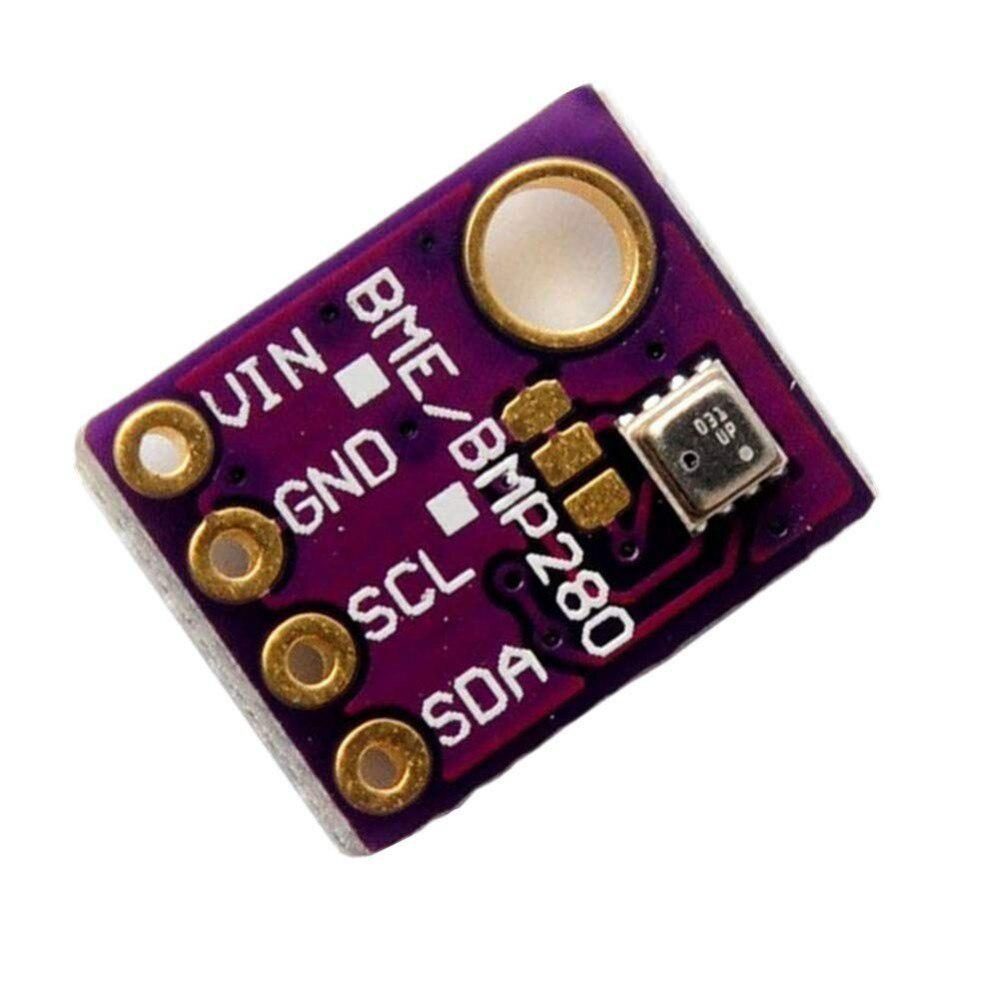

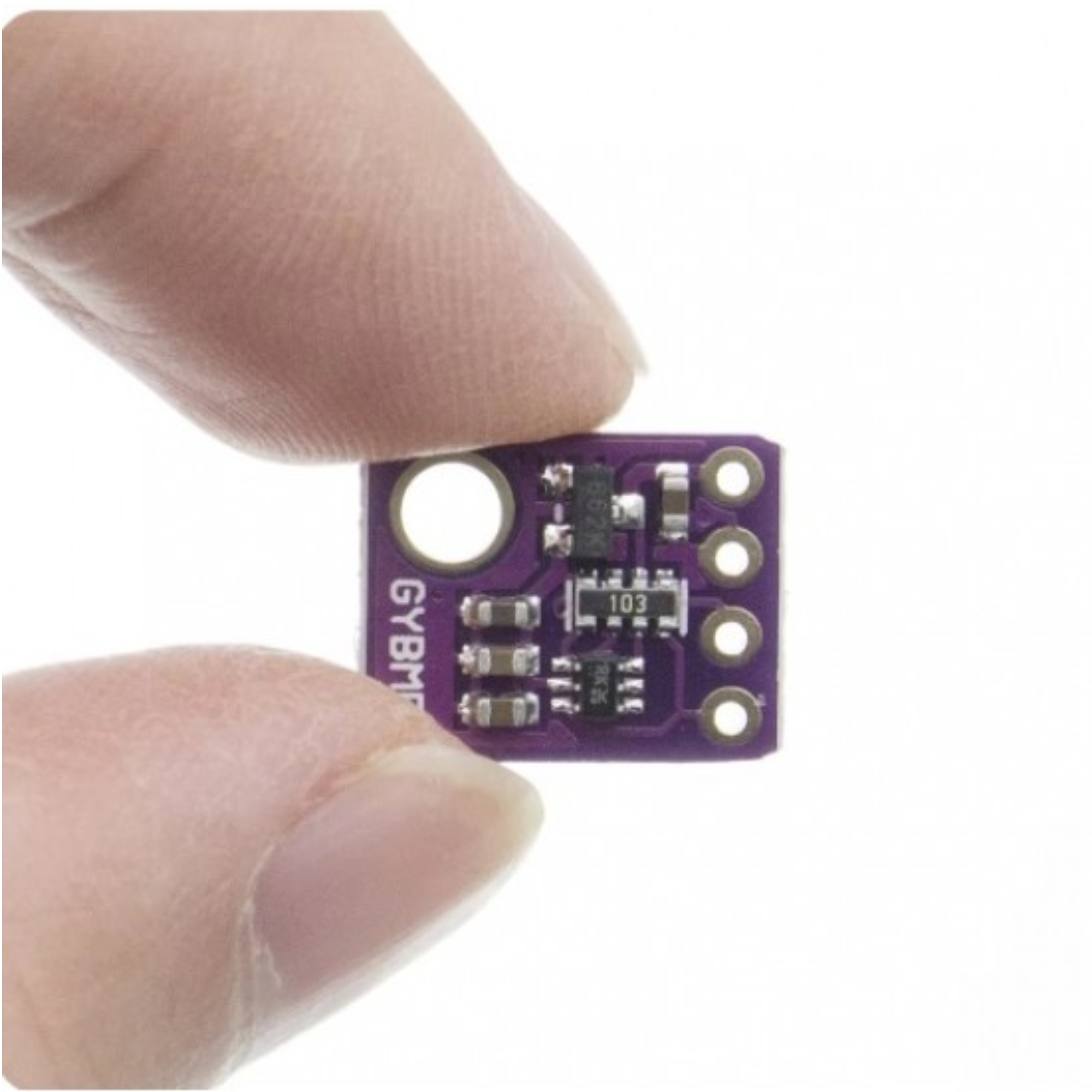

GY-BME280 5V Temperature and Humidity Sensor

GY-BME280 5V Temperature and Humidity Sensor is an environmental sensor with temperature, barometric pressure and humidity! This sensor is great for all sorts of weather/environmental sensing and can even be used in I2C.

This precision sensor is the best low-cost sensing solution for measuring humidity with ±3% accuracy, barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with  ±1 meter or better accuracy!

The BME280 is the next-generation of sensors and is the upgrade to the BMP085/BMP180/BMP183 – with a low altitude noise of 0.25m and the same fast conversion time. For simple easy wiring, go with I2C.

Features:

• The BME280 is a great new chip that was originally designed for the next generation of smartphones.
• With an I2C connection, you have access to enough weather data to make some pretty good predictions for your local area.
• BME280, the precision sensor, is soldered onto PCB.
• Not only the pressure and the temperature, but this sensor can also measure humidity.
• It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Specifications:

• Operating Voltage (VDC): 1.8 ~ 5
• Interface: I2C (up to 3.4MHz) : SPI (up to 10 MHz)
• Operating Temperature Range (°C): -40 to 85
• Operating Humidity Range: 0-100%
• Operating Pressure Range: 300-1100 hPa
• Resolution: Temperature: +-1°C : Humidity: +-3% : Pressure: +-1Pa
• I2C Address: SDO LOW: 0x76 : SDO HIGH: 0x77
• Length (mm): 12
• Width (mm): 10
• Height (mm): 2
• Weight (gm): 3

Applications:

• Context awareness, e.g. skin detection, room change detection
• Fitness monitoring/well-being
• Warning regarding dryness or high temperatures
• Measurement of volume and airflow
• Home automation control
• Control heating, ventilation, air conditioning (HVAC)
• Internet of things
• GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)
• Indoor navigation (change of floor detection, elevator detection)
• Outdoor navigation, leisure, and sports applications
• Weather forecast
• Vertical velocity indication (rise/sink speed)

Package Includes:

• 1 x GY-BME280-5V Temperature and Humidity Sensor
