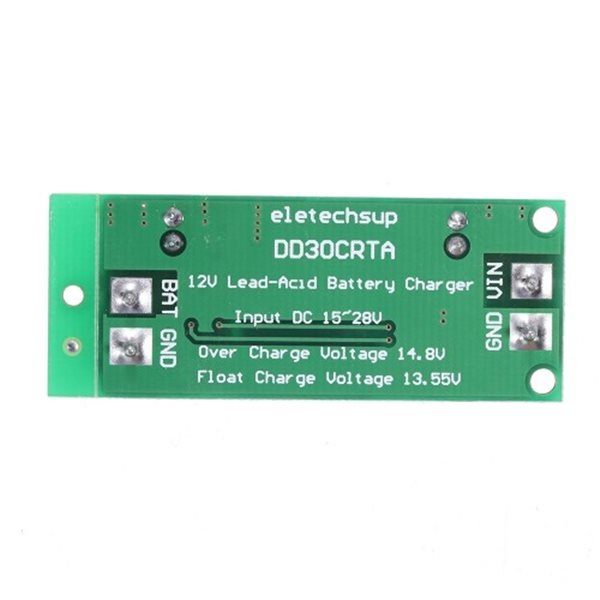

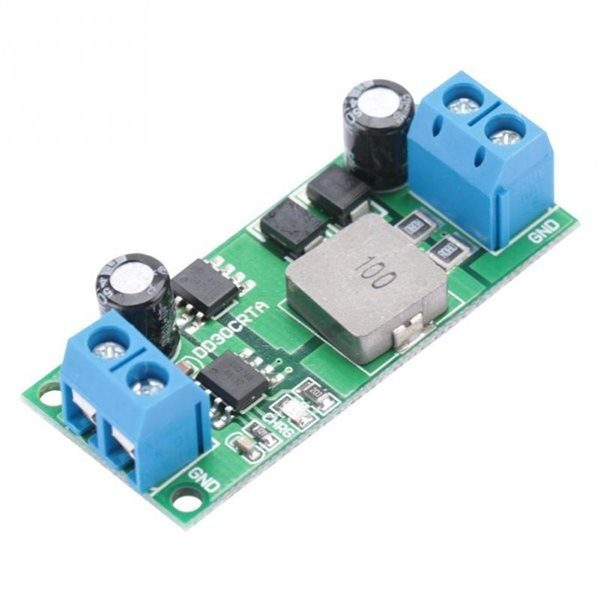

HOT DD30CRTA Car Lead Acid Battery Charger 12V Charging Device 3A Current 1-10000AH UPS Solar Power Module With Terminal

This is a HOT DD30CRTA Car Lead Acid Battery Charger 12V Charging Device 3A Current 1-10000AH UPS Solar Power Module With Terminal. The DD30CRTA is a PWM switch-mode battery charger controller for a 12V lead-acid battery in a small package using a few external components. The DD30CRTA is specially designed for charging 12V lead-acid battery with trickle charge, constant current charge, over-charge and float charge mode. In over-charge and float charge mode, the regulation voltage is internally set.

The constant charge current is programmable with a single sense resistor.

Deeply discharged batteries are automatically trickle charged at 17.5% of the programmed constant charge current until the cell voltage exceeds 75% of the regulation voltage in over-charge mode. The over-charge is terminated once the charging current drops to 38% of the constant charge current, then DD30CRTA will enter float charge mode. A new charge cycle automatically restarts if the battery voltage falls below 83.95% of the over-charge voltage in float-charge mode. DD30CRTA will automatically enter sleep mode when the input voltage is lower than the battery voltage.

Features:

• Fixed Over-Charge Voltage
• Overcurrent protection
• Automatic Conditioning of Deeply Discharged Batteries
• Automatic Recharge
• Charger Indication
• Battery Overvoltage Protection
• Suitable for 1-10000AH 12V Lead-Acid Battery charger

Specifications:

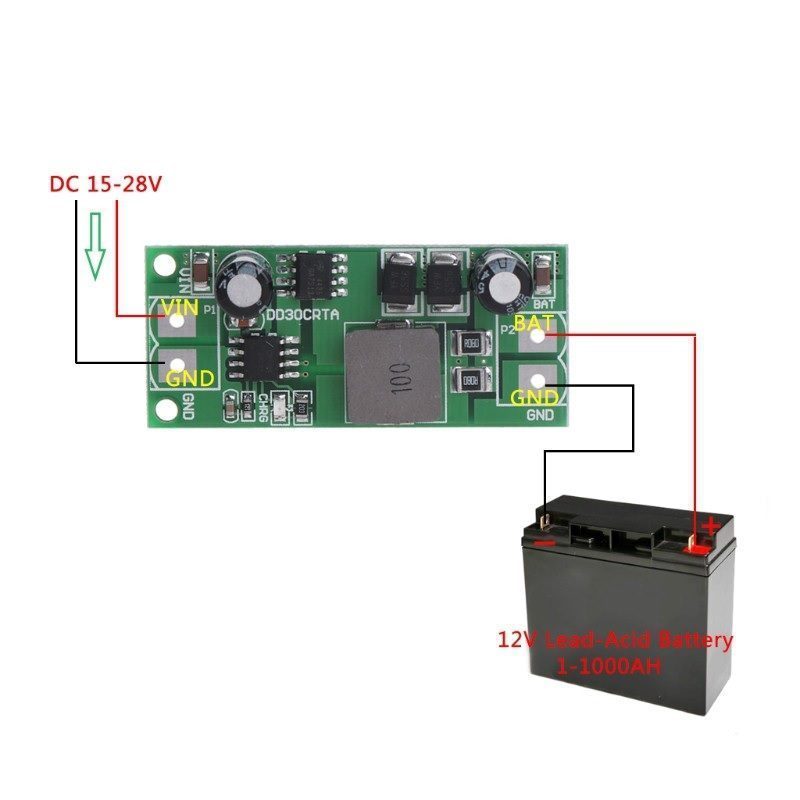

• Power Supply(V): 15-28VDC(Recommended 16-25VDC)
• Over Charge Voltage: 14.8V
• Float Charge Voltage: 13.55V
• Maximum charge current: 3A
• Quiescent current: about 1.8mA
• High PWM Switching Frequency: 300KHz
• Operating Ambient Temperature: -40℃ to +85℃
• Size(mm): 66 x 20x 12mm
• Weight (gm): 9 gm

Applications:

• Car battery charging
• Solar battery charging
• Loudspeaker
• Lead-Acid Battery Charger
• Electric Bicycle Charger
• UPS
• Portable Industrial and Medical Equipment
• Standalone Battery Chargers

Other features include under-voltage lockout and indication, etc.

1: The Regulation Voltage in Over Voltage Mode and Float Charge Mode

• The regulation voltage VOC at BAT pin in overcharge mode is set at 14.8V(Typical) with ±1.5% accuracy.
• In float charge mode, the regulation voltage VFLOAT at BAT pin is 91.57% of that in overcharge mode, which is 13.55V(Typical).
• Trickle Charge Mode At the beginning of a charge cycle, if the battery voltage is below 75%×VOC, the charger goes into trickle
• charge mode with the charge current set at about 17.5% of the constant current.

2: End-of-Over Charge Current

• When the battery voltage approaches the over-charge voltage, the charger goes into the overcharge mode. In
• overcharge mode, the charge current start to decrease and when the charge current drops to 38% of constant
• charge current, the charger goes into float-charge mode.

3: Float Charge Mode

• After the overvoltage charge is terminated, the charger goes into float charge mode. In float charge mode, the
• battery voltage is regulated to 91.57%×VOC, namely 13.55V(Typical). Float charge mode can compensate for
• the loss of battery power due to self-discharge or external loading.

4: Automatic Battery Recharge

• In float mode, if both the battery and the input power supply (wall adapter) are present, a new charge cycle will
• begin if the battery voltage drops below 83.95%×VOC due to self-discharge or external loading.
• A new charge cycle can also be started manually by plugging off the input supply and reapplying it.

Package Includes:

• 1 x HOT DD30CRTA Lead Acid Battery Charger 12V Charging Device 3A
