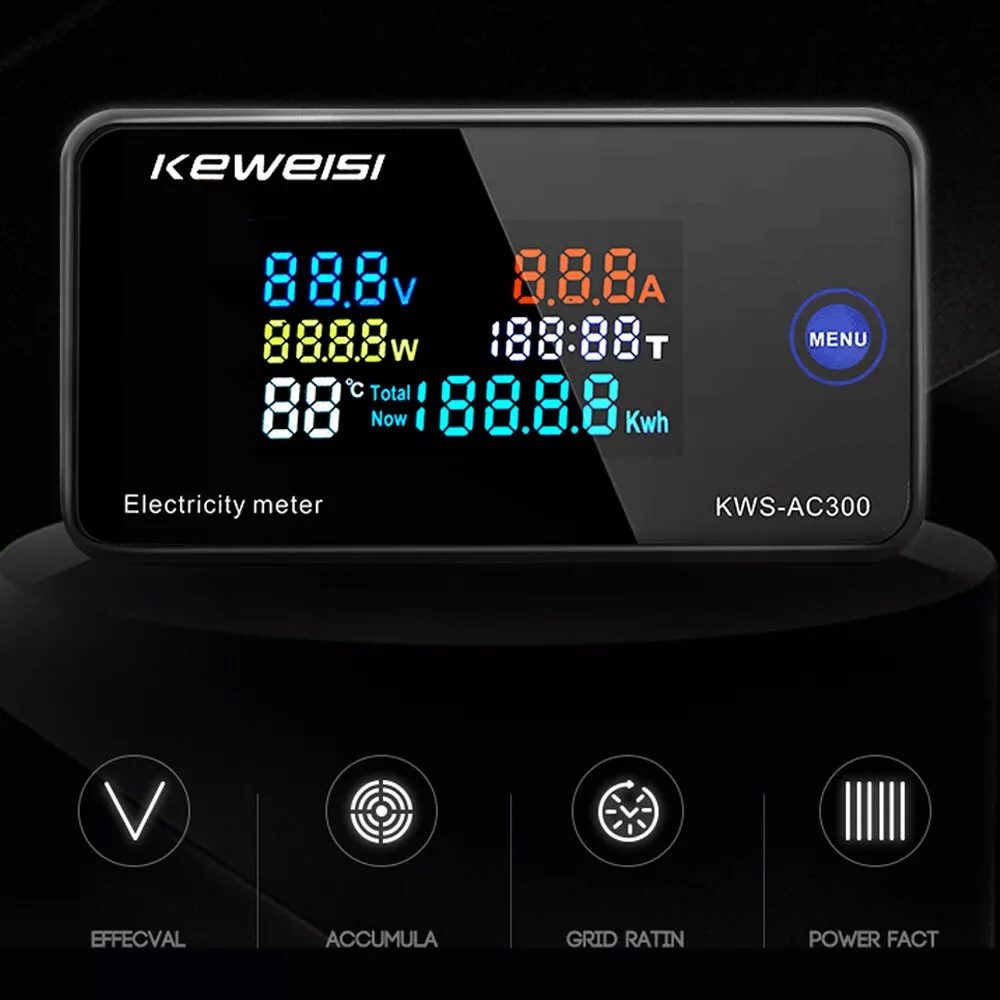

KEWEISI KWS-AC300-100A AC 50-300V 0-100A Power Energy Meter with Close Mutual Inductance

KEWEISI KWS-AC300-100A AC 50-300V 0-100A Power Energy Meter with Close Mutual Inductance is a kind of intelligent electricity meter, made of with full viewing angle color LCD screen, easy to read current electrical energy and cumulative electrical energy. This AC Wattmeter Electric Meter supports measuring the current, voltage and humidity of connected appliances. Electric energy and timing can be reset. Electric energy and timing have -down memory function.

Features:

• Made of -resistant nylon material, stable installation with fine durability and can provides long service .
• Full viewing angle color LCD screen, easy to read current electrical energy, cumulative electrical energy.
• Supports measuring the , current, voltage, , and humidity of connected appliances.
• Electric energy and timing can be reset.
• Electric energy and timing have -down memory function.
• Rated frequency 45-65Hz.

Specifications:

• Model: KWS-AC300-100A
• Type: Close Mutual Inductance Sensor
• Current Range: 0-100A AC
• Input Voltage: AC50-300V
• Electricity: 0.01-19999kwh
• Power: 0-3kw
• Timing: 0-200h

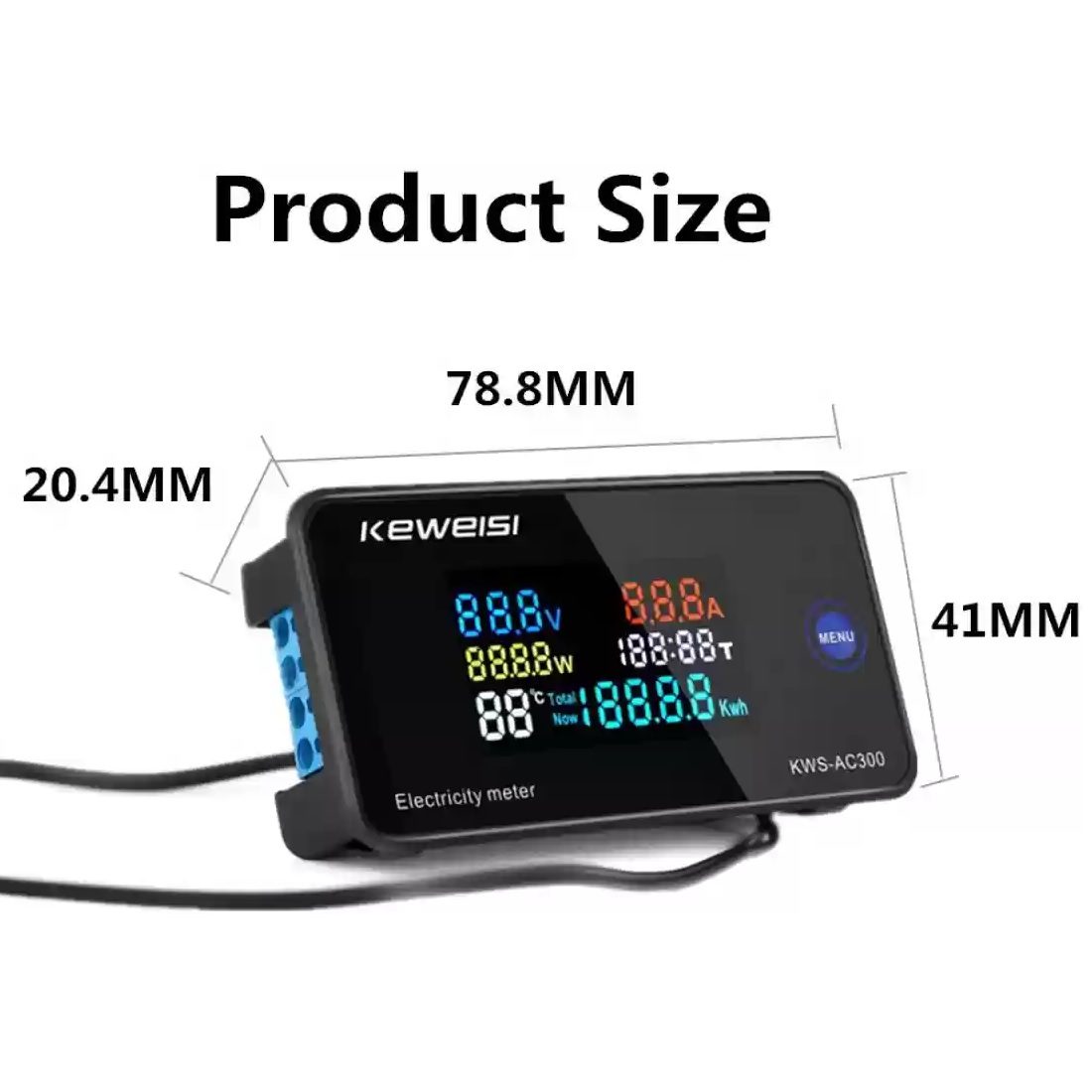

• Item size: 85 * 44 * 21mm / 3.35 * 1.73 * 0.83in
• Item weight: 90g
• Package size: 64 * 50 * 88mm / 2.52 * 1.97 * 3.46in
• Package weight: 95g

Operating Instructions:

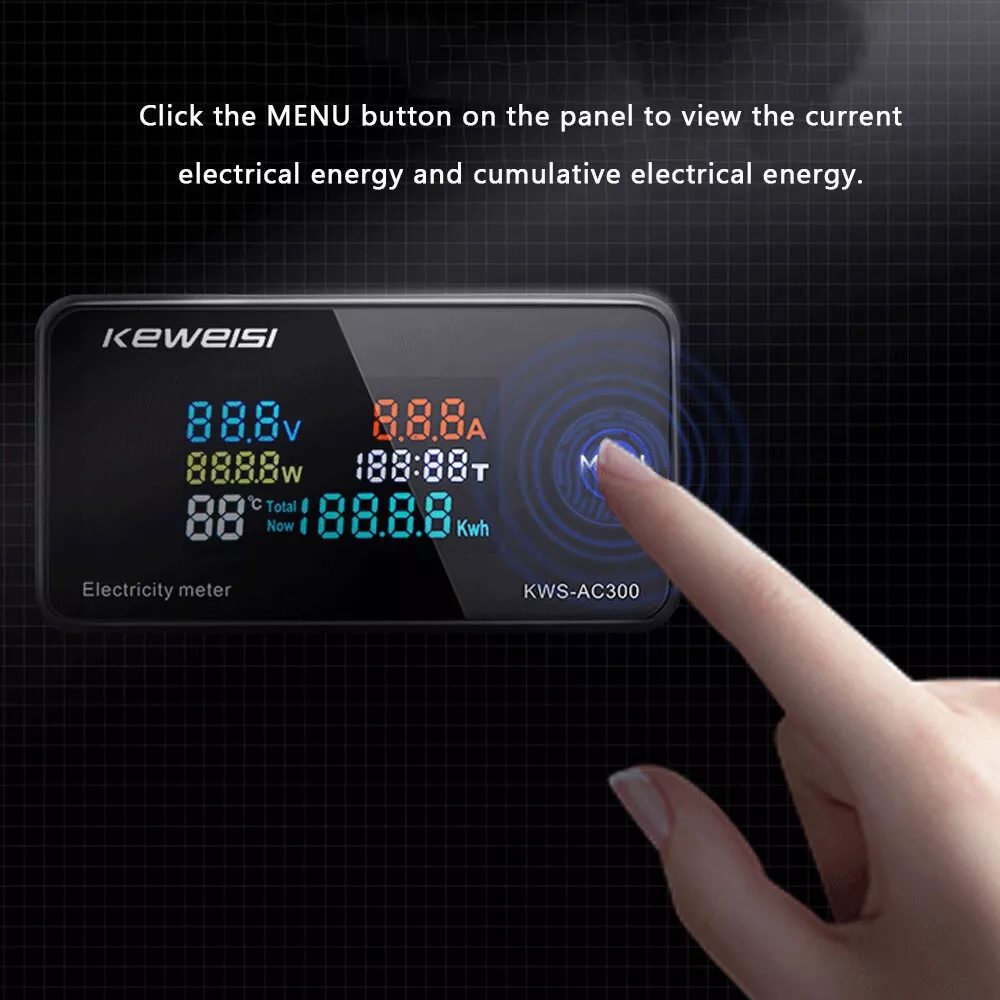

• Click the MENU button on the panel to view the current electrical energy and cumulative electrical energy.
• Electric energy and timing reset method:

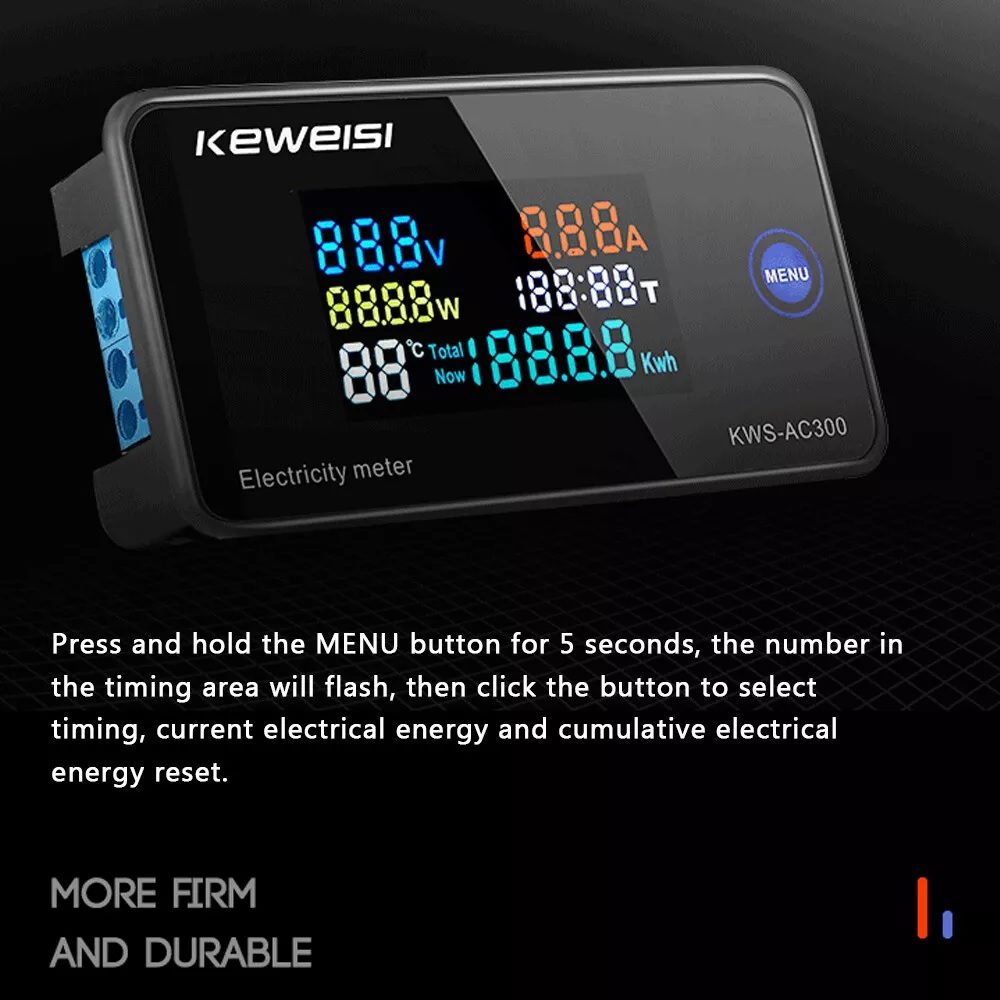

• Press and hold the MENU button for 5 seconds, the number in the timing area will flash, then click the button to choose timing, current electrical energy and cumulative electrical energy reset.
• When the number flashes, double-click the button to reset. Press and hold the button for 5 seconds to save the settings.

Package Includes:

• 1 x KWS-AC300-100A

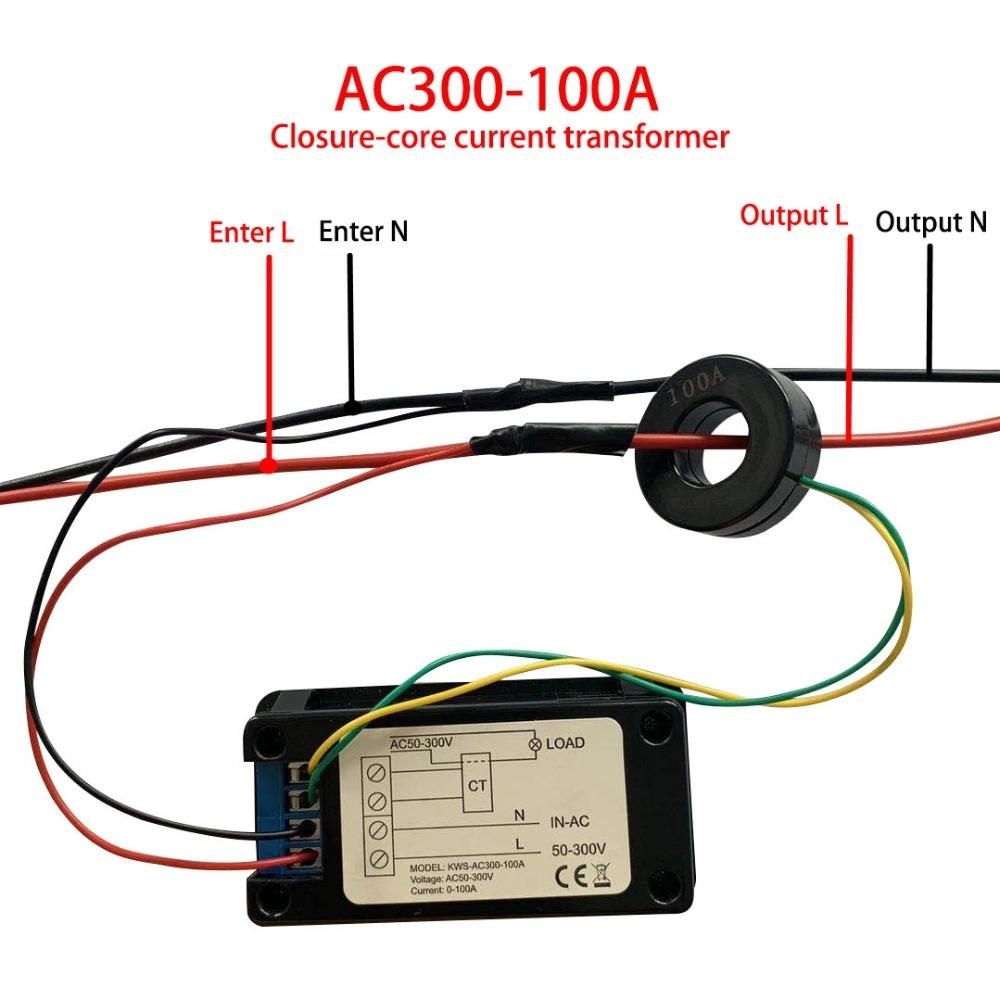

• 1 x Close Mutual Inductor
• 1 x Cable
