LM35 LM35DZ Precision Centigrade/Celsius Temperature Sensor

LM35 LM35DZ Precision Centigrade/Celsius Temperature Sensor is a precisely integrated circuit whose voltage output is linearly proportional to the centigrade temperature. These sensors have an added advantage over kelvin calibrated sensors and do not require the subtracting of constant voltage from its output to obtain convenient centigrade scaling. Our product need not to be calibrated or trimmed to normal accuracy of 1/4 DegC at room temperature and 3/4 Cover a full -55 to 150?C temperature range.

The low output impedance, linear output, and precise inherent calibration of these temperature sensors makes the interfacing to readout or control circuitry easily. These sensors can be used with single, plus or minus power supplies because it draws only 60 mA from its supply and has very low self-heating, less than 0.1 DegC in still air.

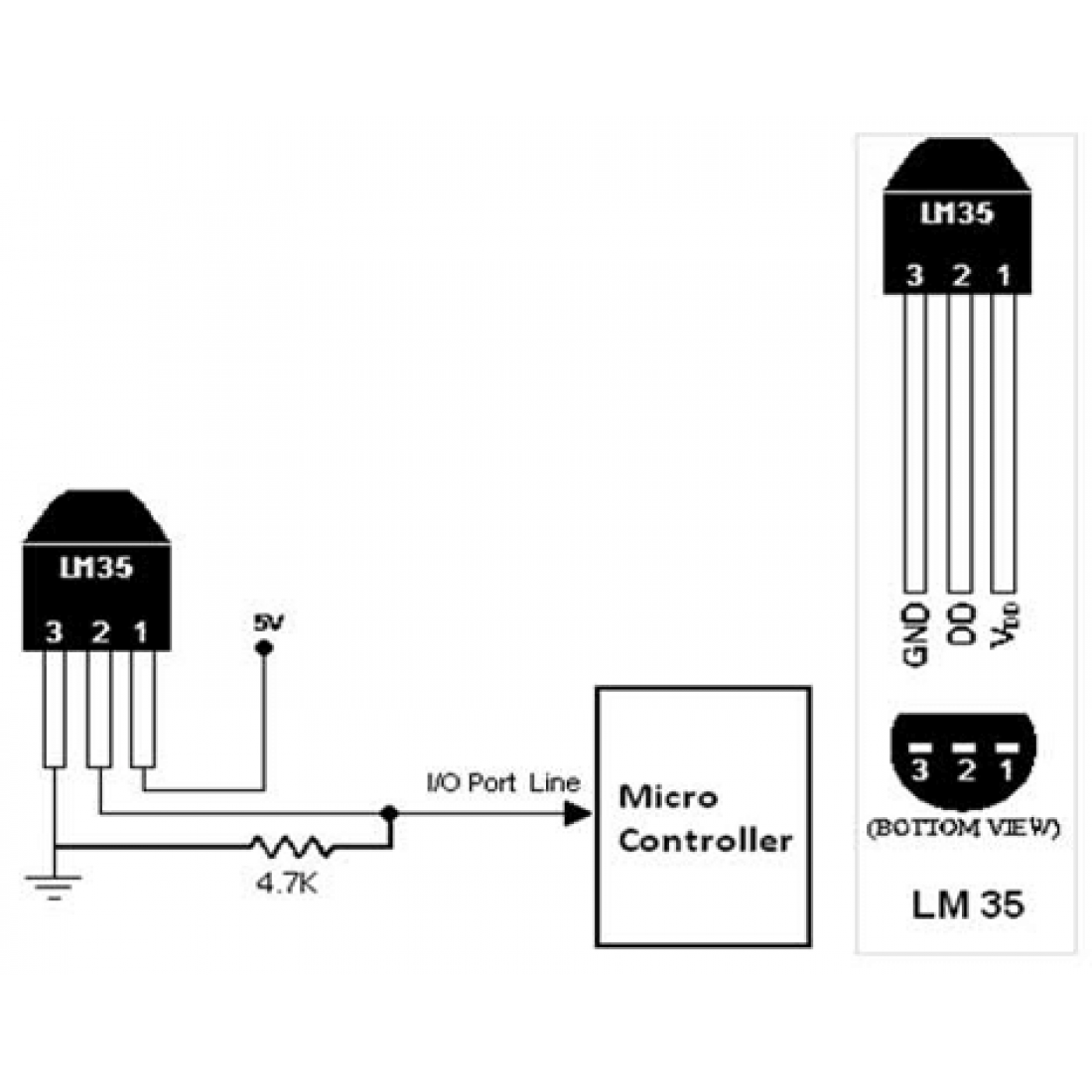

LM35 can also be directly connected to Arduino. The output of LM35 temperature can also be given to comparator circuit and can be used for over temperature indication or by using a simple relay can be used as a temperature controller.

Features:

• Calibrated directly in Degree Celsius (Centigrade)
• Linear at 10.0 mV/°C scale factor
• 0.5°C accuracy guarantee-able (at a25°C)
• Rated for full -55°C to a 150°C range
• Suitable for remote applications
• Low cost due to wafer-level trimming
• Operates from 4 to 30 volts
• Less than 60 mA current drain
• Low self-heating, 0.08°C in still air
• Non-linearity only 0.25°C typical
• Low impedance output, 0.1Ωfor 1 mA load

Specifications:

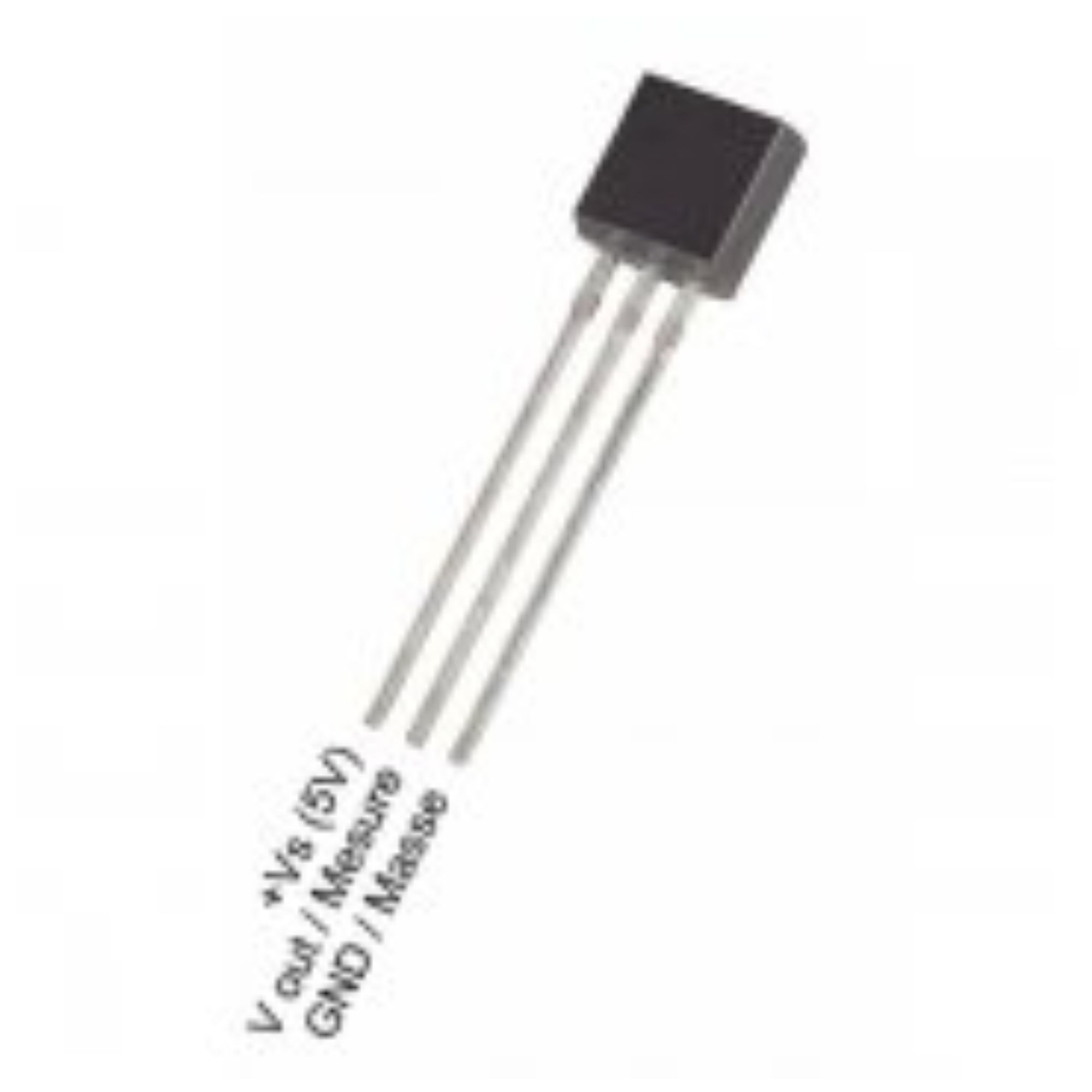

• Package/Case: TO-92-3
• Mounting Style: Through Hole
• Sensor Type: Temperature Sensor
• Output Type: Analog Voltage
• Maximum Supply Voltage: 30 V
• Minimum Supply Voltage: 4V
• Operating Temperature Range: -55ºC to +150ºC

Package Includes:

• 1 x LM35 TO-92-3 Board Mount Temperature Sensors.

Note :

• Due to the fact that this product is a generic, high requirements may not be able to use it or will find unstable results.
• Working of this sensor vary application to application so buy accordingly.
