Load Cell Sensor 10kg For Electronic Weighing Scale

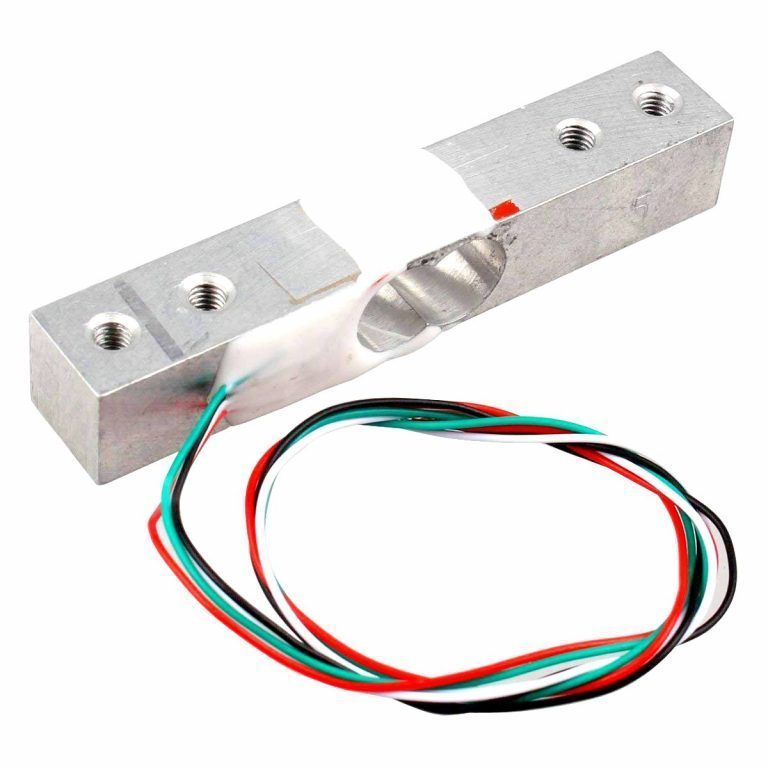

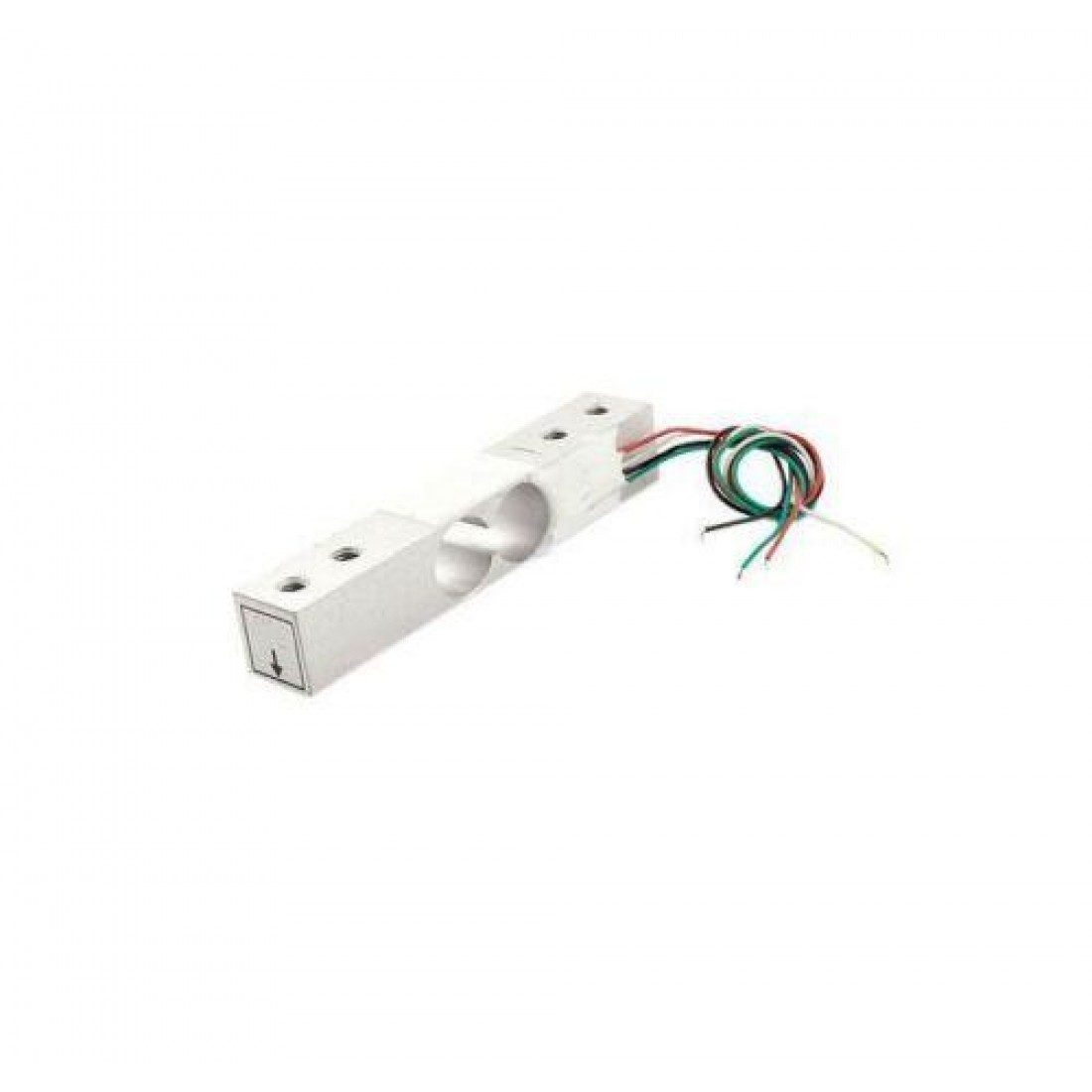

Load Cell Sensor 10kg For Electronic Weighing Scale is a straight bar load cell (sometimes called a strain gauge) can translate up to 10 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

With this Electronic Weighing Scale Load Cell 10kg, you will be able to tell just how heavy an object is upto 10kg or if an object’s weight changes over time or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This weight sensor load cell is made from an aluminum alloy and is capable of reading a capacity of 10KG of weight.

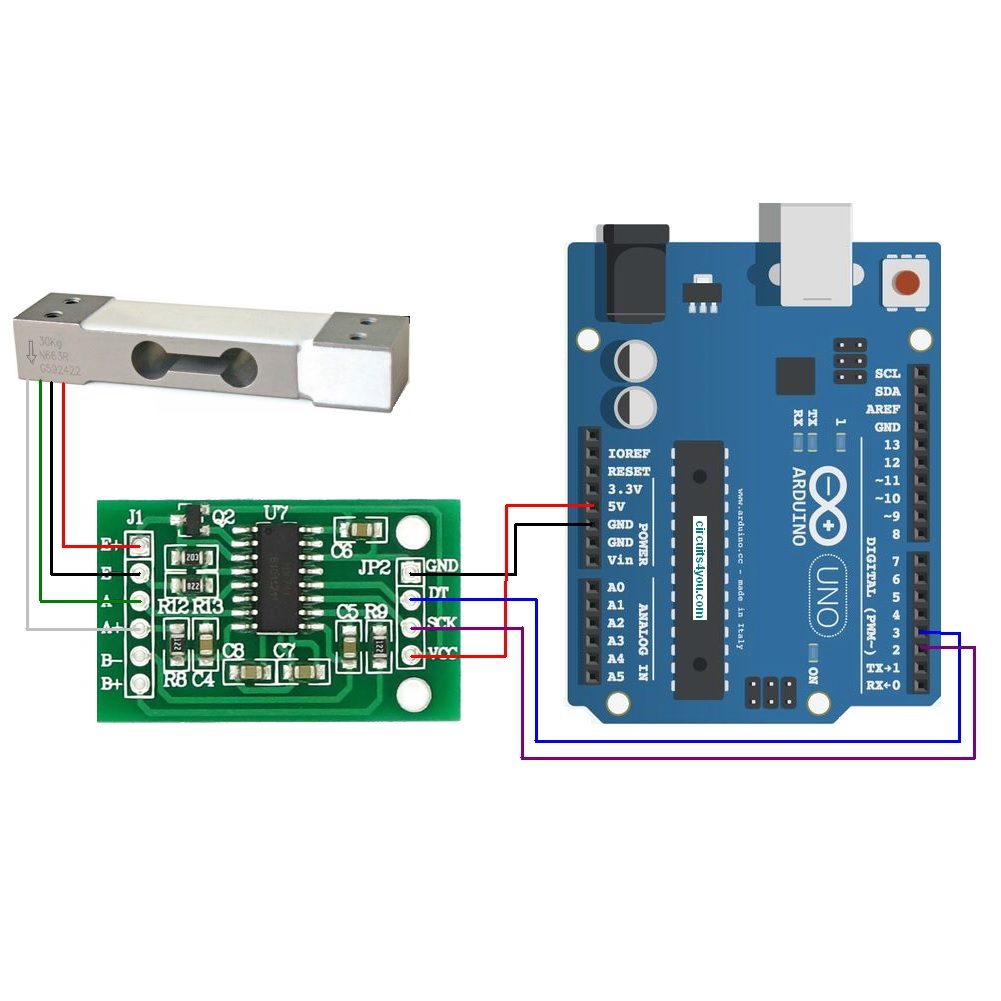

It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

When we apply to load the strain gauge resistance will change and hence the output voltage from the load cell get changes by the way we can measure the load value.

Specifications:

• Material: Aluminium
• Dimensions in mm (LxWxH): 80 x 12.7 x 12.7
• Weighing Range: 0~10 Kg
• Recommended excitation voltage(V): 5~10
• Rated Output: 1.0 ± 0.15 mV / V
• Non-Linear Output: ± 0.03% F. S
• Hysteresis: 0.03% F. S
• Repeatability: 0.03% F. S
• Creep (%Ro/30min): 0.03%F.S./30min
• Cable Length: 26
• Zero Balance: ± 0.1 mV / V
• Insulation Resistance: 2000 MΩ
• Input Impedance: 1115±10% Ω
• Output Impedance: 1000 ± 10% Ω
• Accuracy class: C2
• Load cell verification intervals (N max): 2000
• Combined error(%Ro): <±0.030
• Operating Temperature Range: -20~60°C
• Temperature effect on sensitivity(%RO/°C): 0.0016
• Temperature effect on zero(%RO/°C): 0.003
• Method of connecting wire: Red (+), Black (-), Green (+), White (-)
• Weight (gm): 27

Package Includes:

• 1 x Load Cell Sensor 10kg For Electronic Weighing Scale
