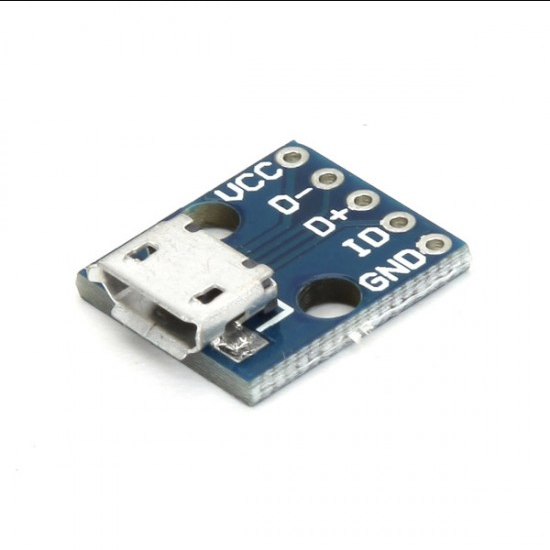

MCU-Micro USB Breadboard 5V Power Supply Module
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil575MCU-Micro USB Breadboard 5V Power Supply Module 5 Pin Female Connector B type PCB Converter. This breakout board is great for interfacing USB Signals with your custom designed microcontroller boards. It also is useful if all you want is access to 5V USB power for your prototype circuits such as breadboards, perforated boards or Vero boards.
Pinouts:
- VCC: 5V Power Supply
- D- : USB D- Signal
- D+: USB D+ Signal
- ID: USB Identifier Signal for OTG Devices
- GND: Power Ground
Specifications :
|
Interface Type |
USB OTG |
|
Connector Type |
USB Micro Female |
|
Breakout Signals Pin Spacing |
0.1 inch / 2.54mm |
|
PCB Size (mm) |
15×13 |
|
PCB Color |
Blue |
|
Mounting Hole(mm) |
M3 |
Package Includes :
- 1 x MCU-Micro USB Breadboard 5V Power Supply Module
Note: This board comes with unsoldered header pin.
