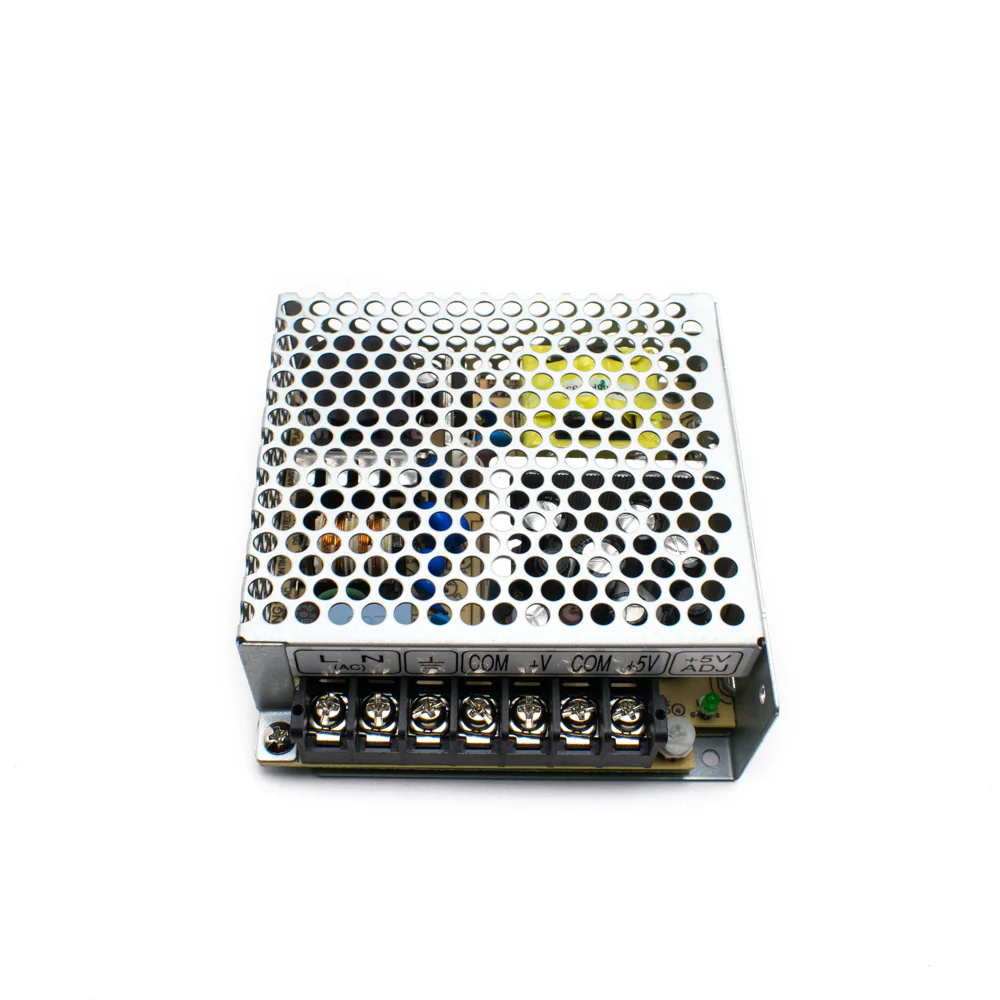

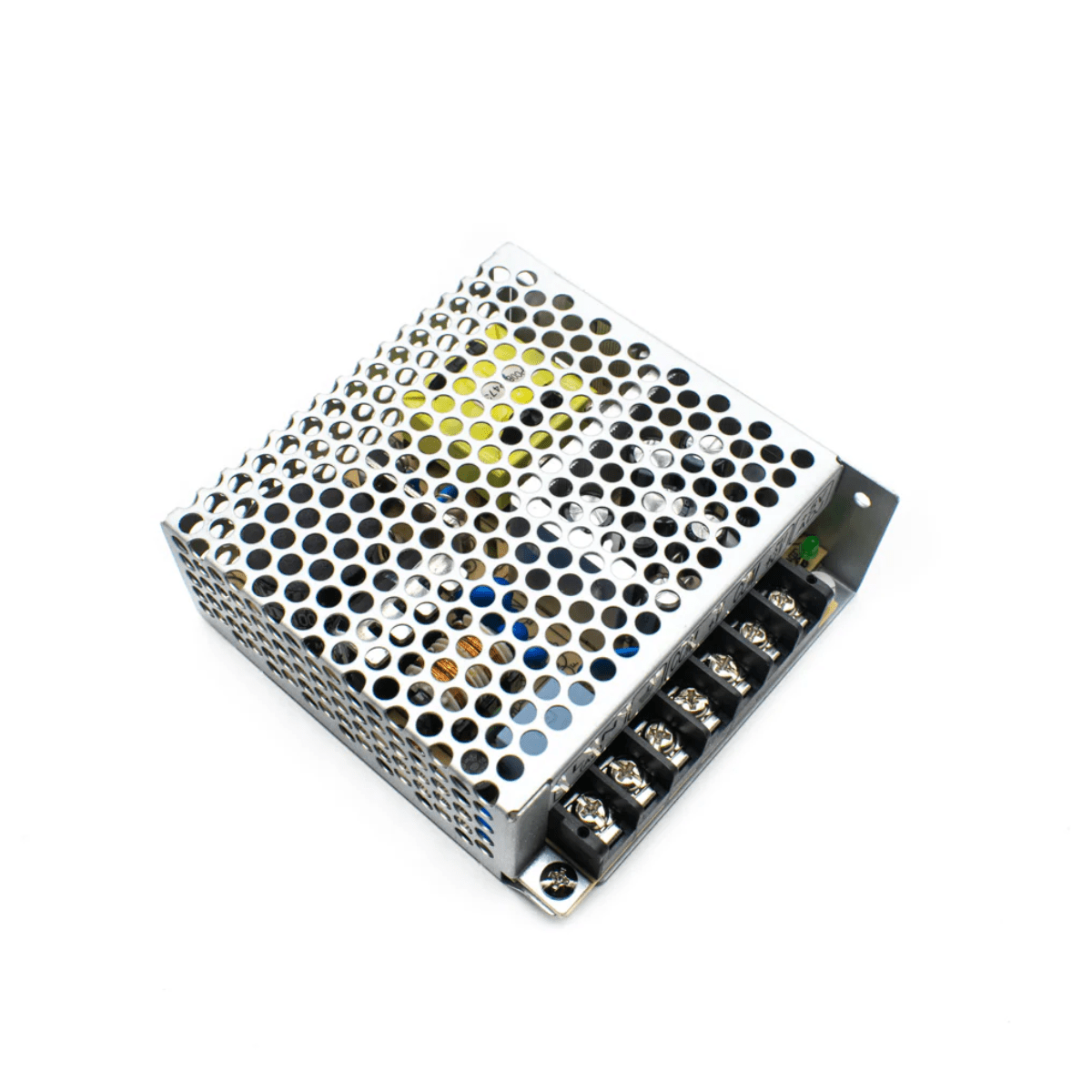

Meanwell RD-50A AC-DC SMPS Power Supply, Dual Output 5V 6A, 12V 2A

The Meanwell RD-50A SMPS (Switching Mode Power Supply) is a robust and versatile power supply unit designed to deliver reliable and regulated DC power for a wide array of applications. Featuring a sturdy build and high efficiency, the RD-50A is suitable for both industrial and commercial environments.

Its compact size facilitates easy installation and integration into various systems, while built-in protections against overvoltage, overload, and short circuits ensure safe and reliable operation. With its wide input voltage range, the RD-50A can operate in diverse mains voltage environments, making it adaptable to different electrical setups. Developed by Meanwell, a reputable brand renowned for quality and reliability in power supply solutions, the RD-50A stands as a dependable choice for powering electronic and electrical equipment.

Features:

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• High efficiency, long life and high reliability

Specifications:

• Series: RD-50
• Model: RD-50A
• Brand: MEAN WELL
• Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
• Input Current 0.8A/230VAC
• Output Voltage-Channel 1: 5 VDC
• Output Voltage-Channel 2: 12 VDC
• Number of Outputs: 2 Output
• Output Current-Channel 1: 6 A
• Output Current-Channel 2: 2 A
• Output Power: 54 W
• Open Frame/Enclosed: Enclosed
• Operating Temperature: -25 to +70 Deg
• Voltage Adjustable Range: 4.75 ~ 5.5V
• Frequency: 47-63Hz
• Protection: Short circuit / Overload / Over voltage
• Industry: Commercial
• Mounting Style: Chassis
• Length: 99 mm
• Width: 97 mm
• Height: 36 mm
• Weight: 410 g

Package includes:

• 1x Meanwell RD-50A AC-DC SMPS Power Supply, Dual Output 5V 6A, 12V 2A
