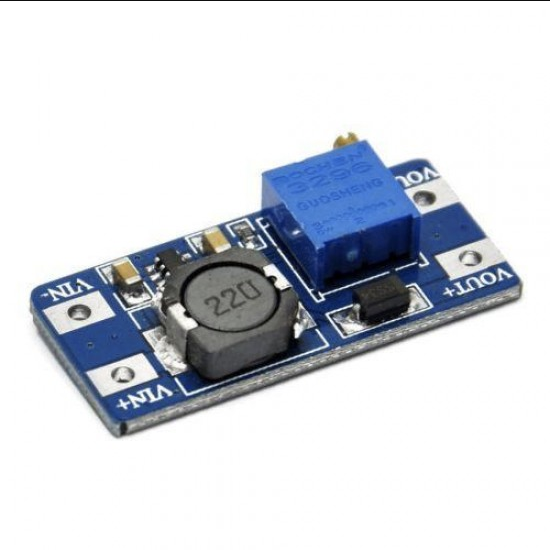

MT3608 2A Max DC-DC Step Up Ultra Small Power Module

MT3608 2A Max DC-DC Step Up Ultra Small Power Module is a DC-DC boost converter for budget that takes input voltage from as low as 2V to an output as high as 28VDC. This module has Input = 2-24V / Out = 5-28V @ 2A Switching Regulator (Boost = Output Voltage has to be higher than input voltage) which is good for getting stable 3.3V or 5V output from 1xAA or 2xAA cells or Li-ion batteries.

Features :

It’s efficient by up to 93%.
It can source a good amount of current.
It is an inexpensive converter module.
It’s simple to adjust to get your desired increase in voltage.

Specifications

Input Voltage (V)	2 ~ 24
Output Voltage(V)	5 ~ 28
Output Current(A)	2
Operating Temperature (°C)	-40 to +90
Efficiency	93%
Length (mm)	36
Width (mm)	17
Height (mm)	7
Weight (gm)	4

Module Connections

VIN+ = Input Voltage
VIN- = Ground
VOUT+ = Output Voltage
VOUT- = Ground. Connected to VIN- on the module.

How to use

Connect the the IN and IN- of the module with 2~24V
Adjust the potentiometer to adjust the output voltage.

Package Includes:

1 x MT3608 2A Max DC-DC Step Up Ultra Small Power Module

Note:

The input voltage should not exceed the maximum input voltage.
Peak current output current is not more than 2A for input & output.
Please be noted that the output voltage should be higher than the input voltage.
