Offside Geared Motor 12V 500 RPM – High Torque

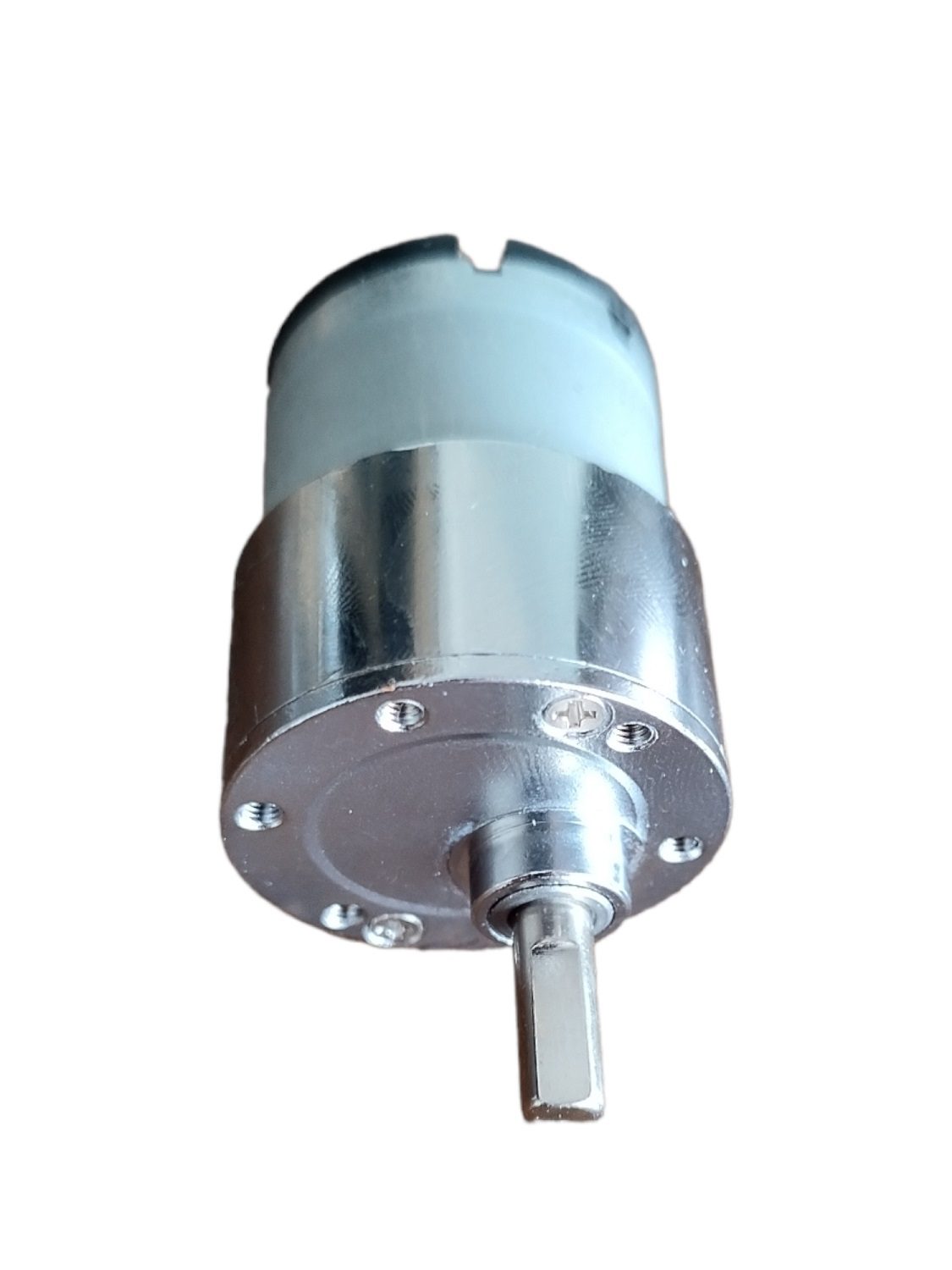

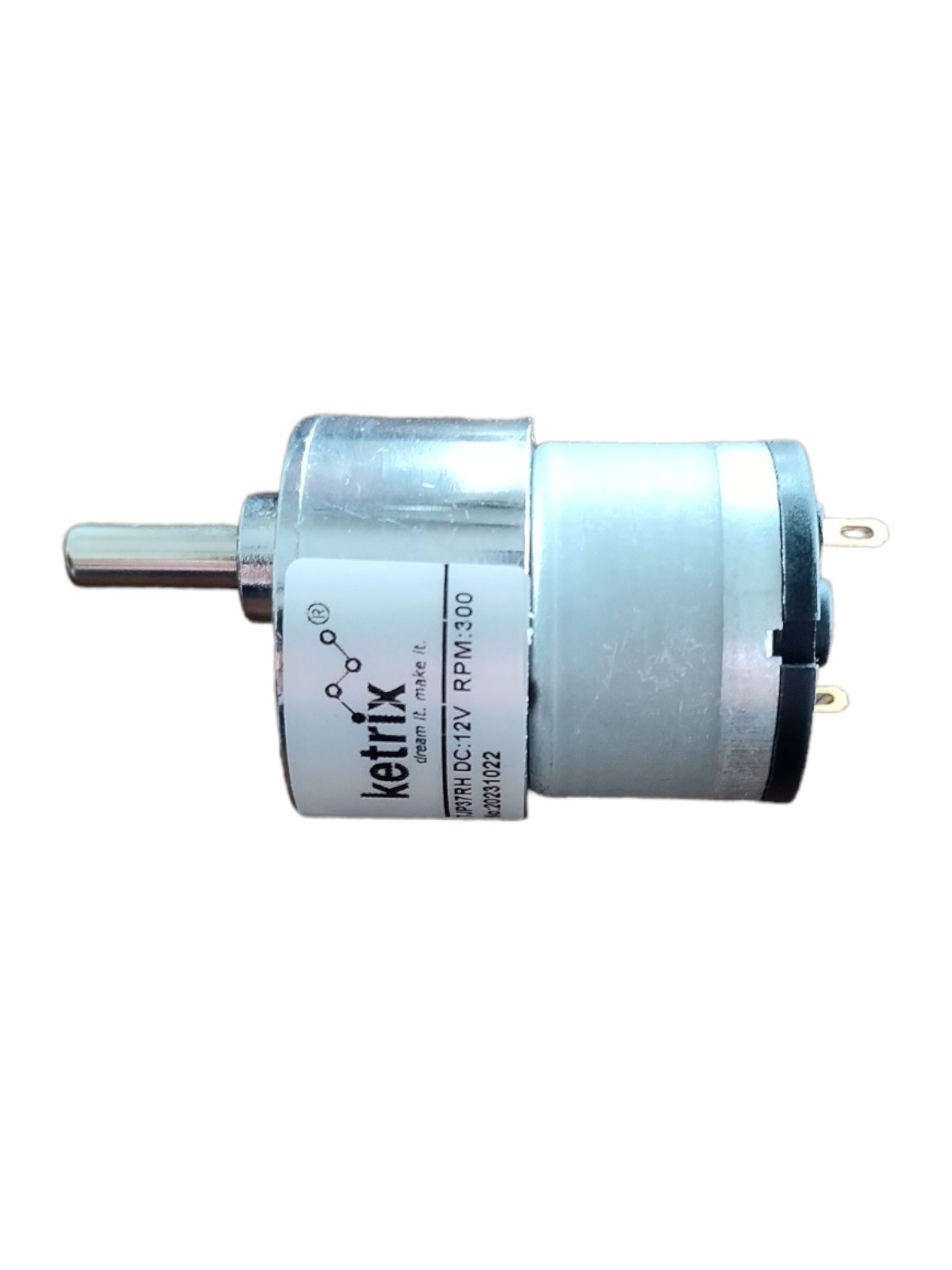

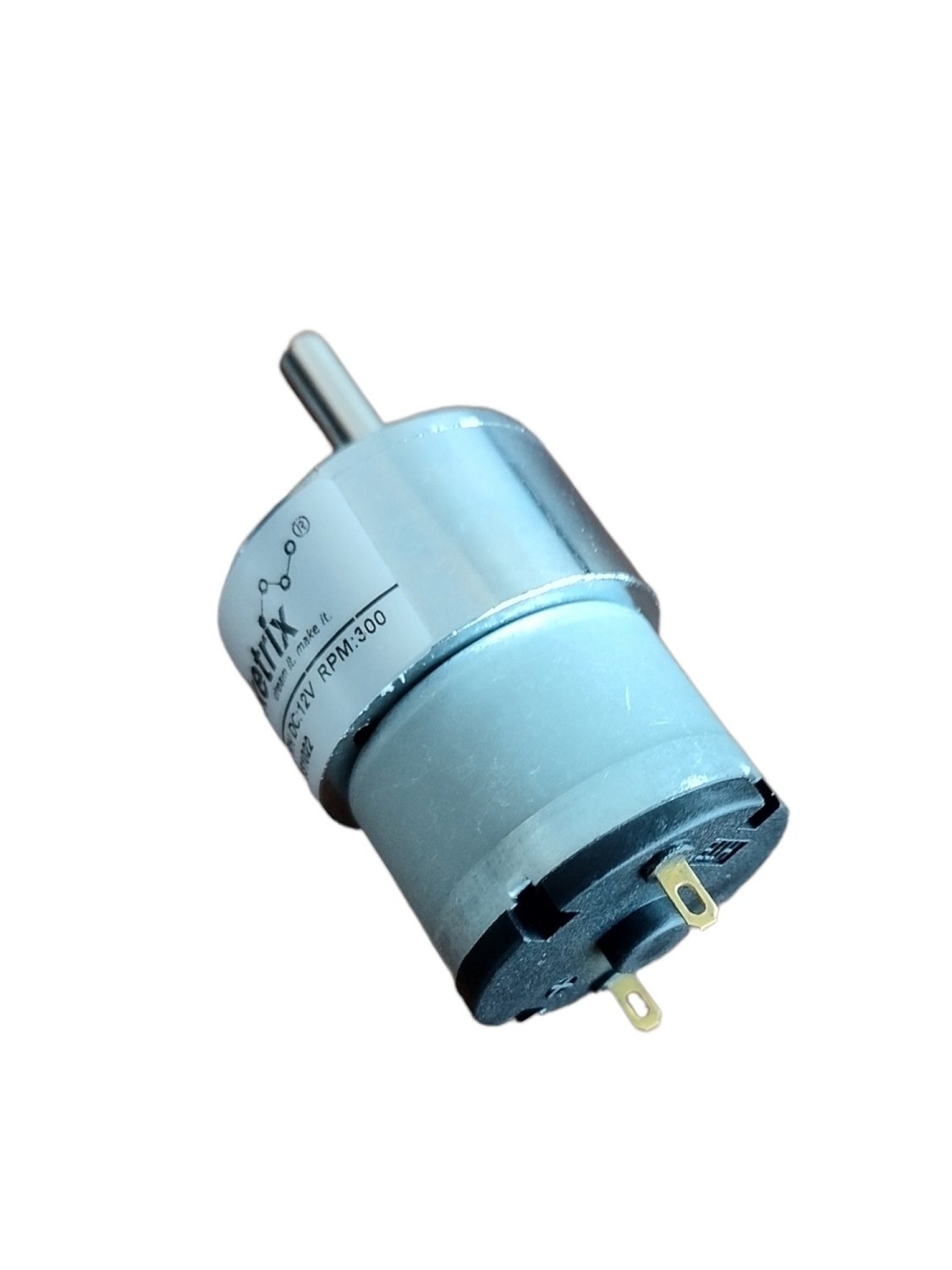

Offside Geared Motor 12V 500 RPM – High Torque is a new compact size motor at a low cost. The supply voltage is 12V. The overall body of the motor is made up of metal. The motor has a D type shaft with a shaft length of 20mm and a diameter of 6mm.

The vital application of this motor are Pan/ Tilt camera, auto shutter, welding machines, water meter, grill oven, Floor cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel dispenser, lighting , Coin refund devices, Peristaltic pump and many more.

Features:

• The lightweight and compact-sized motor with high performance.
• The Shaft is D type hence wheel/ coupling arrangement is simple.
• Useful for hobbyists and for a DIY project.

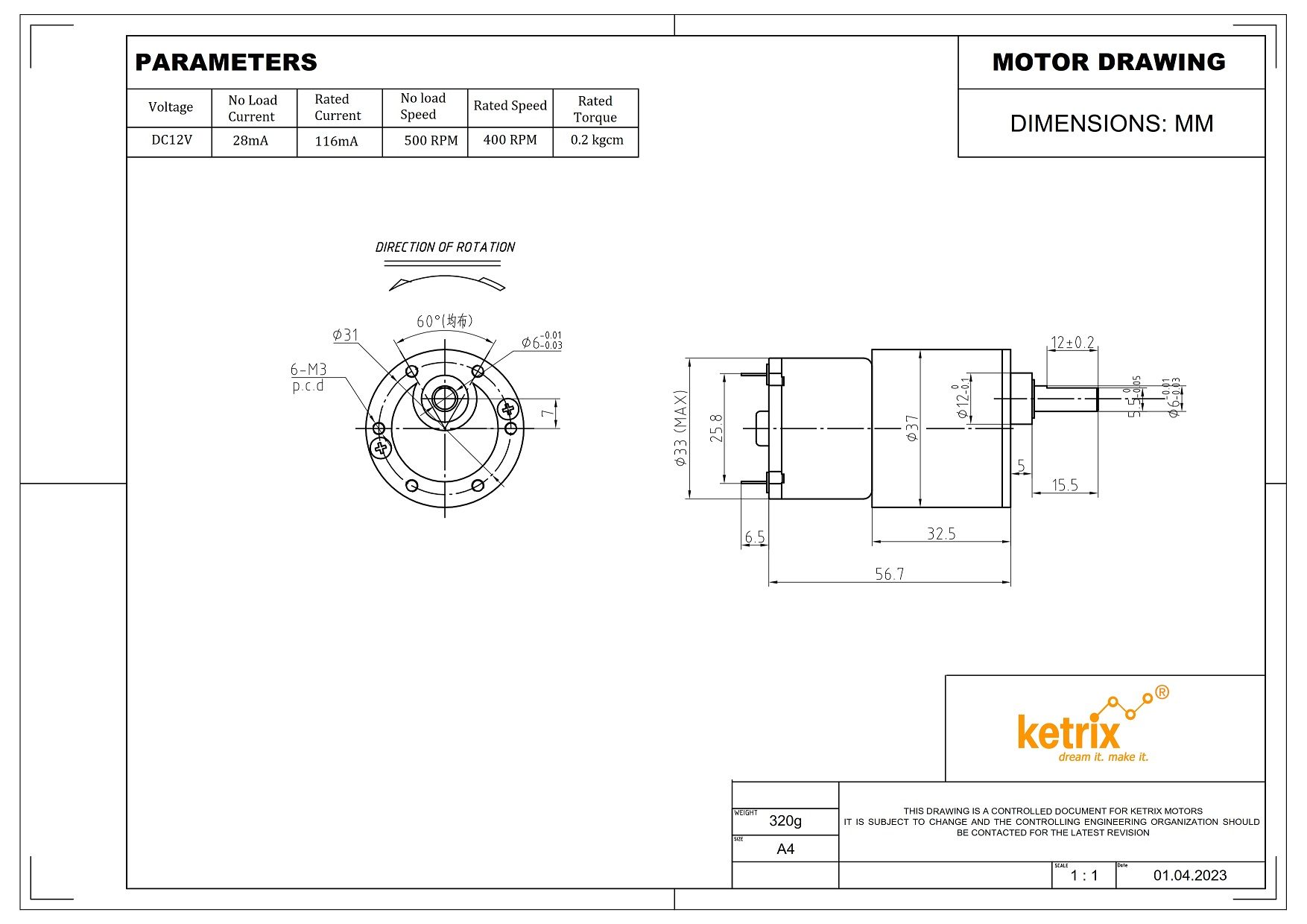

Specifications:

• Operating Voltage (VDC): 12
• Nominal Voltage (V): 12
• Gear Ratio: 9.3: 1
• Gear Material: Powder Metallurgy
• No Load Speed (RPM): 500
• Rated Speed (RPM): 400
• Rated Torque (kg-cm): 0.2
• Stall Torque (N-cm): 0.86
• Rated Power (W): 1.44
• No-Load Current (mA): 28
• Load Current Max (mA): 116
• Input Power (W): 1.44
• Output Power(Watt): 0.5
• Shaft Diameter (mm): 6
• Shaft Length (mm): 20
• Gearbox Diameter (mm): 22.5-32.5
• Motor Diameter(mm): 32.5
• Motor Length (mm): 24.3
• Weight (gm): 320

Package Includes:

• 1 x 12V 500 RPM Offside Geared Motor – High Torque
