OSD OLED Display for Pixhawk 2.4.8 PIX PX4 Flight Control

OSD OLED Display for Pixhawk 2.4.8 PIX PX4 Flight Control is suitable for flight control of Pixhawk, etc. and is used to display the status information of aircraft. This module is connected to Pixhawk’s I2C interface.

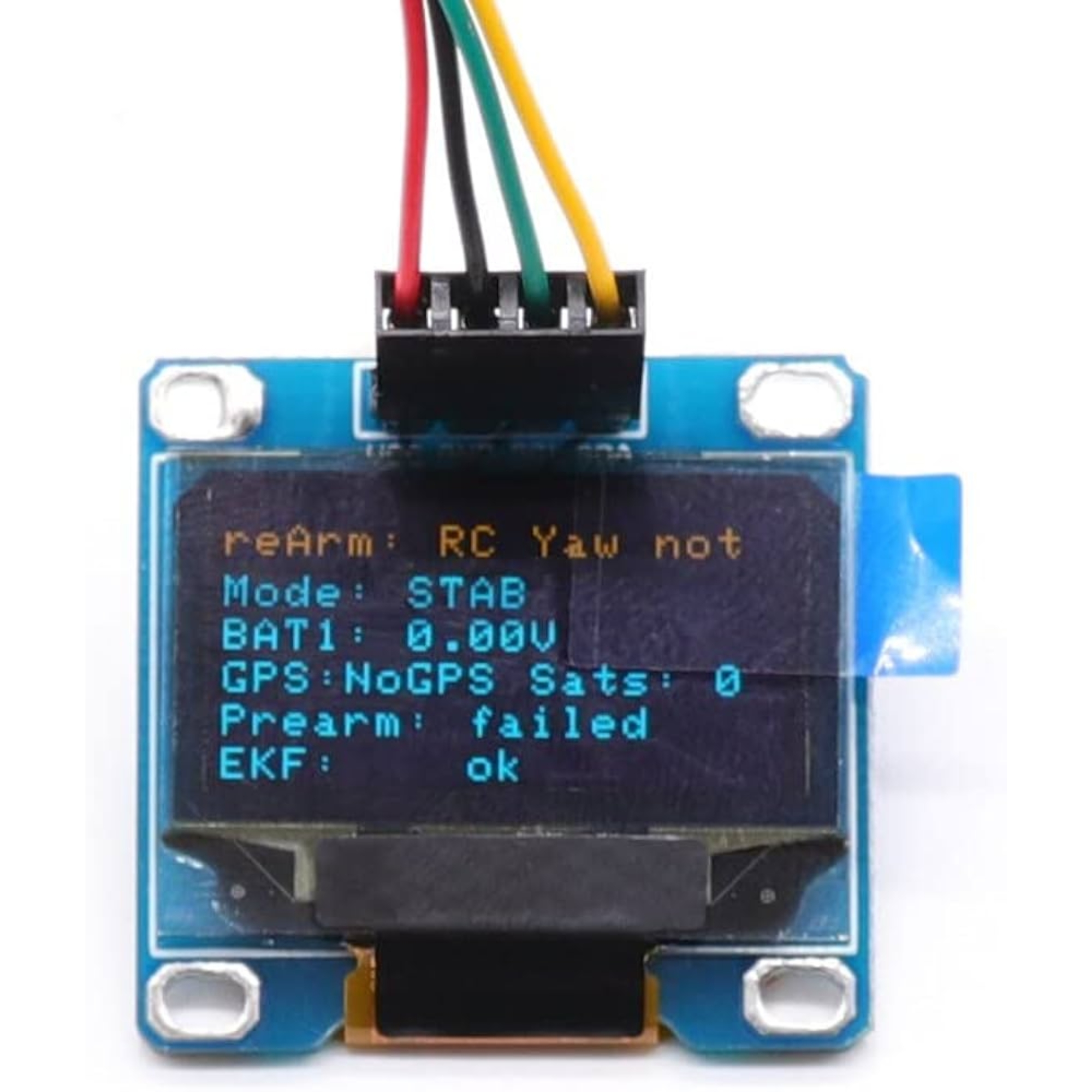

This information includes on Display:

• Arming failure messages
• Flight mode
• Battery voltage
• GPS Lock and satellite count
• Pre-arm passed/failed
• EKF status

Specifications:

• Product: OSD OLED Display
• Operating voltage: 3.3V-5V DC

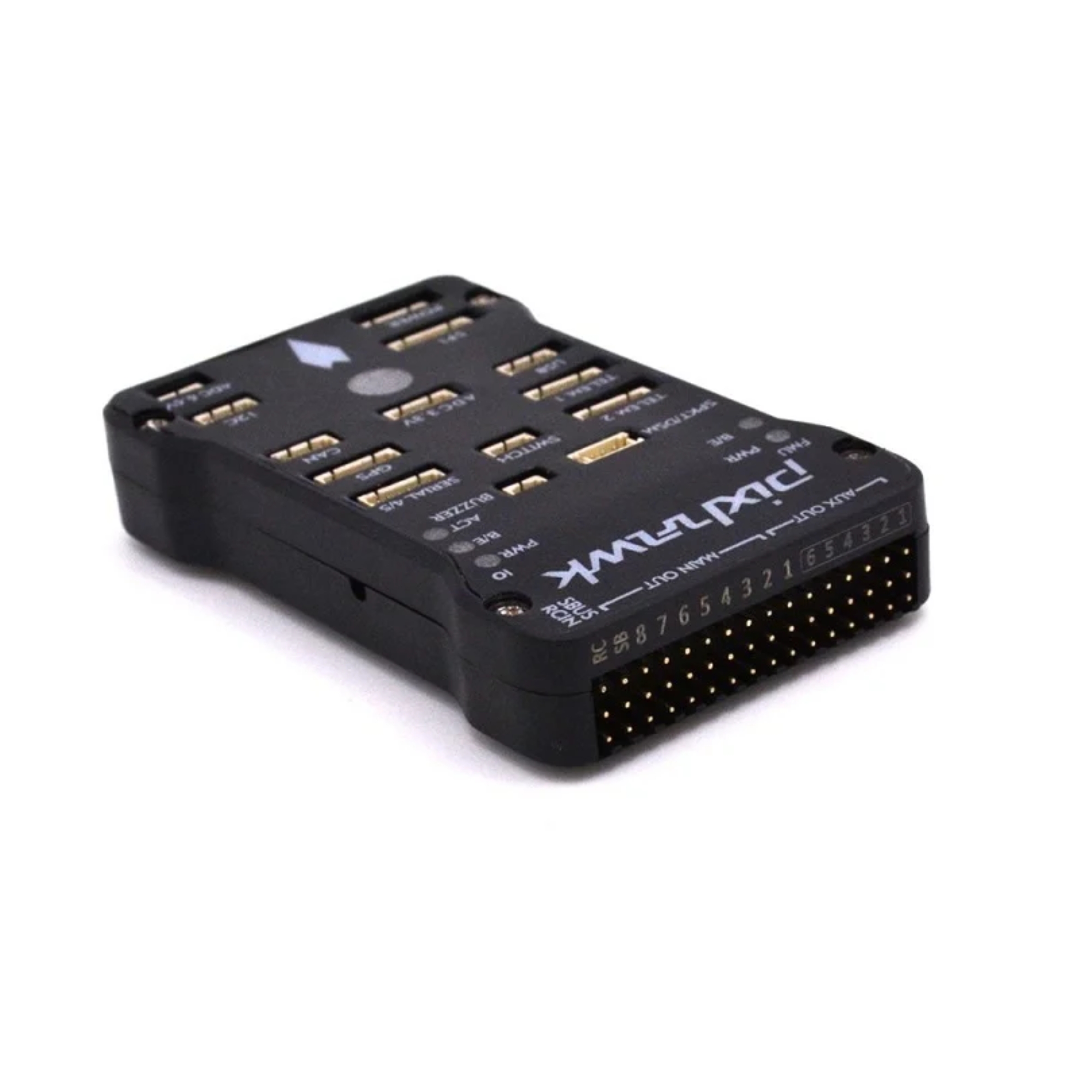

• Compatible: Pixhawk 2.4.8 PIX PX4 Flight Control
• Working temperature: -30°C ~ 70°C
• Display dimension: 2.5 x 1.4 x 0.1mm
• Over all dimension: 3 x 2.7 x 0.3mm
• Weight: 3

Connecting to an Autopilot:

• Connect Pixhawk with the mission planner software.
• Click on CONFIG Tab
• Click on the Full Parameter List Option.
• In Search box(in right side panel), search for NTF_DISPLAY_TYPE parameter.
• Change the value to 1 for that parameter.
• Power off the Pixhawk

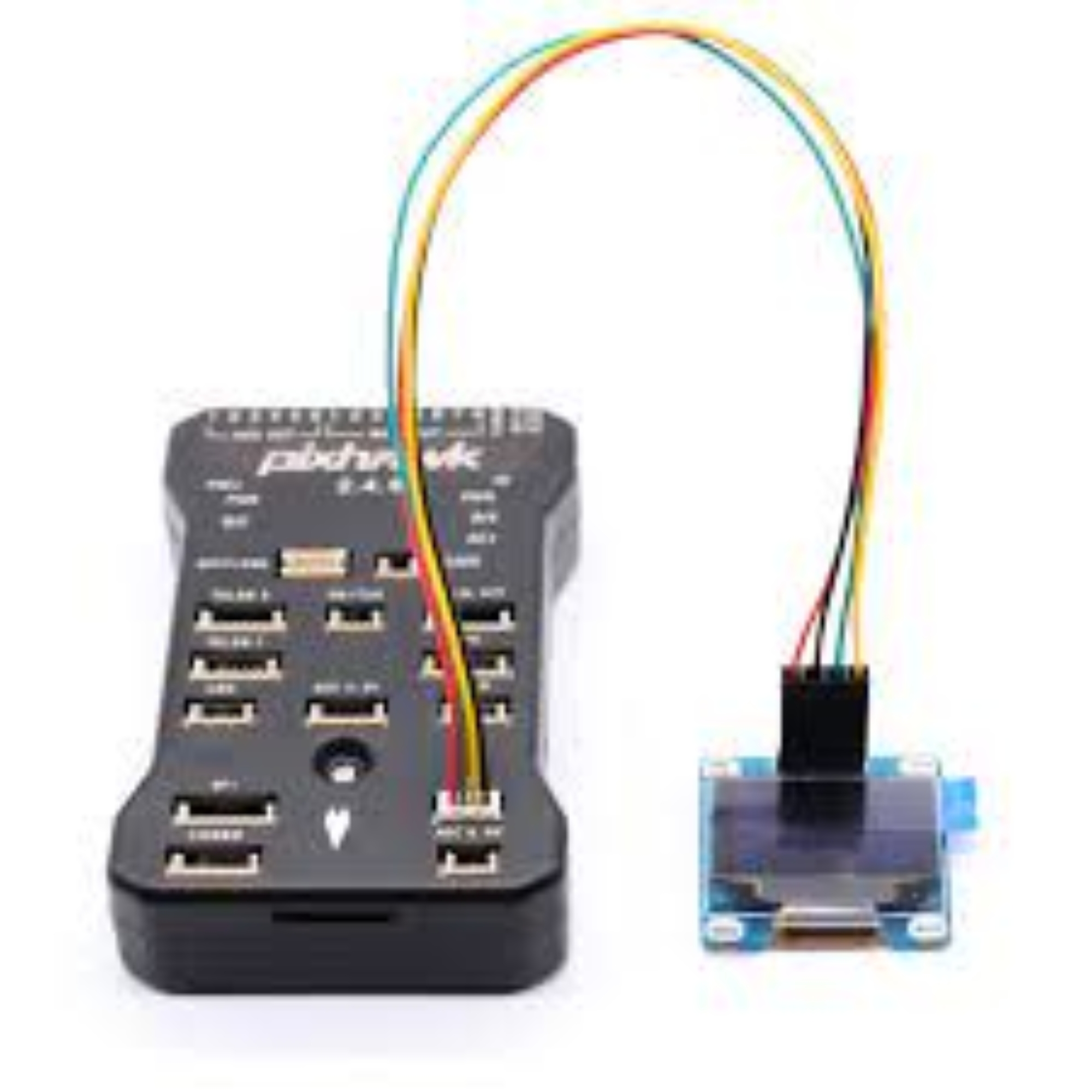

• Connect onboard display device to the 12C of the Pixhawk.
• Now power ON the Pixhawk

Package Includes:

• 1 x Pixhawk 0.96inch OLED Onboard Display Module.

Note:

• Pixhawk flight controller is not included.
