PCT-224 Quick Connector Terminal 4 In-4 Out, Lever Wire Connector
memory Technical Parameters & Datasheet Summary
SKU: ANIL2463This PCT-224 Quick Connector Terminal 4 In-4 Out is a 4-way lever wire connector designed to streamline your electrical connections with ease and precision. With its compact size of 39.5mmx23.2mmx15.6mm, the PCT-224 is perfect for tight spaces and installations where space is limited.

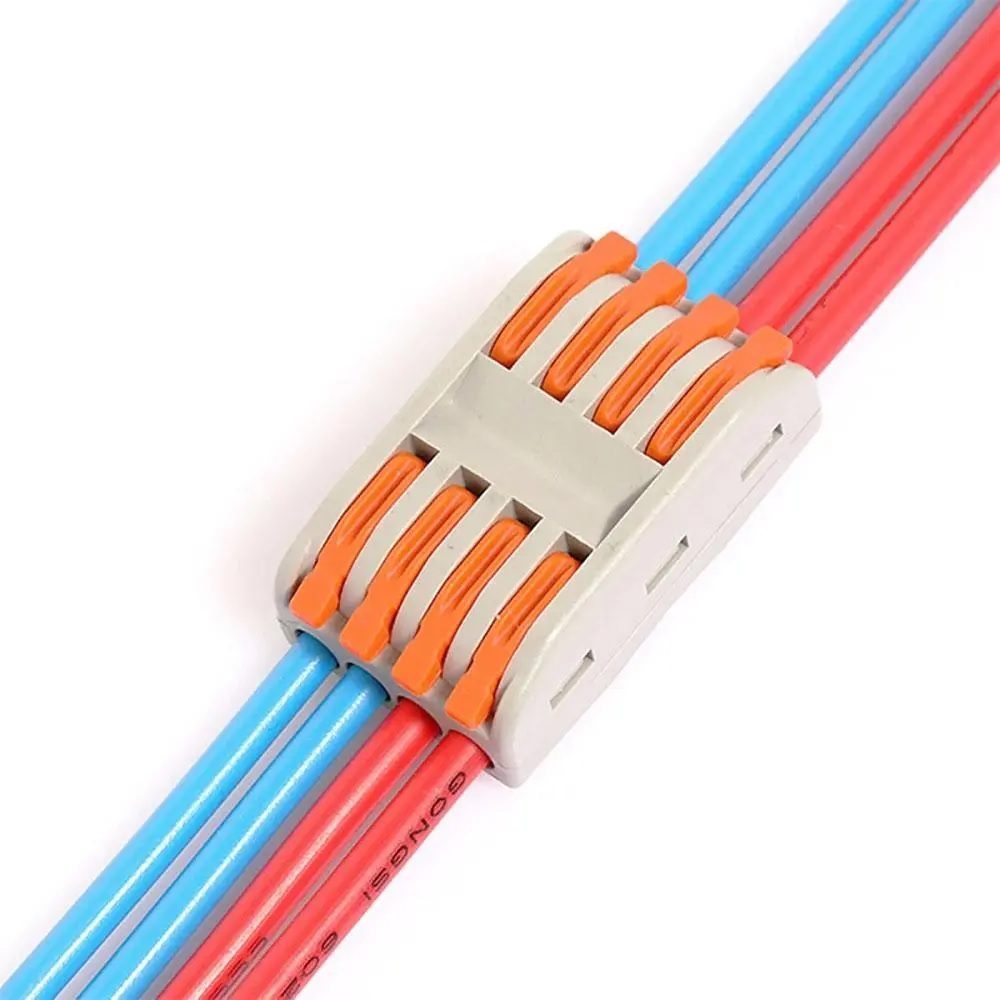

This innovative PCT-224 push-in terminal block design allows for effortless wiring connections, while the lever mechanism ensures secure and firm connections. Whether you’re working with hard wire ranging from 0.08mm2 to 4mm2 or soft wire ranging from 0.08mm2 to 2.5mm2, this versatile connector accommodates a wide range of wiring needs.
The PCT-224 lever wire connector is a trusted choice for a variety of applications, including electrical control, power wiring, distribution lines, household appliances, lighting, and machinery. Its ability to handle up to 250V, 6KW, and 32A makes it suitable for both residential and commercial use. This PCT-224 connector can tolerate the rated voltage up to 400V with an electric current peak of 32A. And the Strip length of the connector is about 9-10mm.
Features
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block With Operating Levers
- Max. Continuous Service Temperature 85°C
Specifications:
- Item Type: PCT
- Model: PCT-224
- Rated Current (A) 32
- Rated Voltage (V): 400
- Allowed Wire Size (mm2): hard wire 0.08-4mm2 or less, soft wire 0.08-2.5mm2 or less
- Allowed Wire Size (AWG): 28 ~ 12
- Color: Grey, Orange
- No of poles 4

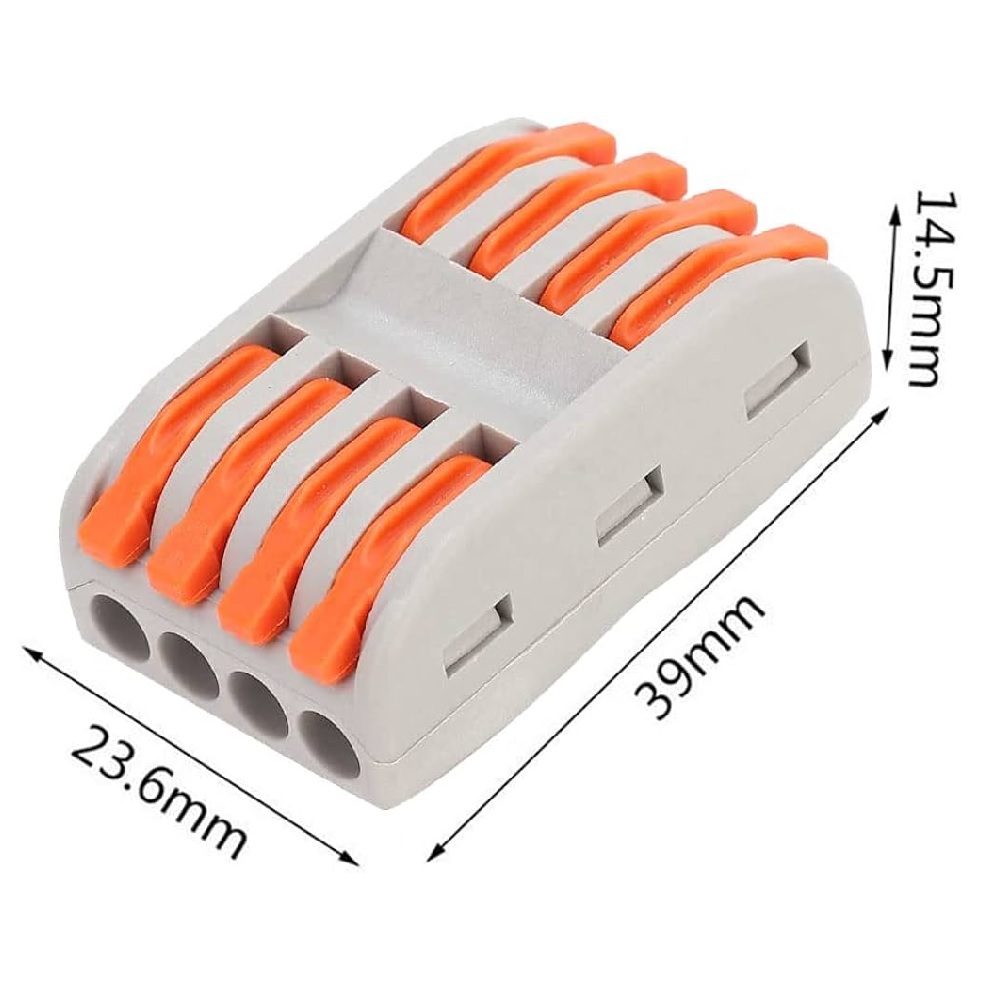

- Dimensions: 39.5mmx23.2mmx15.6mm
Package Includes:
- 1 x PCT-224 Quick Connect Lever Wire Connector
