Metal Gear Servo Motor RDS5180 80 Kg

Metal Gear Servo Motor RDS5180 80 Kg is a high-quality, high-torque servo motor for all your high-power robotics and RC needs. This servo is specially made for use in Hexapods, RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator and grippers, etc. Easily available libraries for Arduino & Raspberry Pi make it easy to use this servo motor in your project. This Metal Gear Servo Motor RDS5180 generates a massive 80kg1cm torque. We have carefully selected this servo motor for the best quality and performance among the numerous similar motors available in the market.

Servo Motors are a slightly different type of actuator. They rotate only fixed output angles and include angle feedback. The output shaft of this motor can be controlled to move to any angle between 0 and 180 degrees (approximately). Unlike DC and Stepper Motors. No external driver is required to control this servo motor. It accepts a PPM signal that controls the output angle. Can be directly connected to the output of a wireless RC Receiver to control it from the remote.

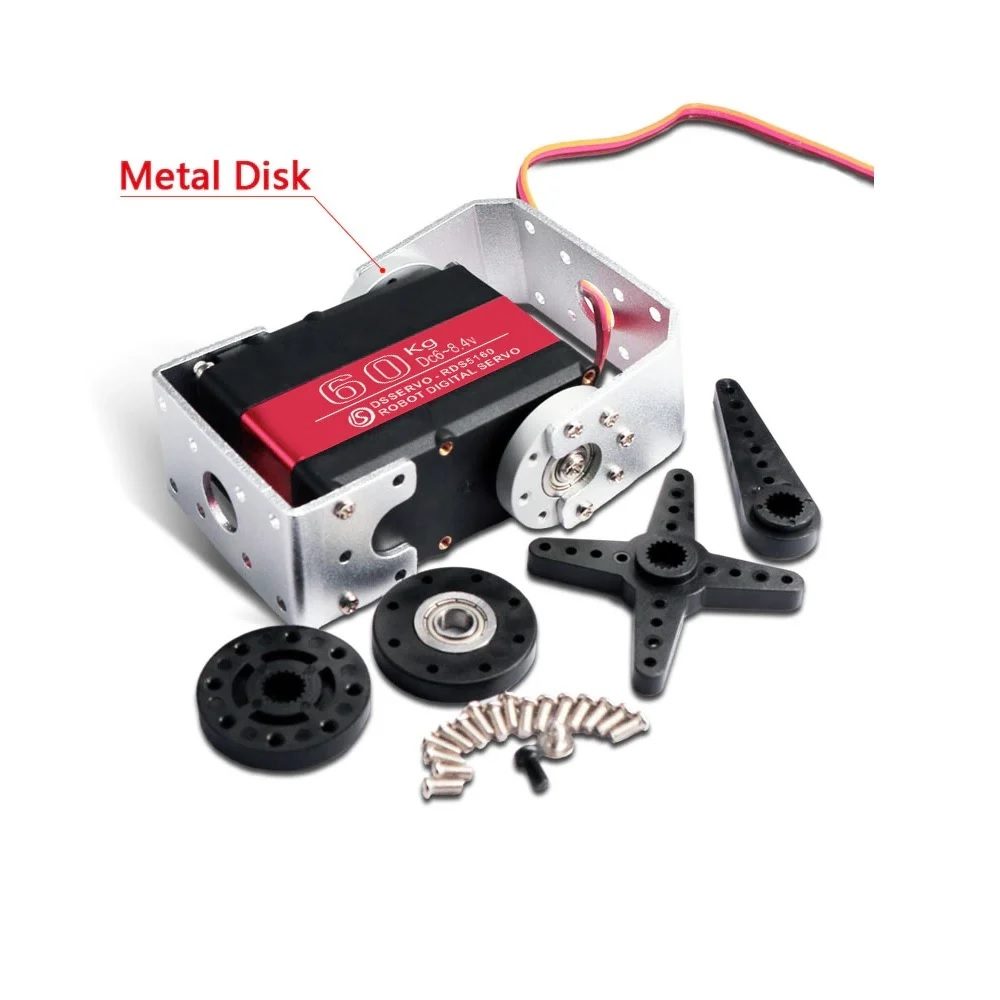

Metal Gear Servo Motor RDS5180 comes with a 3-pin power, control cable, control horns, and mounting hardware.

It comes in a standard 3-pin connector. It is simple and easy to control. It can be directly used with an Arduino and uses only a digital input/output pin.

Features:

• Model: Metal Gear Servo Motor RDS5180 180 degree
• High-performance Digital Metal Servo
• Digital Servo with quick response to digital input and high accuracy. Holds the requested angle at higher precision compared to normal servos

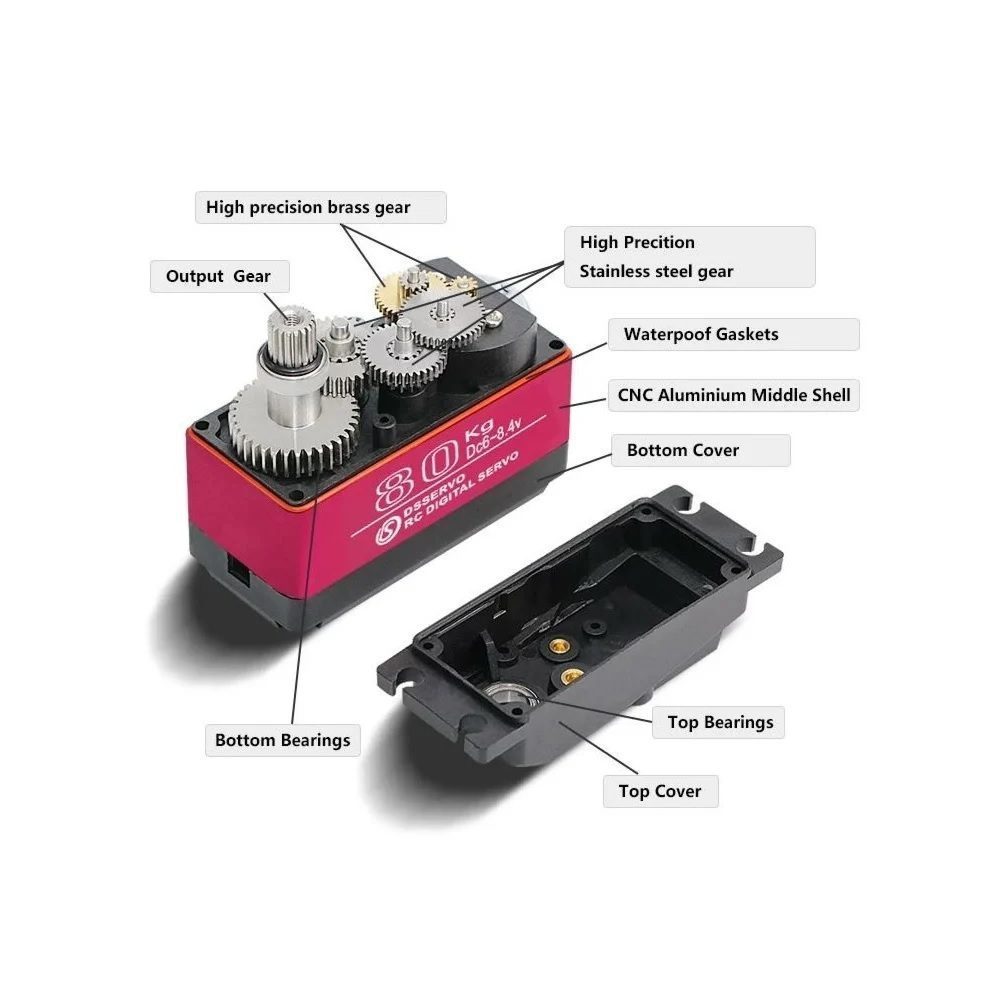

• Metal Gear Construction ensures the high torque rating of this motor doesn’t damage the internal gears during stall events
• The output shaft can rotate between 0 and 180 degrees (approximately)
• High-precision metal gears with hard anodizing
• CNC aluminum middle Shell
• Dual ball bearings

Connections:

• Steering gear three-wire connection: red positive brown negative orange signal, or red positive black negative white signal.
• The steering gear has three lines: the red line is connected to the positive electrode, the brown line is connected to the negative electrode, and the orange line is the signal line

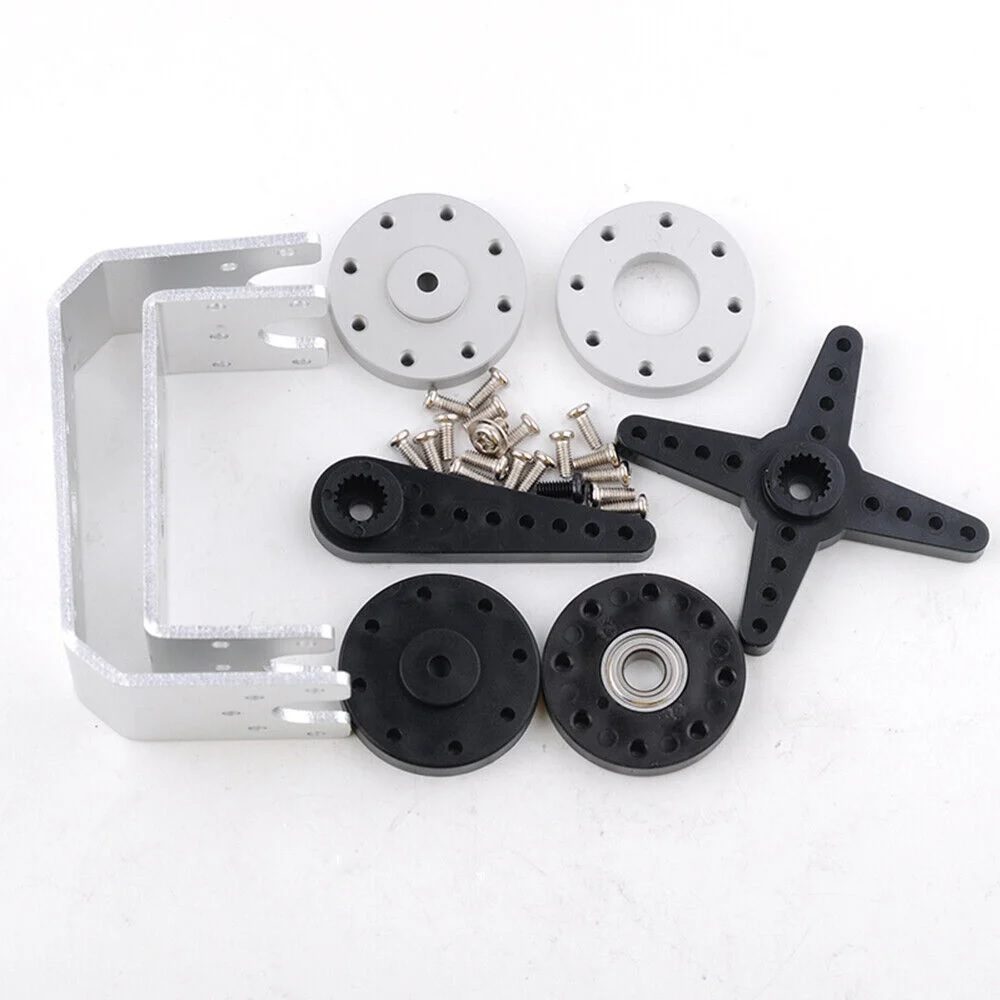

Package Includes:

• 1 x Metal Gear servo motor RDS5180, 80 Kg
• 1 x Servo Arm 18T
• 1 x Set of Horns, Screws & other accessories

Note:

• The accessories horn set is usually black in color.
• Please note that the color & the accessories set can be different from the image shown depending on the availability.
