TowerPro SG90 9g Micro Servo Motor – 180 Degree Rotation

TowerPro SG90 9g Micro Servo Motor – 180 Degree Rotation is lightweight, high-quality and lightning-fast. The servo is designed to work with almost all the radio control systems. It is with excellent performance and high torque of 1.5 kg cm gives you the freedom to use it for a variety of projects. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat and truck use.

The TowerPro SG90 9g Mini Servo is 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

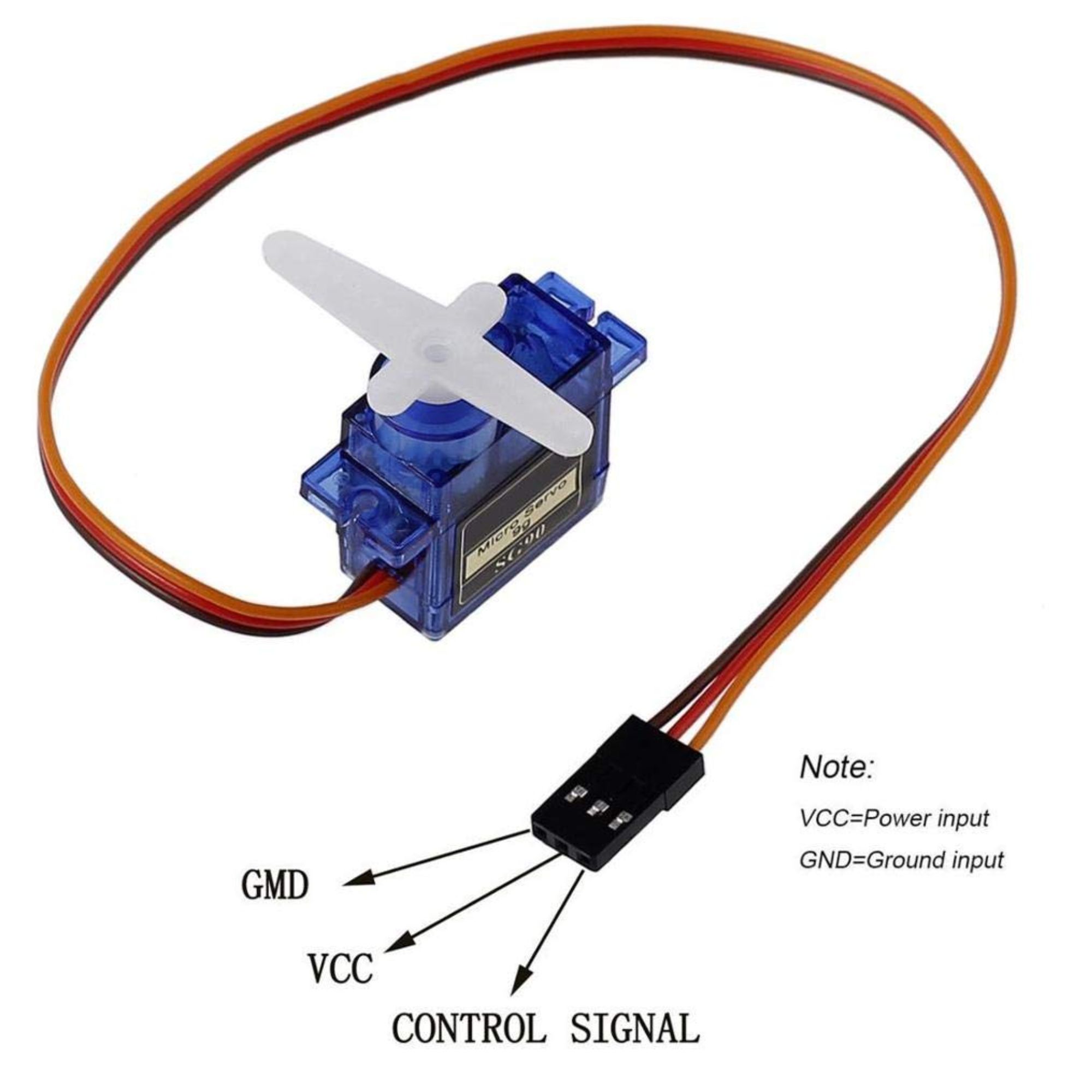

Wire Description

• RED – Positive
• Brown – Negative
• Orange – Signal

Features :

• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Specifications:

• Model: SG90
• Weight(gm): 9
• Operating Voltage: 3.0 – 7.2 V
• Operating Speed @4.8V: 0.12sec/60°
• Stall Torque @4.8V: 1.2 kg-cm
• Stall Torque @6.6V: 1.6 kg-cm
• Dead Band Width: 7 μs
• Gear Type: Glass Fiber
• Rotational Degree: 180
• Servo Plug: JR
• Cable Length: 25 mm
• Length (mm): 22
• Width (mm): 11.5
• Height (mm): 30

Package Includes :

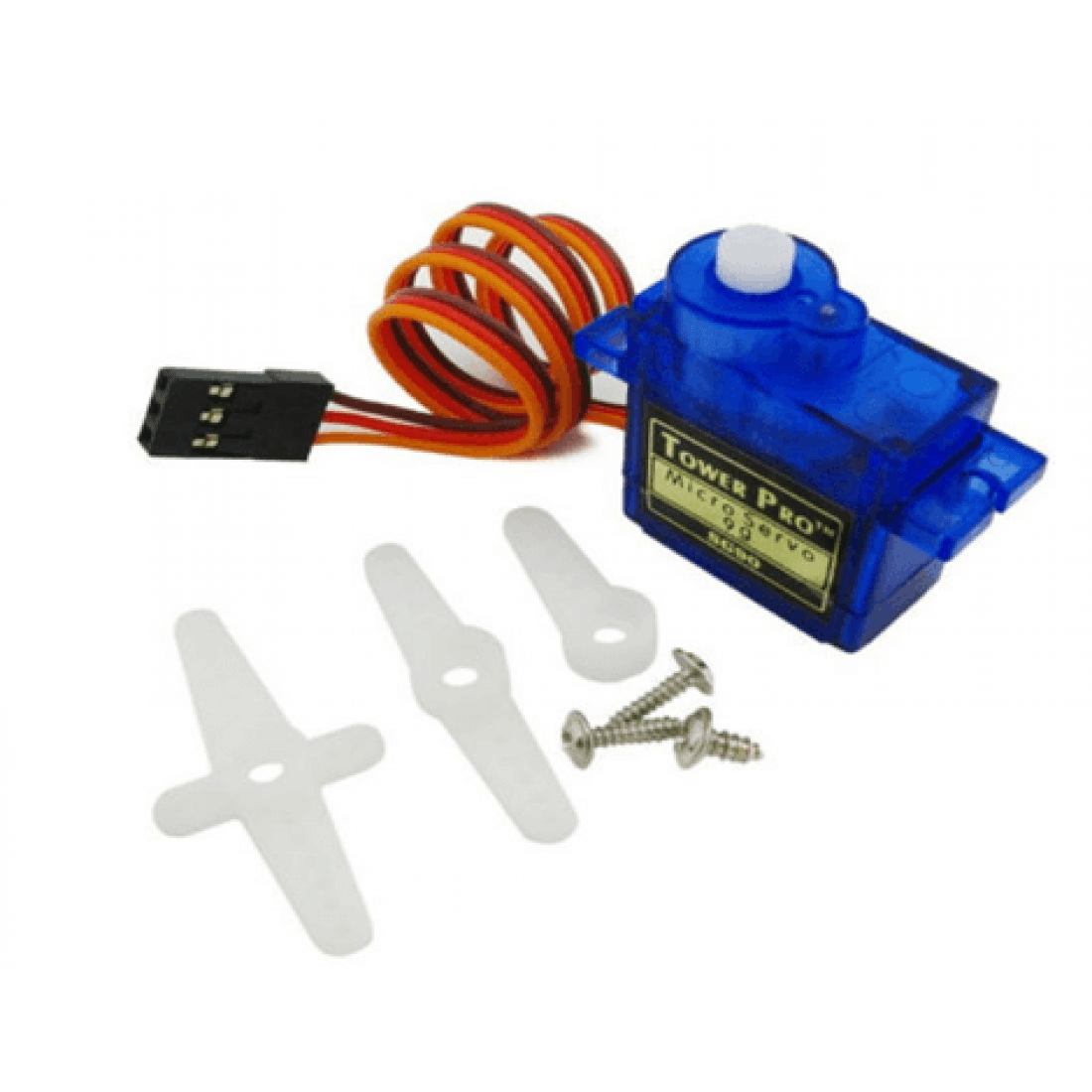

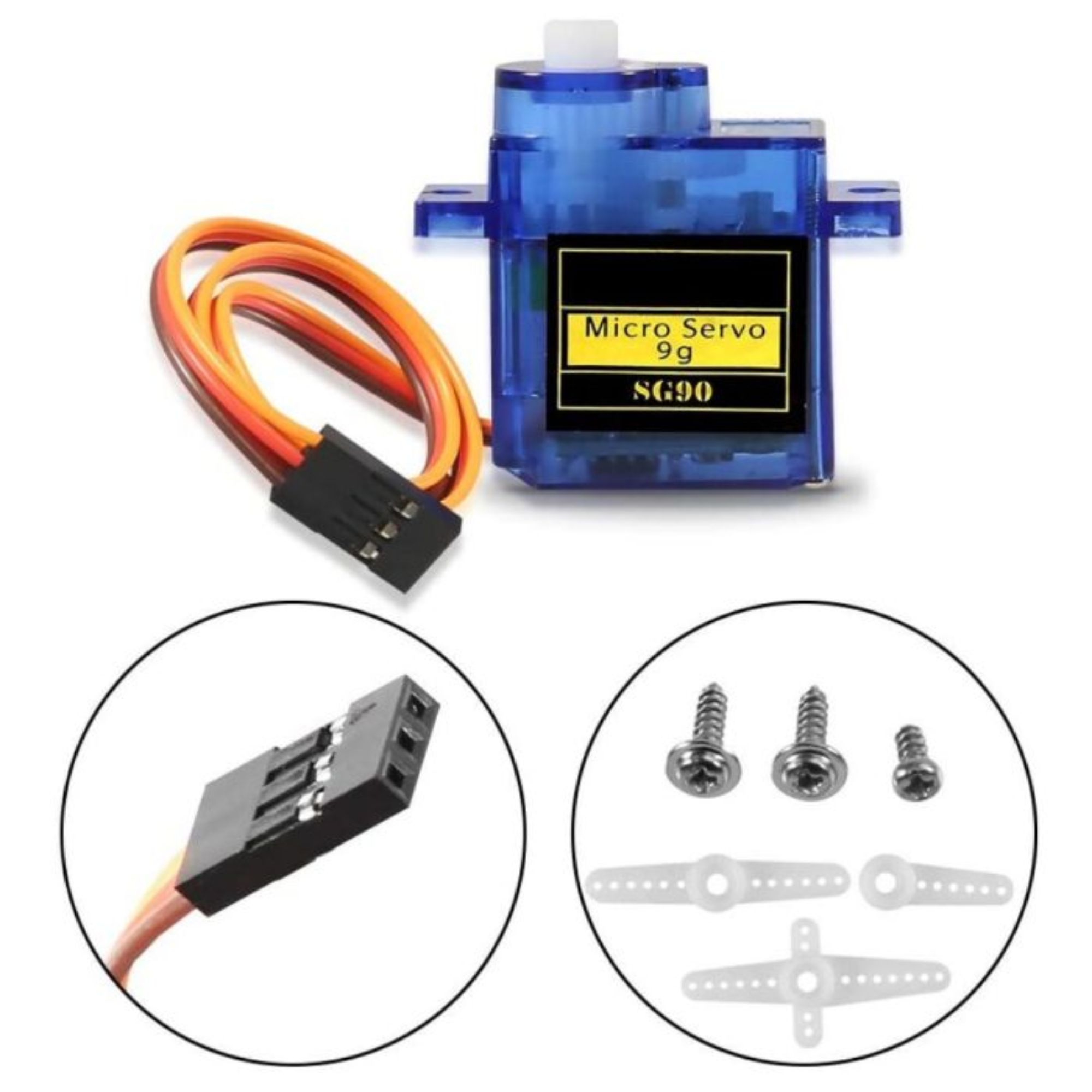

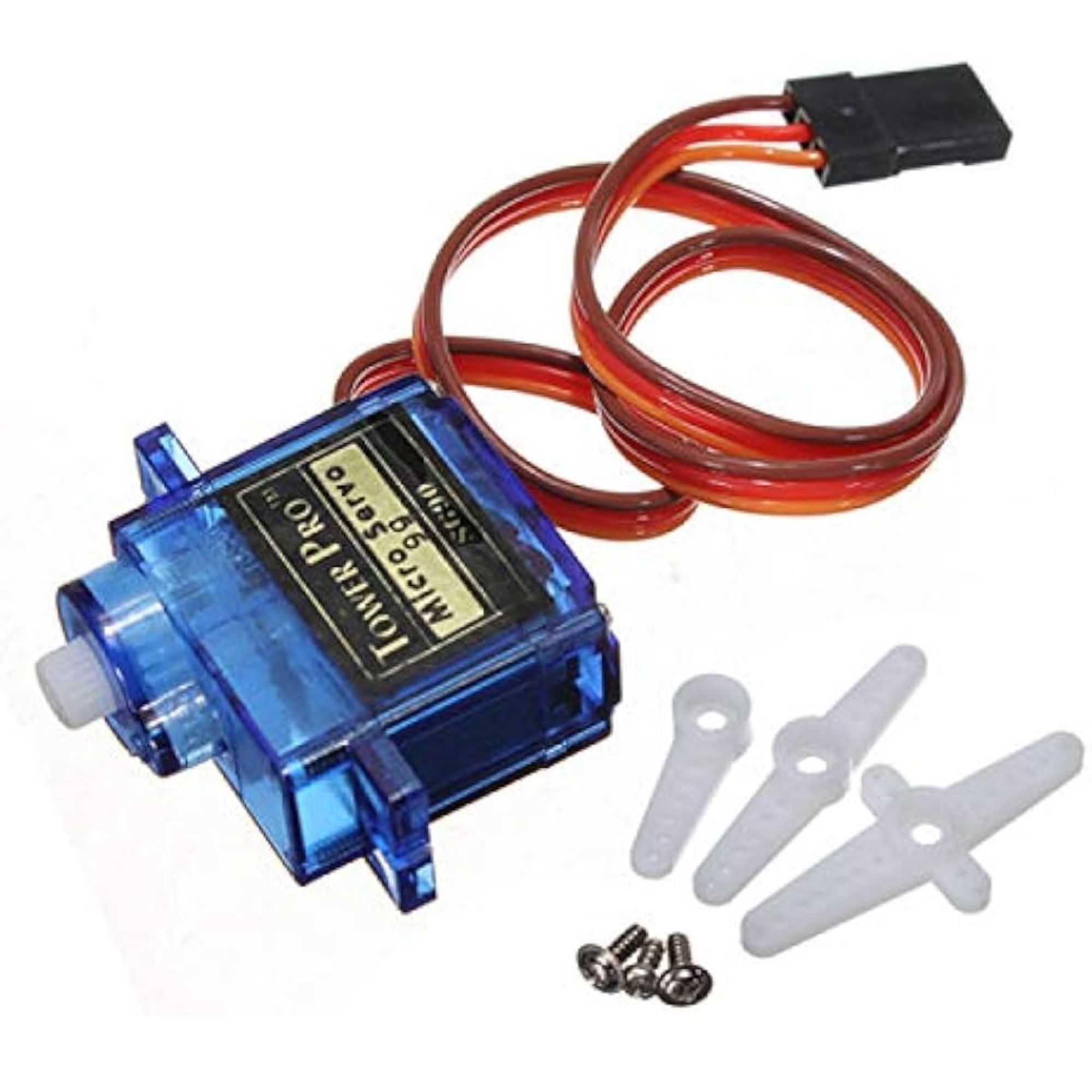

• 1 x TowerPro SG90 9g Mini Servo Motor with Cable
