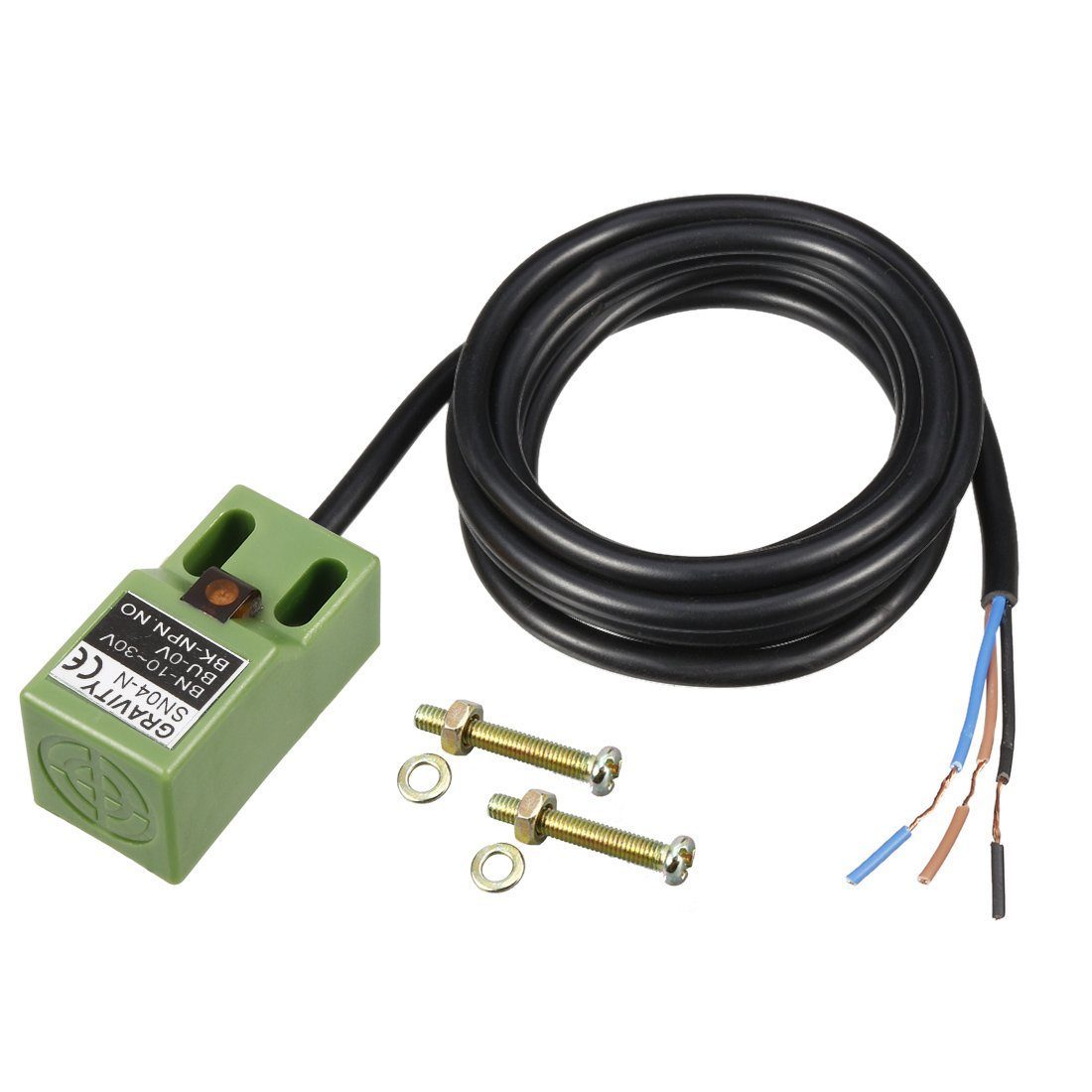

SN04-N NPN NO 5mm 6-36V Detection Distance Proximity Detector Sensor

SN04-N NPN NO 5mm 6-36V Detection Distance Proximity Detector Sensor  will detect the presence of a metallic object within 5 mm of the surface of the sensor.

The detection distance of this NPN NO Proximity sensor may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.

Features :

• Red LED checks the state of the proximity sensor
• High repeated positioning accuracy
• High switching frequency
• Wide voltage range
• Anti Vibration, dust, water and oil prevention
• Reverse power protection, short circuit protection, directly connecting with PLC
• It can replace small switches and limit switches.

Specifications:

• Model: SN04-N
• Type: Inductive
• Detection distance: 5 mm
• Output Type: NO(Normally Open)
• Operating Voltage: 10 ~ 30VDC
• Current Consumption (mA): 5
• Cable Length: 145cm
• Material: ABS Plastic
• Operating Indicator: Red LED
• Length (mm): 36
• Width (mm): 18
• Height (mm): 18
• Weight (gm): 45

Wire Connections:

• Brown wire: 10 ~ 30 VDC (+Ve).
• Blue wire: 0 V (GND).
• Black wire: signal.

Note: This product is available in two colors as Green and Blue, which are shipped randomly to our customers.

Package Includes :

• 1 x SN04-N NPN NO Sensor 5 mm Distance Detector Proximity Switch Module
