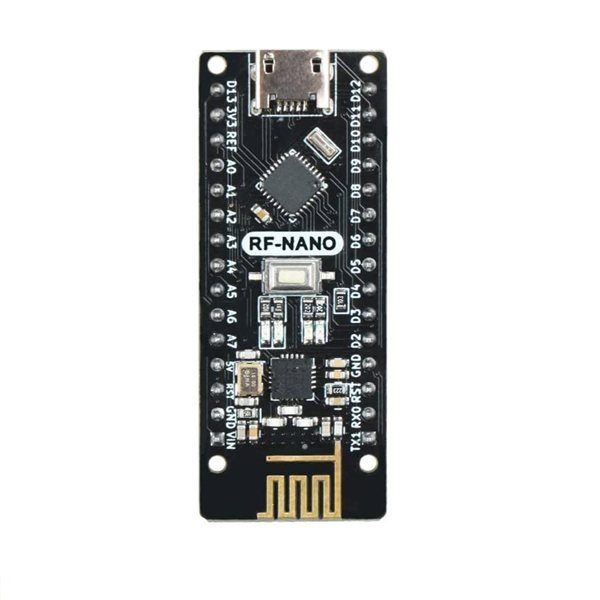

RF Nano Integrated NRF24L01 Wireless Module with Soldering

The RF Nano Integrated NRF24L01 Wireless Module is a compact wireless communication module that incorporates the NRF24L01 transceiver chip. It is characterized by its compact size and integration capabilities, making it suitable for applications where space is limited.

The module is designed to provide wireless communication capabilities to electronic devices and microcontroller-based systems. It operates in the 2.4GHz ISM (Industrial, Scientific, and Medical) band and supports various wireless protocols such as the Nordic Gazell protocol, which is commonly used for low-power applications.

The RF Nano Integrated NRF24L01 Wireless Module typically includes an onboard antenna, a voltage regulator, and necessary circuitry for interfacing with a microcontroller or other electronic devices. It offers a simple and cost-effective solution for implementing wireless communication in projects that require low power consumption and short-range communication. The Nano Board has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers.

Features:

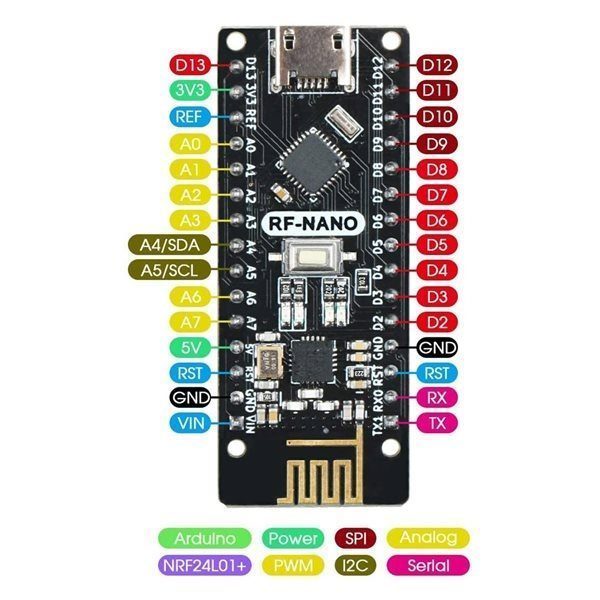

• RF-Nano board is PIN-PIN with Arduino Nano V3.0 and share the same codes.
• The main chip is ATMEGA328P-MU QFN32 with the latest bootloader (Arduino IDE 1.8.8).

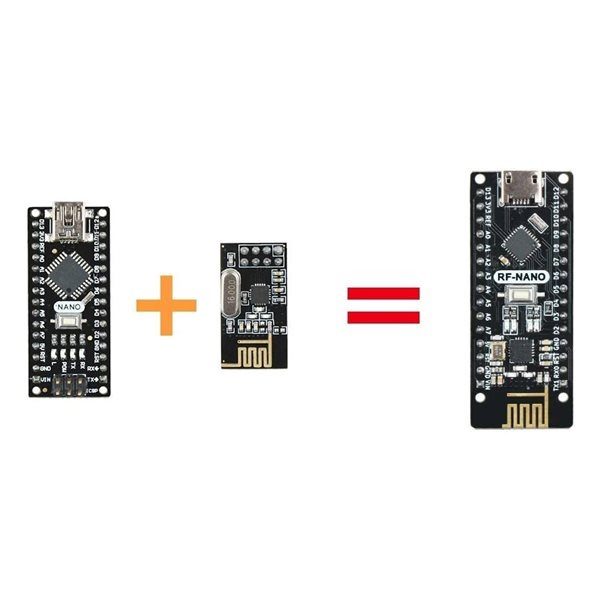

• More convenient for application: RF-Nano board integrates a NRF24L01+ module with Arduino Nano
• v3.0 board, which is very convenient for 2.4G wireless connect application.
• Super small volume design, more convenient to use, no soldering needed.
• Designed to operate in low-power modes, making it suitable for battery-powered applications

Specification:

• Microcontroller: ATmega328P-MU QFN32
• Wireless: Nrf24L01+ 2.4G
• Work channel: 2.4G
• Input voltage: USB power supply, Vin 6-12V
• Operating Voltage: 5V
• Flash Memory: 32KB of which 2KB (bootloader)
• SRAM: 2KB
• Clock Speed: 16MHz
• Analog I/O Pins: 8
• EEPROM: 1KB
• DC Current per I/O Pins: 40mA (I/O Pins)
• Digital I/O Pins: 12
• PWM Output: 6
• Power Consumption: 19mA
• Interface: Micro-USB
• Dimensions: 48x19x12mm
• Weight: 9g

Package Includes:

• 1 x RF Nano Board Integrated NRF24L01 Wireless Module with Soldering

Useful Link :

• RF Nano GITHUB
