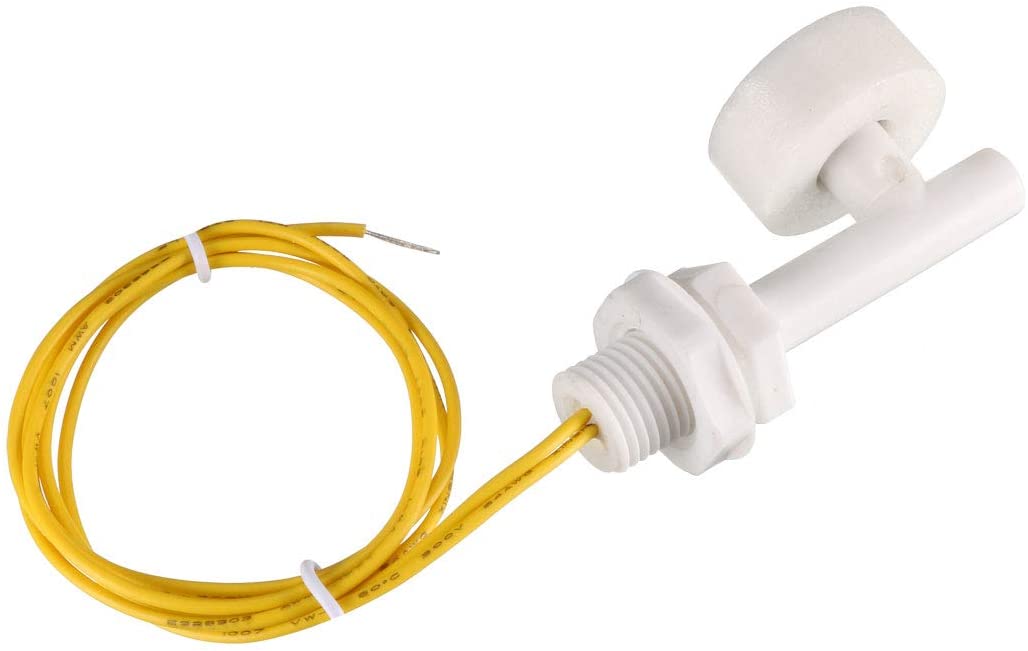

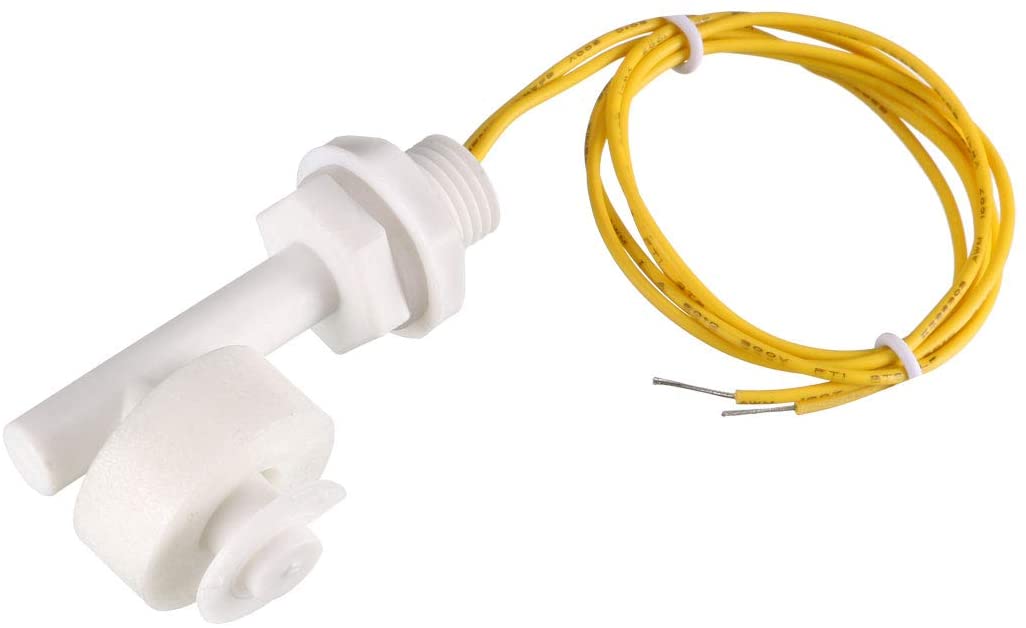

Side Mounted Small Float Level Control Switch Plastic Float Switch 55mm

Side Mounted Small Float Level Control Switch Plastic Float Switch 55mm is a type of level sensor, a device used to detect the level of liquid within a tank. It is neither a complicated circuit nor does it provide power. It is a simple structure, easy to use level control device; furthermore, this switch has a mechanical switch than those of the average small sized switches.

As long as the material used is in the correct shape and nature of any liquid or pressure, you can control the temperature. Applications of this Switch include shipbuilding industry, generating equipment, petrochemical and food industry, water treatment equipment, dyeing, and finishing industry, and hydraulic machinery.

Features:

• Reed switch contact material is rhodium (rhodium oxide surface coverage)
• Special handling reed switches can make it in 140 ˚C high temperature under normal use
• Overall performance and reliable float switch
• Long-lasting life: Up to 100 million times
• Switch Length: 55 mm
• Cable Length: 300 mm

Specifications:

• Max. Switching Voltage: 100 VDC
• Max. Switching Current: 0.5 A
• Operating Temperature(˚C): -30 to 140

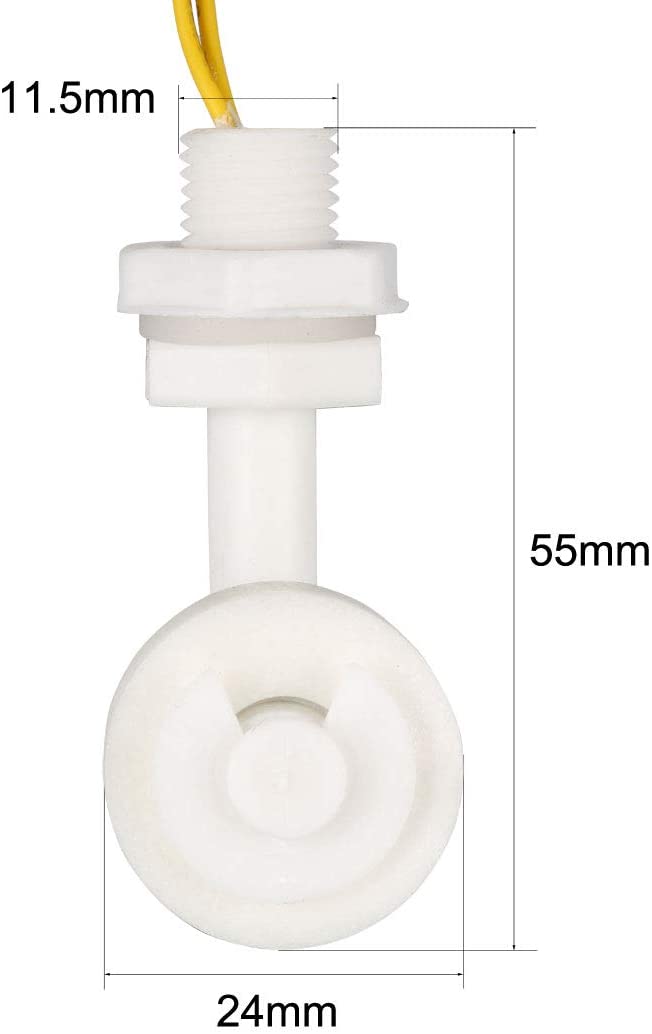

• Length of Body (mm): 54
• Outer diameter (mm): 24
• Cable Length (cm): 35

Package Includes:

• 1 x Side Mounted Small Float Level Control Switch Plastic Float Switch 55mm
