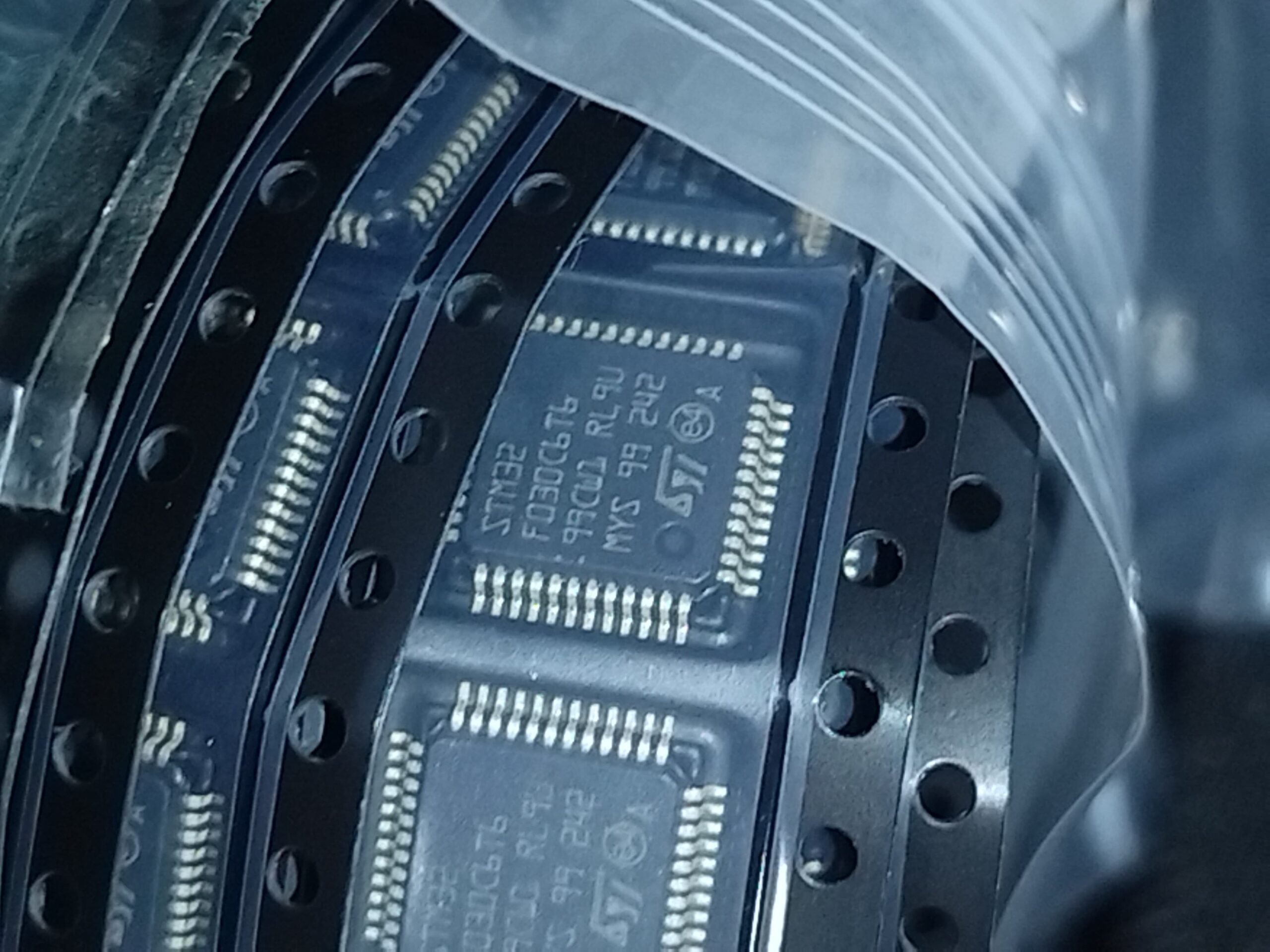

STM32F030C6T6 ARM Cortex-M0 Microcontroller 32KB Flash, 48MHz, LQFP-48 | STMicroelectronics

The STM32F030C6T6 ARM Cortex-M0 Microcontroller is a high-performance 32-bit ARM® Cortex®-M0 microcontroller from STMicroelectronics, designed for cost-sensitive and space-constrained embedded applications. It offers a powerful blend of performance, efficiency, and rich peripheral integration in a compact LQFP-48 package.

With a core speed of 48 MHz, 32KB Flash memory, 4KB SRAM, and multiple timers, I2C, SPI, UART, ADC, and GPIOs, this MCU is ideal for industrial control, motor drivers, smart sensors, and IoT edge devices.

Features:

• Operating voltage ranges from 2.4V to 3.6V
• 32Kbytes of flash memory
• 4Kbytes of SRAM with HW parity
• CRC calculation unit
• 39 fast I/O ports
• 5 channel DMA controller
• Calendar RTC with alarm and periodic wakeup from stop/standby
• One 12bit, 1.0µs ADC (up to 12 channels)
• Ambient operating temperature ranges from -40°C to 85°C
• Features one I2C, one SPI, and one USART interface

Specifications:

• Part Number: STM32F030C6T6
• Make: STMicroelectronics
• Core: ARM Cortex-M0, 32-bit, up to 48 MHz
• Flash Memory: 32 KB
• SRAM: 4 KB
• Package: LQFP-48 (7mm x 7mm)
• GPIOs: Up to 37 I/Os
• Timers: 5 timers including advanced-control timer
• Communication Interfaces: 2x I2C, 2x SPI, 1x USART + 1x UART
• Analog Features: 12-bit ADC (up to 1 Msps), 16 channels, Internal reference voltage
• Watchdog Timers: Independent and window watchdogs
• Clock Source: Internal 8 MHz RC + optional external crystal
• Operating Voltage: 2.4V to 3.6V
• Low Power Modes: Sleep, Stop, and Standby

Applications:

• Industrial automation and control
• Motor drivers and smart actuators
• IoT sensor nodes and edge computing
• Consumer electronics and home automation
• Battery-powered and low-power embedded systems
• Educational development with STM32 and CMSIS libraries

Package Includes:

• 1 x STMicroelectronics STM32F030C6T6 ARM Cortex-M0 Microcontroller

Useful Links:

• STM32F030C6T6 Microcontroller Datasheet
