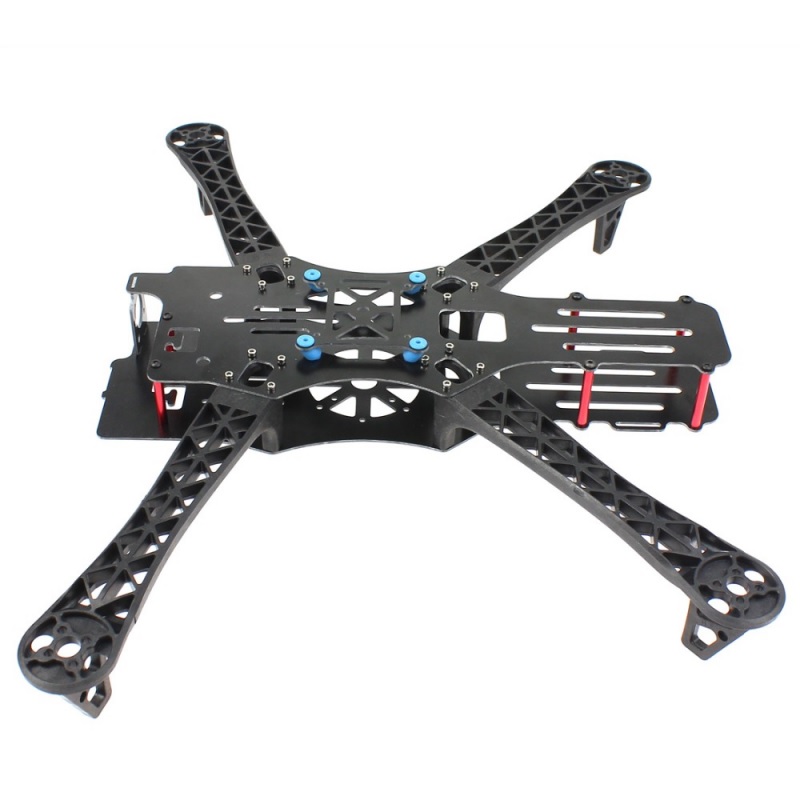

TBS 500 Glass Fiber Frame Kit

This is a TBS 500 Glass Fiber Frame Kit. This quadcopter frame with the wheelbase of 500mm is specially intended to provide lots of mounting space. It is well known for aerial video shooting and photography as it has special Gimbal housing provision at front. The TBS quadcopter frames outperform similar quads in terms of FPV range and video link quality.

It features a battery plate in the tail position. These large sized quadcopter frames equip larger motors and batteries, so increasing the power capabilities of your multirotor. This advantage results in a longer flight time, hence they are perfect for your aerial videography.

This TBS 500 Glass Fiber Frame Kit is made from Carbon Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

It comes with PDB(Power Distribution Board) to power up the Quadcopter. And, is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The TBS 500 Quadcopter Frame equips anodized alloy spacers.

The frame has the wheelbase of 500mm and weighs around 400gm. It features mounting tab at the rear end on the bottom plate of the main frame for mounting Batteries.

The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and Gimbal.

The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the main frame is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one size hex wrench which makes hardware mounting very convenient. This feature of TBS Quadcopter Frames makes them so easy to assemble and disassemble.

Note: This is not an original TBS 500 Glass Fiber Frame Kit product, but a high-quality clone of one.

Features :

• Made by advanced engineering material, super strong & smooth
• The arm equips support ridges for better and faster forward flight.
• Features pre-threaded brass sleeves.
• The large mounting tab for camera mounting.

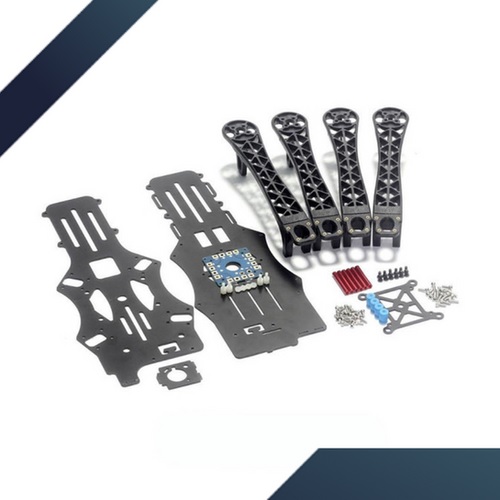

Package Includes :

• 2 x TBS500 Mainframe plates
• 1 x Power distribution board
• 6 x Spacers with anodized screws
• Set of Screws

Recommendation (NOT Included ) :

• Propeller: “1045″ OR “8045” Propeller (CW & CCW)
• Battery: 3S LiPo (1800 – 3600mAh)
• ESC: 15A – 40A.
• Motor: 800-1100 KV (brushless dc motor)
