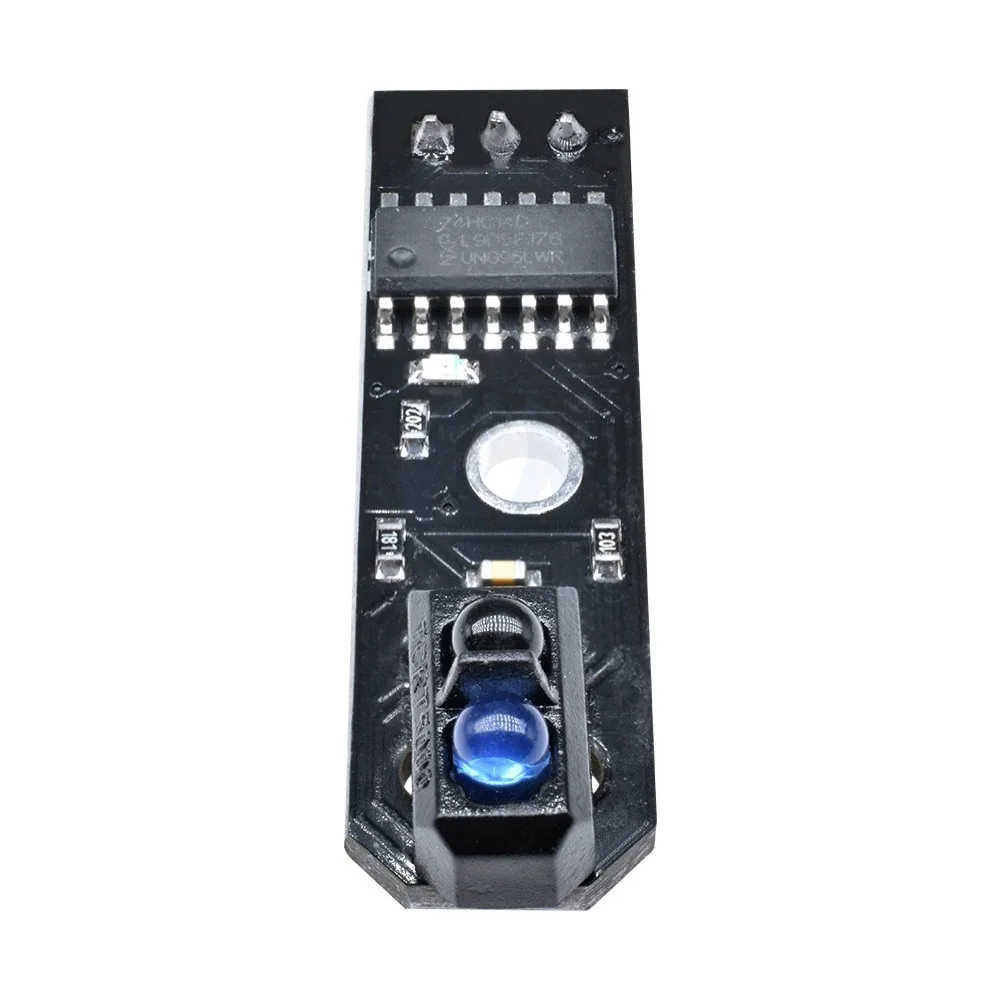

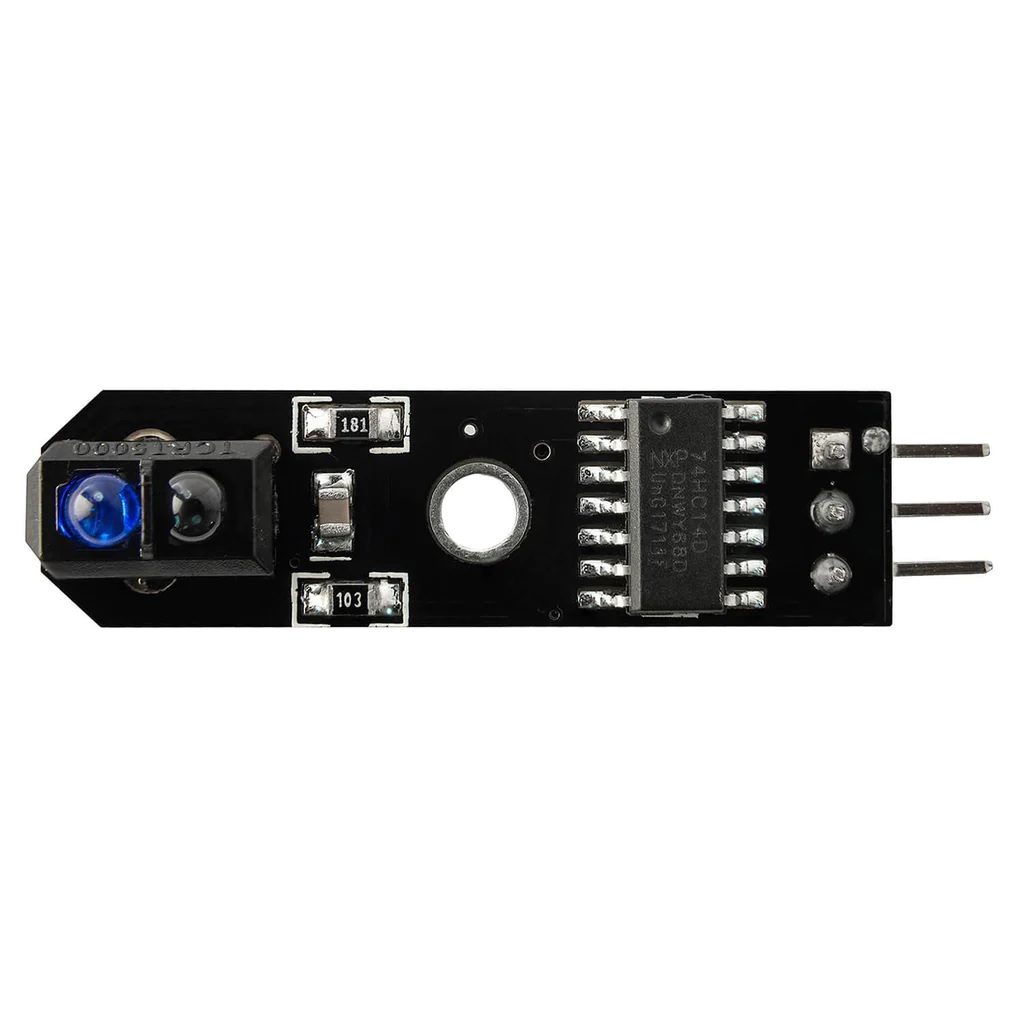

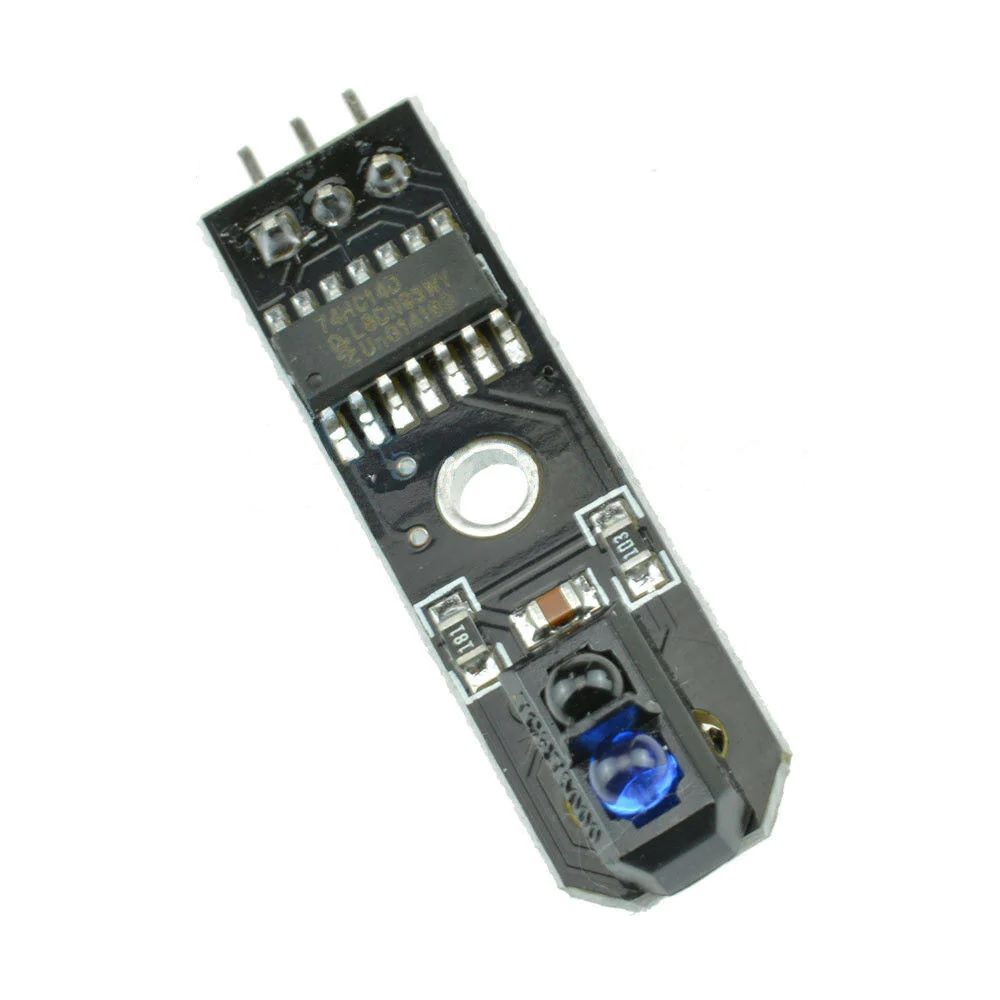

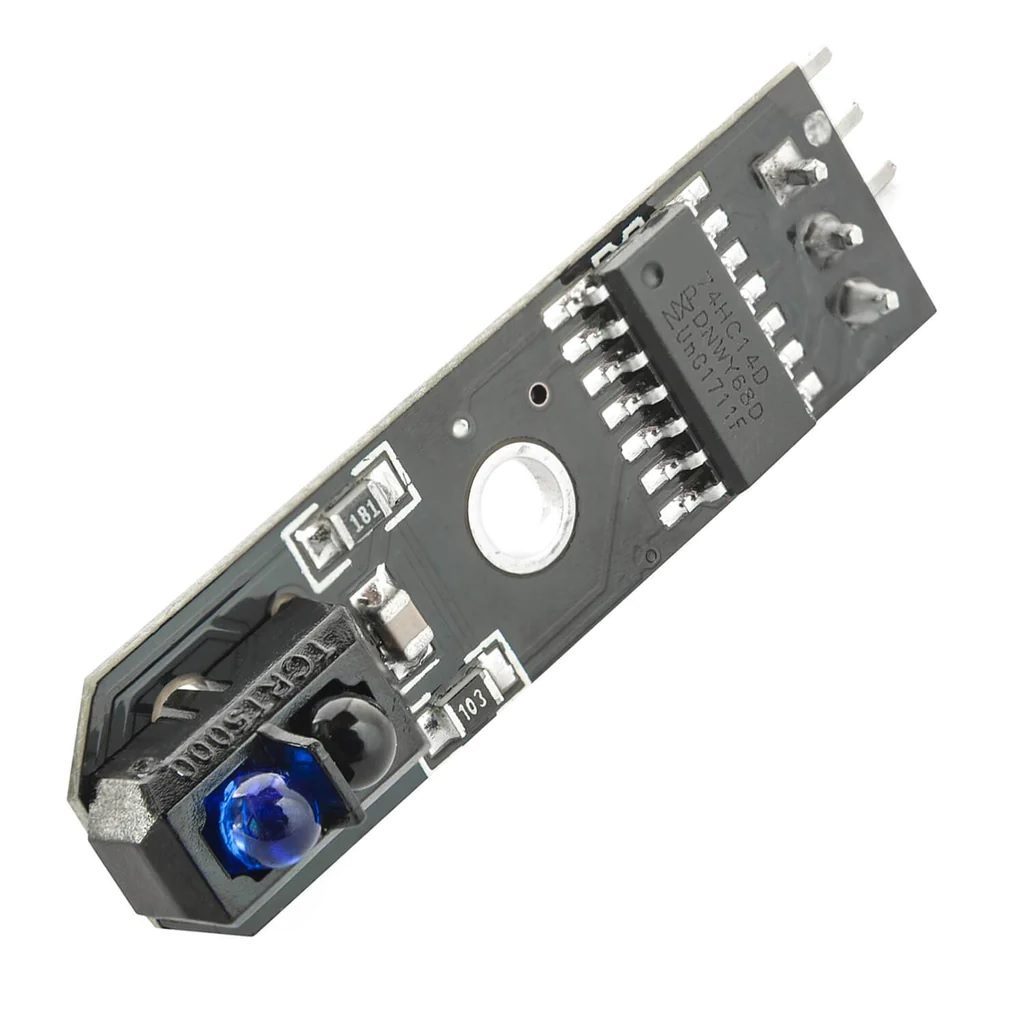

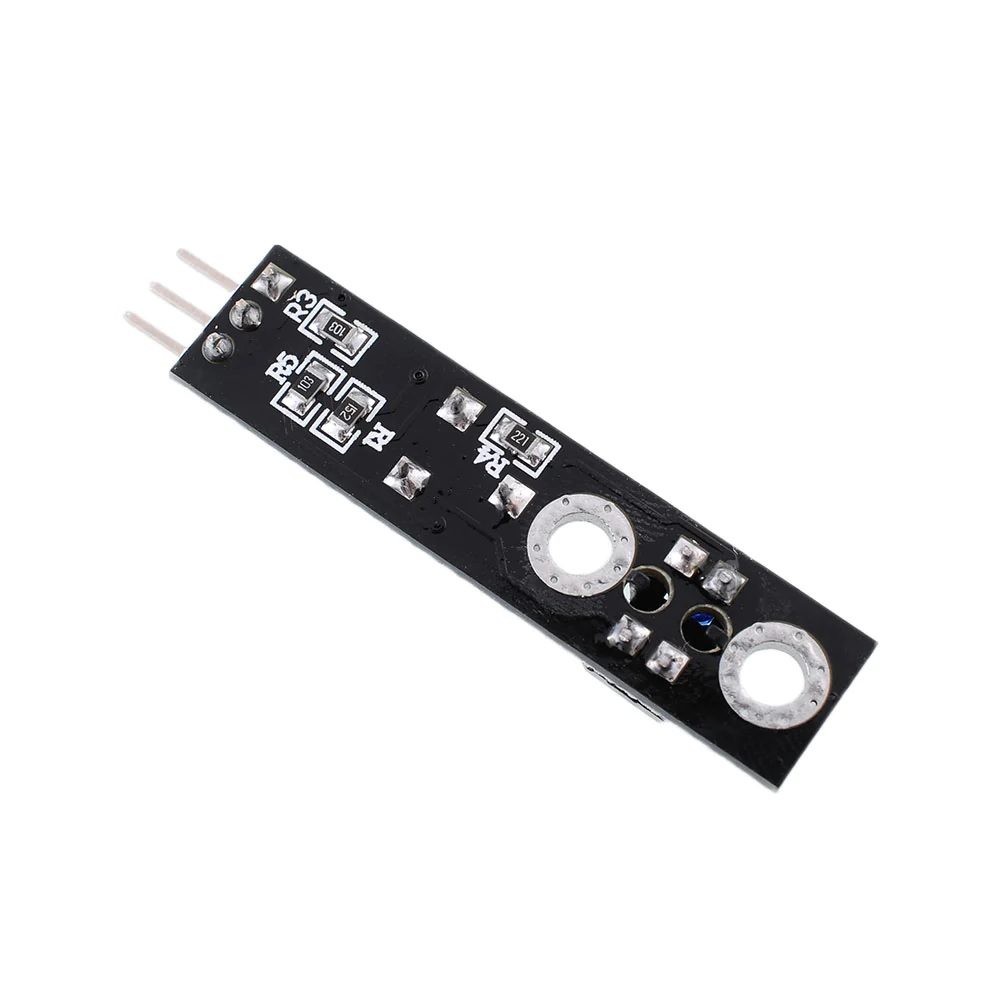

TCRT5000 IR reflex Tracking Sensor Module

TCRT5000 IR reflex Tracking Sensor Module adopts TCRT5000 photoelectric sensor and comparator. It is easy to use, has good stability and anti-interference ability. Its is Perfect for black & white line detection for smart car and has a Blackline for low-level output, a white line for high-level output.

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not strong enough, the infrared receiving tube is always in the off state, and the output terminal of the module is at low level, indicating The diode is always in the off state; when the detected object appears in the detection range, the infrared is reflected back and the intensity is large enough, the infrared receiving tube is saturated, and the output terminal of the module is high at this time, indicating that the diode is lit.

Features:

• Build-in Tcrt5000 Sensor NSOR
• Applicable to a variety of platforms including Arduino / AVR / ARM /PIC

Specifications:

• Working Voltage(V): 5
• Output format: digital signal (0 and 1)
• Detection distance: 25mm
• Length(mm): 35
• Width(mm): 10
• Height(mm): 14
• Weight(g): 4.5(approx)

Pin Out:

• VCC: Connect to the positive pole of the power supply (5V)
• GND: connect to the negative pole of the power supply
• OUT: high/low level switch signal (digital signal 0 and 1)

Applications:

• Pulse data sampling of watt-hour meter
• Shredder paper detection
• Obstacle detection
• Black and white line detection

Package Includes:

• 1 x TCRT5000 IR reflex Tracking Sensor Module
