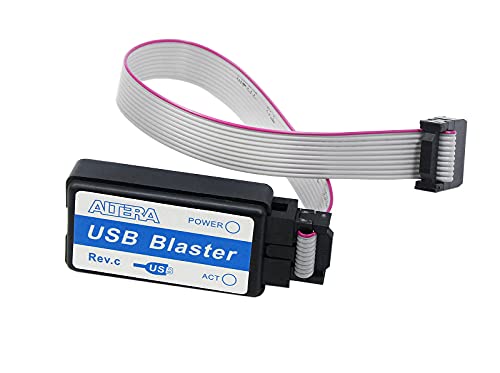

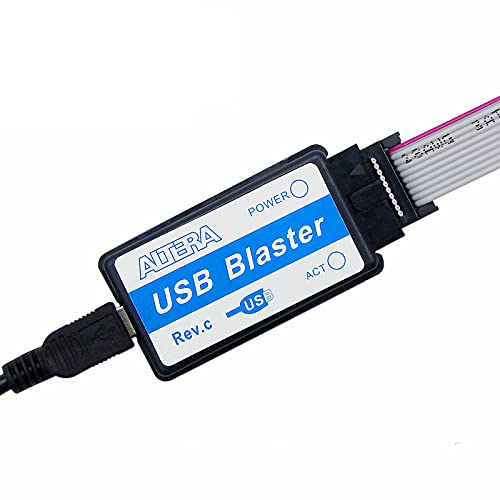

USB Blaster ALTERA CPLD/FPGA Programmer

USB Blaster ALTERA CPLD/FPGA programmer Supports 1.5V,1.8V,2.5V,3.5V and 5.0V as well as all ALTERA products like CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, StratixII, Cyclone, CycloneII, ACEX 1K, APEX20K and FLEX 10K ), Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25);  Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4); Active serial configuration device (EPCS1, EPCS4, EPCS16)

The device is tested with the different program mode like JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000, and Max3000); AS ( EPCS1, EPCS4, EPCS16); PS (Stratix, Stratix GX )

ALTERA USB Blaster Support AS, PS, and JTAG program ( with Verify and BankCheck function), Support embedded logic analyzer function of SignalTapII and NIOS II communication and debugger — When you use it to debug your Black Gold, it will not Pop-up warning

It is Faster about 6 times than ByteblasterII and with USB interface you don’t need a PC with serial port now. It is 100% compatible with Official ALTERA USB Blaster.

Features:

• Stably support SignalTap II embedded logic analyzer function, no mistake while crawling data.
• Fully support all Altera products such as CPLD: MAX3000, MAX7000, MAX9000, and MAXII.
• FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K, and FLEX10K, etc.
• Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.
• Enhanced configuration devices: EPC1, EPC4.
• Supports 3 download mode: AS, PS, and JTAG.
• Support and Nios II embedded soft core processor communication and debugging Rev.C latest version Hardware. Support jtag_uart.
• Speed is 6 times faster than parallel port download cable ByteBlasterII.

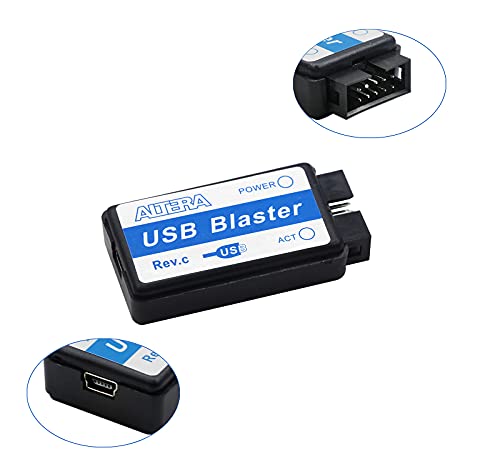

• Easy to use: MiniUSB interface, easy connection, two status indicator makes debugging more comfortable.
• Fully compatible with ALTERA USB Blaster, functionality and performance are the same as ALTERA original download cable.
• Operating Voltage: 1.5～5V JTAG IO Voltage.
• System configuration: Windows XP, Windows Vista, Windows7, USB interface.

Specifications:

• Microprocessor: Altera
• RAM Size: 2 GB
• Architecture: CPLD/FPGA
• Connectors: USB
• Length(mm): 65
• Width(mm): 55
• Height(mm): 15
• Weight(g): 113
• Item Weight: 113 g

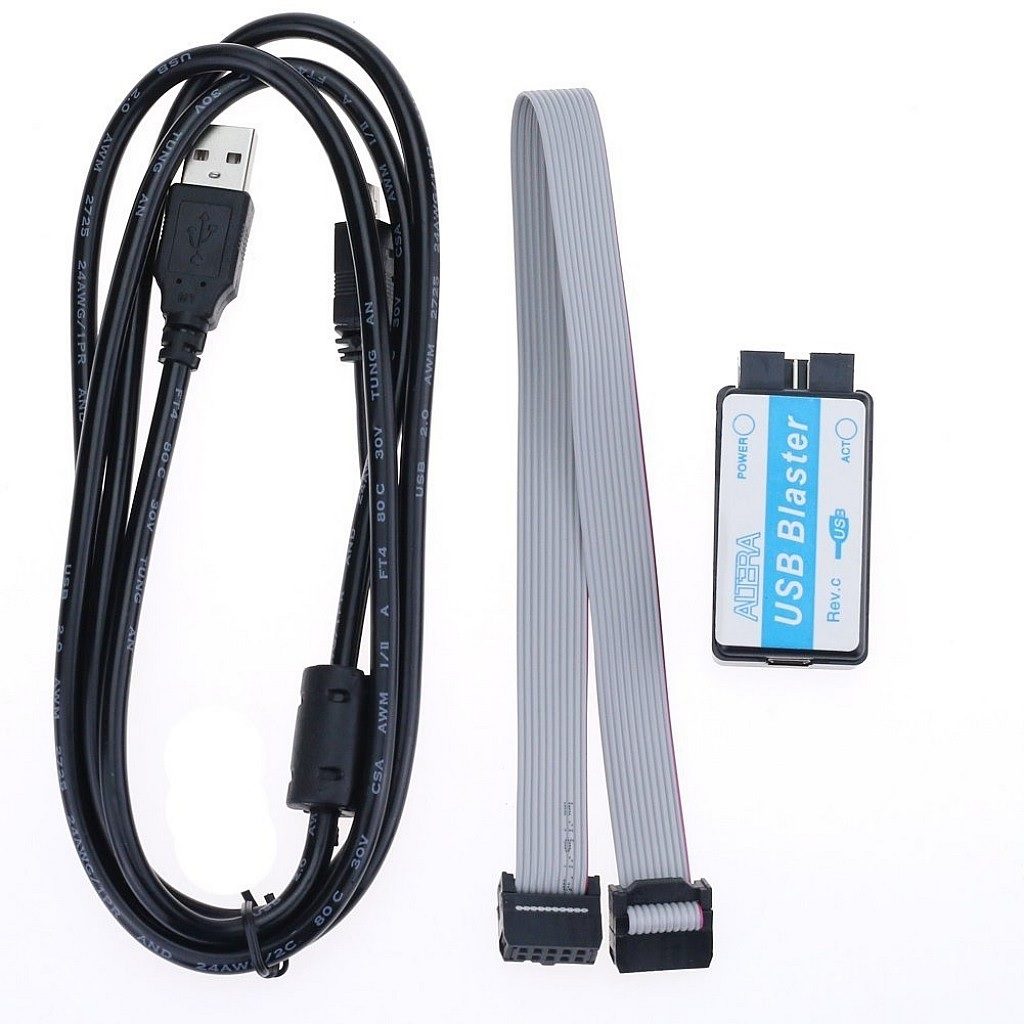

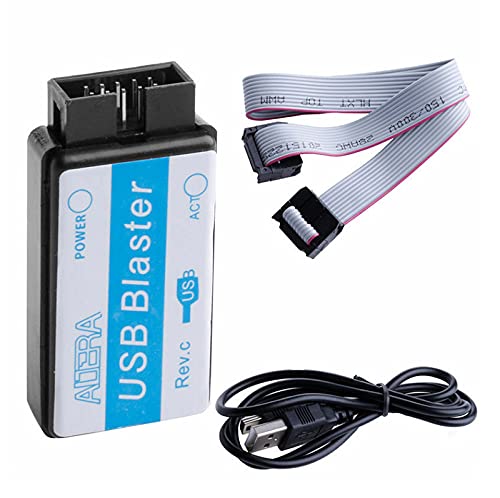

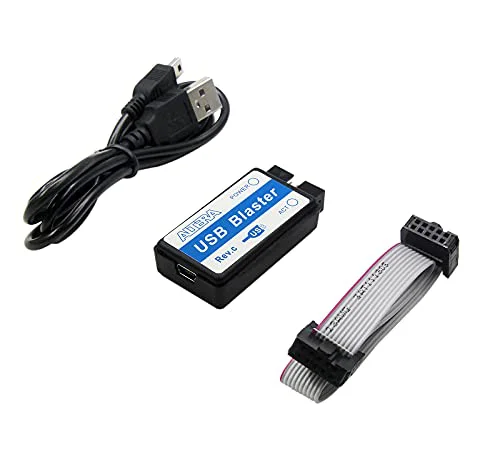

Package Includes:

• 1 x USB blaster device.
• 1 x USB cable.
• 1 x 10pin JTAGE cable.
