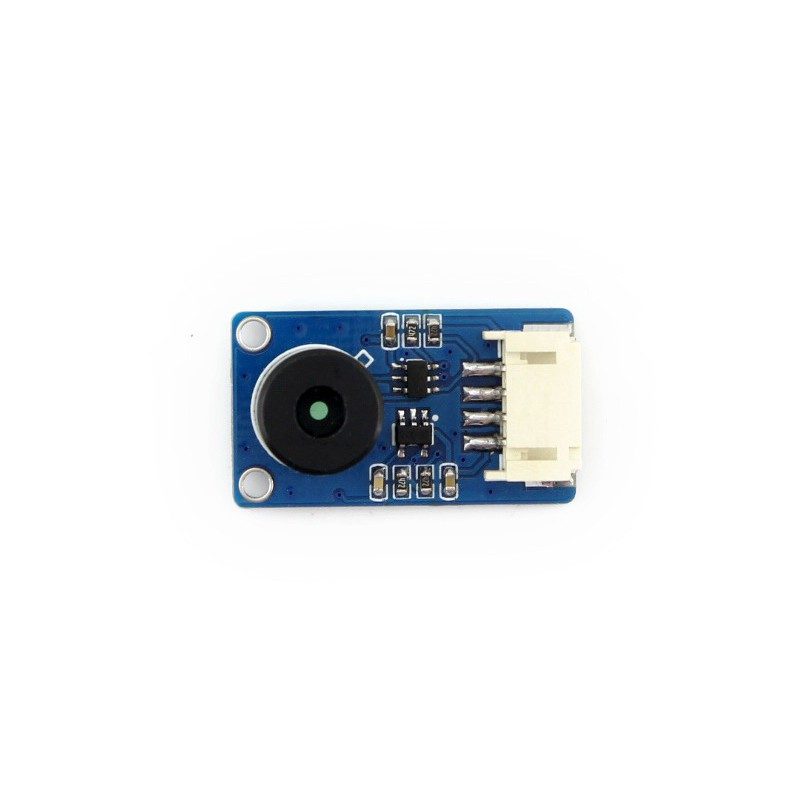

Waveshare Contact-less Infrared Temperature Sensor

Waveshare Contact-less Infrared Temperature Sensor is an Infra-Red thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASSP are integrated into the same TO-39 can.

This non contact temperature sensor has low noise amplifier, 17-bit ADC, and powerful DSP unit, high accuracy, and resolution of the thermometer is achieved.

The thermometer comes factory calibrated with a digital PWM and SMBus (System Management Bus) output. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20…120˚C, with an output resolution of 0.14˚C.

Features:

• This Temperature Sensor measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target.
• Also measures the average temperature over an area.
• Contact-less, high precision, high resolution, fast response.
• Calibrated before delivery, with gradient temperature compensation.
• Works with 3.3V/5V MCU system directly, thanks to the built-in level translation.

Specifications:

• Input voltage: 3.3V ~ 5V
• Measuring Range (Area): -40°C ~ 85 °C
• Measuring range (object): -70°C ~ 380 °C
• Resolution: 0.02°C
• Precision: ±0.5°C ( 0~50°C)
• Field of view (FOV): 35°

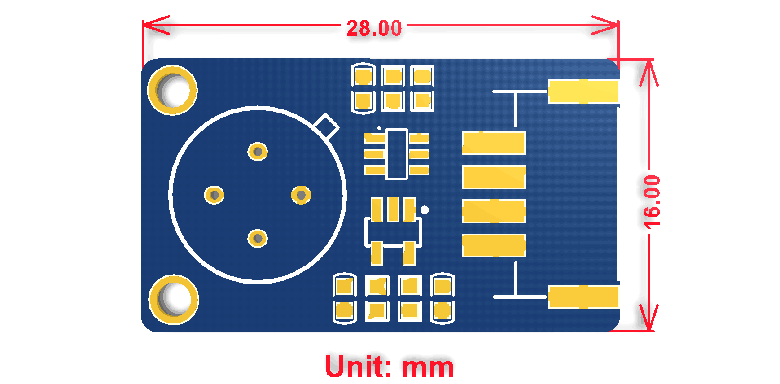

• Dimension: 28mm x 16 mm
• Mounting holes size: 2.0mm

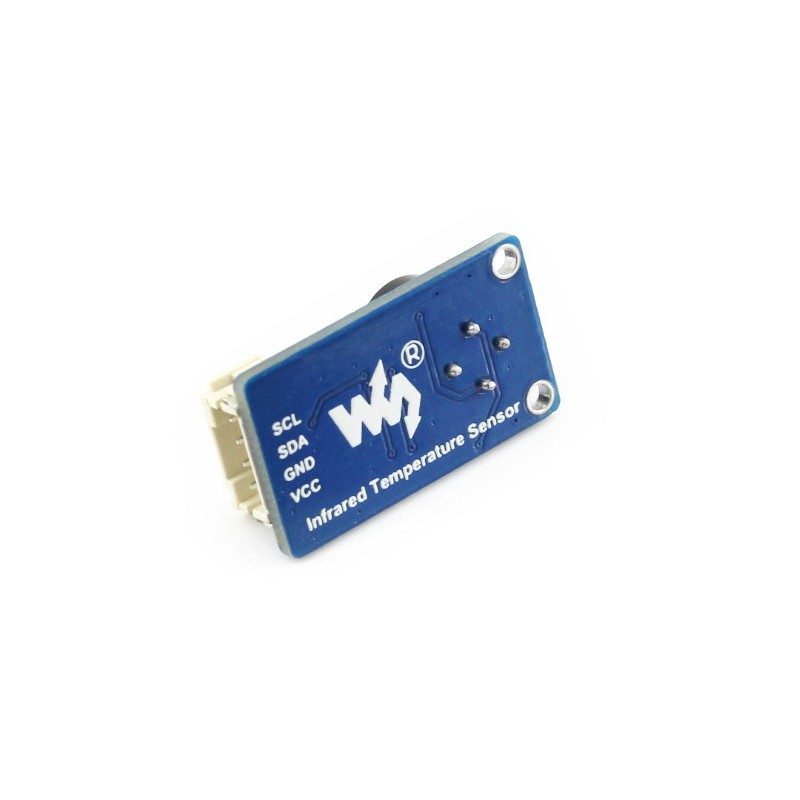

Pin Diagram:

• VCC ↔ 3.3V ~ 5V
• GND ↔ GND
• SDA ↔ MCU.I2C data line
• SCL ↔ MCU.I2C clock line

Application:

• High-precision contact-less temperature measurement
• Industrial temperature control
• Household appliances temperature control

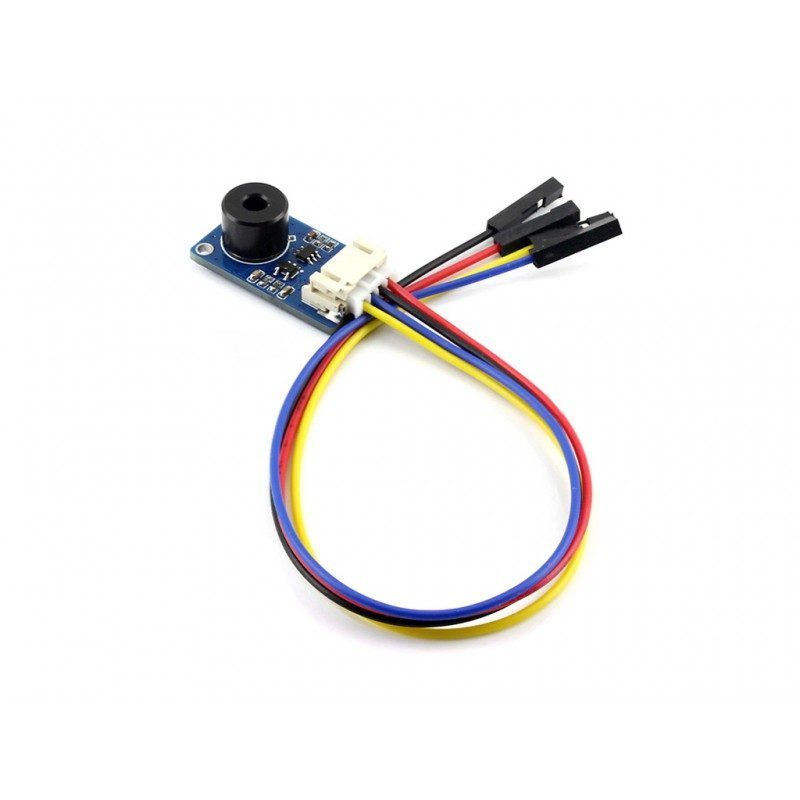

Package Includes:

• 1 x Contactless Infrared Temperature Sensor
• 1 x PH2.0 4PIN wire
