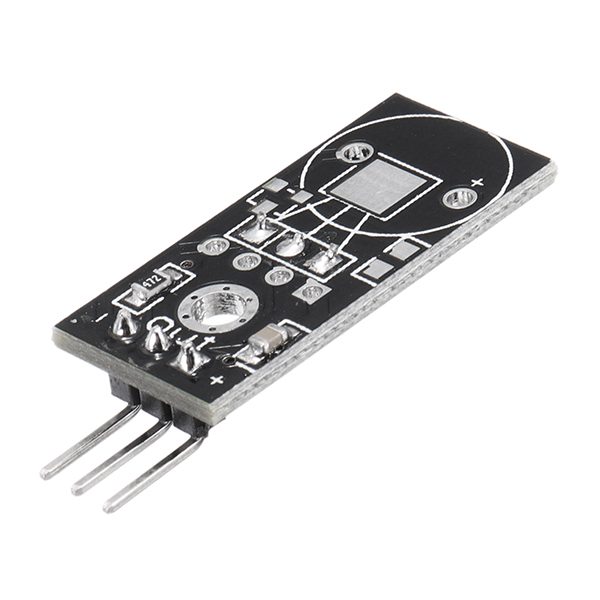

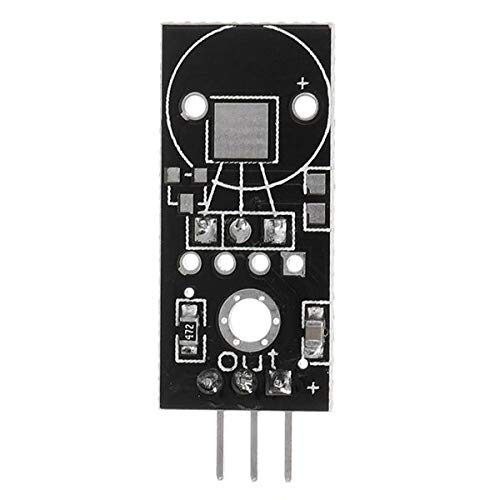

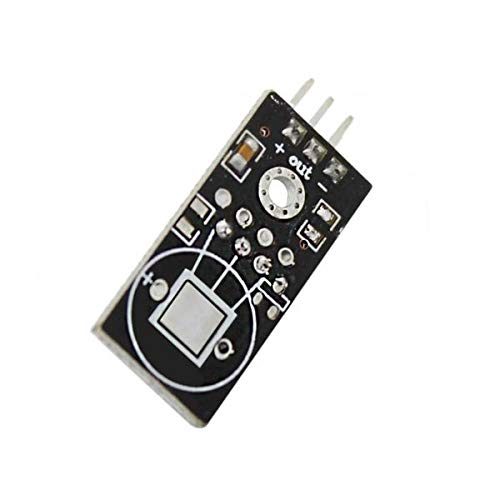

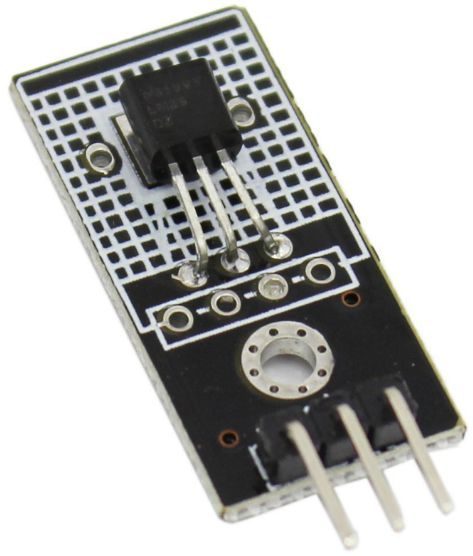

LM35D Analog Temperature Sensor Module

This LM35D Analog Temperature Sensor Module is based on the semiconductor LM35 temperature sensor. The LM35 Linear Temperature Sensor module is useful in detecting ambient air temperature. Sensitivity is 10mV per degree Celsius. The output voltage is proportional to the temperature.

LM35 is a precision IC temperature sensor with its output proportional to the temperature (in °C). The sensor circuitry is sealed and therefore it is not subjected to oxidation and other processes. With LM35, the temperature can be measured more accurately than with a thermistor!!!

It also possesses the low self-heating and does not cause more than 0.1 °C temperature rise in still air. The operating temperature range is from -55°C to 150°C. The output voltage varies by 10mV in response to every °C rise/fall in ambient temperature, i.e., its scale factor is 0.01V/°C.

It is commonly used as a temperature measurement sensors. It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion of Arduino board, in combination, can be very easy to achieve.

Wiring Instructions:

• “+”: Positive power supply
• “–“: Negative one
• “out”: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure

Features :

• Based on the semiconductor LM35 temperature sensor
• Useful in detecting ambient air temperature
• Calibrated directly in ° Celsius (Centigrade)
• Linear + 10 mV/°C Scale Factor
• 0.5°C Ensure accuracy (at +25°C)
• Low power consumption, less than 60uA
• Low output impedance, 1mA current through only 0.1Ω
• With screw holes for easy installation and fixed. Aperture 2.6mm

Specifications:

• Operating voltage (v): 4 ~ 30 V
• Current Consumption (μA): 60
• Scale Factor: +10 mV/°C
• Measuring Accuracy: 0.5°C
• Operational Temperature (°C): −55 ~ +150
• Signal Output Type: Analog

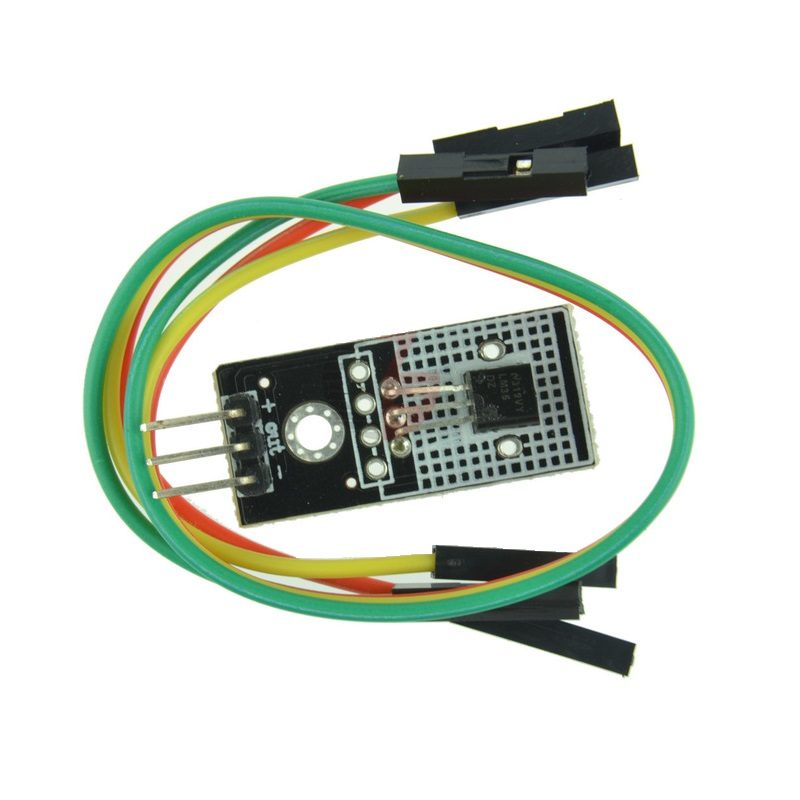

• Dupont Cable Length (cm): 20
• Length (mm): 35
• Width (mm): 13
• Height (mm): 5
• Weight (gm): 15

Package Includes :

• 1 x LM35D Analog Temperature Sensor Module. ( Cable is not included with module)
