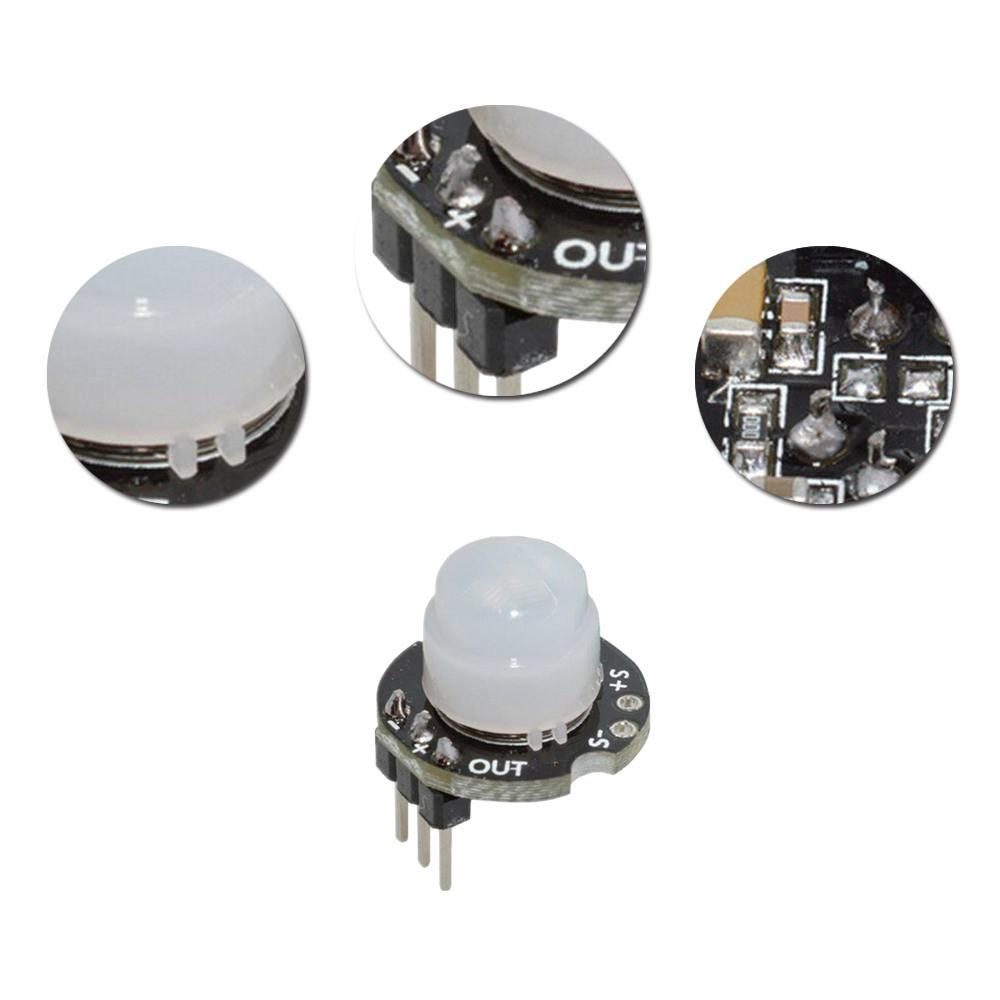

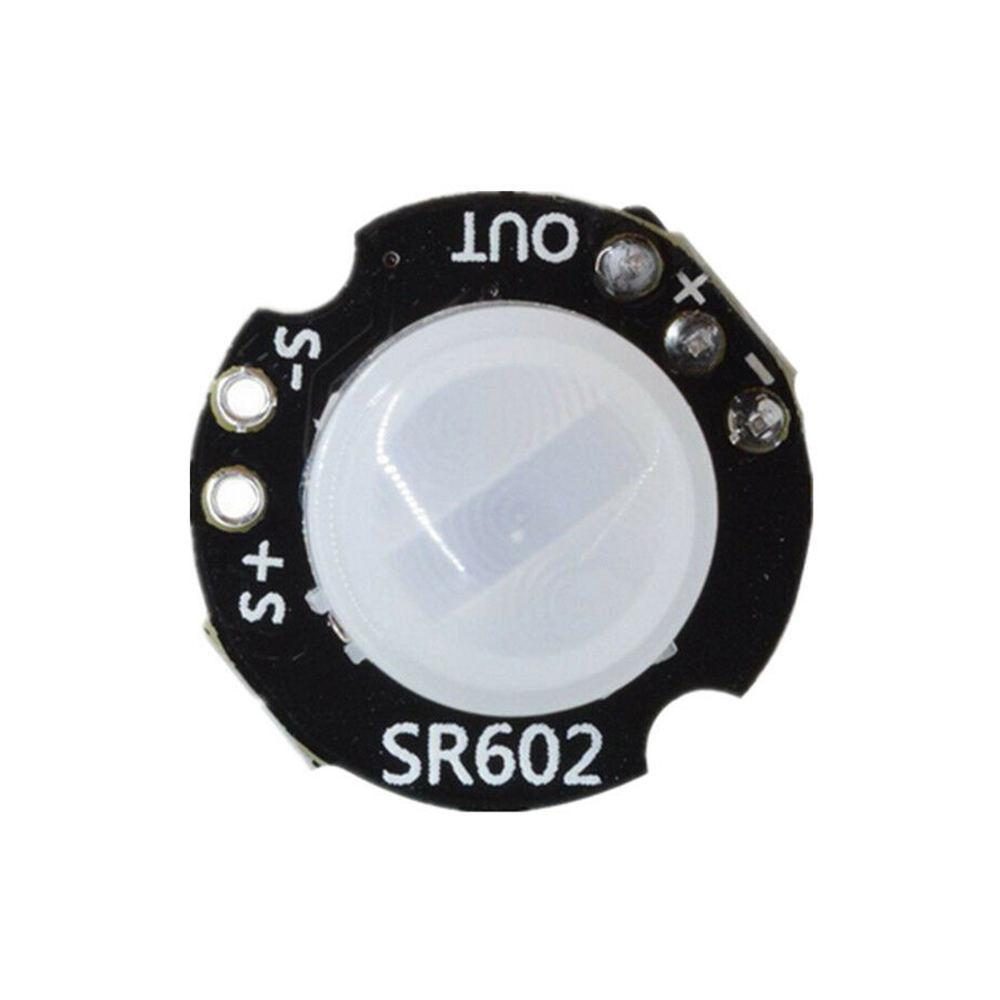

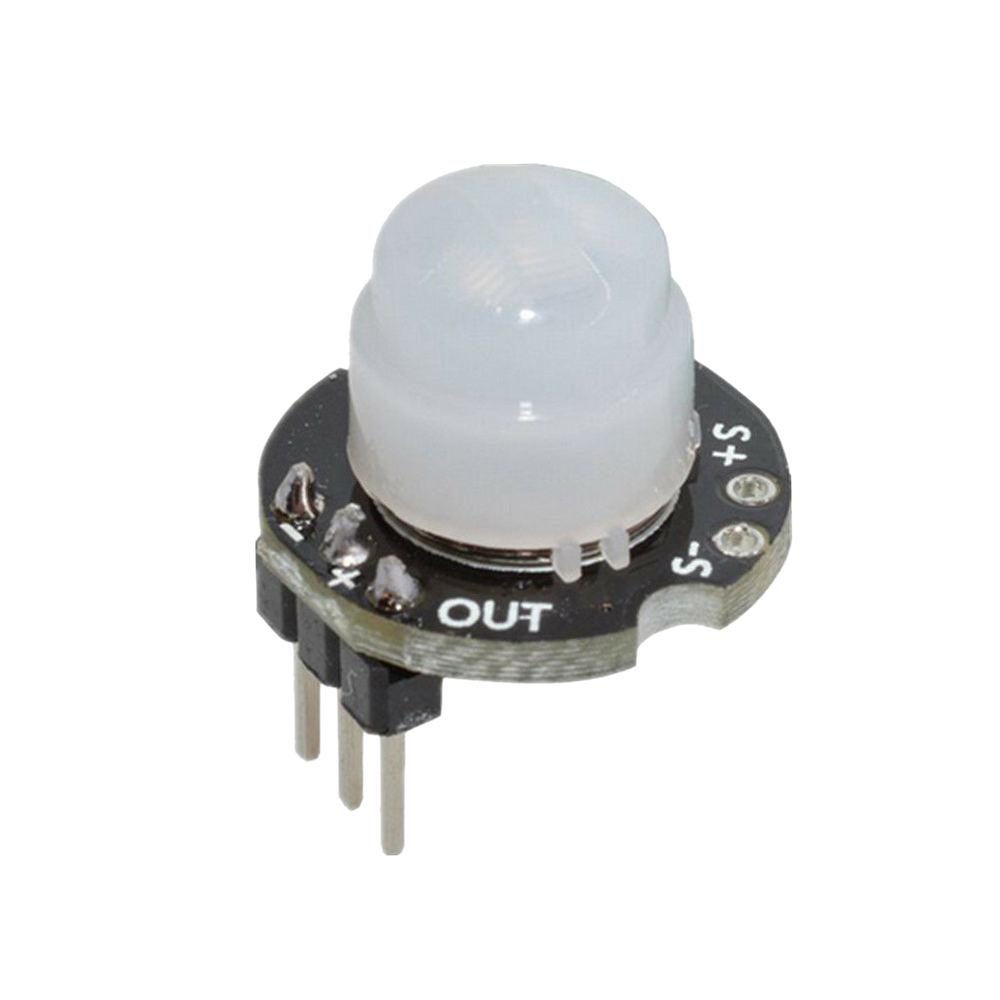

MH-SR602 Mini Motion Sensor Detector Module

The MH-SR602 Mini Motion Sensor Detector Module is a mini motion detection module that can detect movement within its detection range. It is commonly used in home security systems, automatic lighting systems, and other similar applications where motion detection is required.

The module has a detection range of up to 5 meters and a 120-degree detection angle. It operates on a voltage range of 3.3 to 15 volts, and it consumes very low power, making it an ideal choice for battery-powered applications.

Features:

• High sensitivity
• Fast response
• Small static power consumption
• Small size
• Easy to install

Specifications:

• Model: SR602
• Sensing Distance: 3M-5M
• Delay: Adjustable
• Power supply DC: 3.3V-15V
• Output: high level, H=3.3V, L=0V
• Quiescent current: 20uA
• Color: Black
• Dimension(mm): 15 x 15 x 20
• Weight(g): 20

Package Includes:

• 1 x MH-SR602 MINI Motion Sensor Detector Module For Arduino

Note:

• The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.

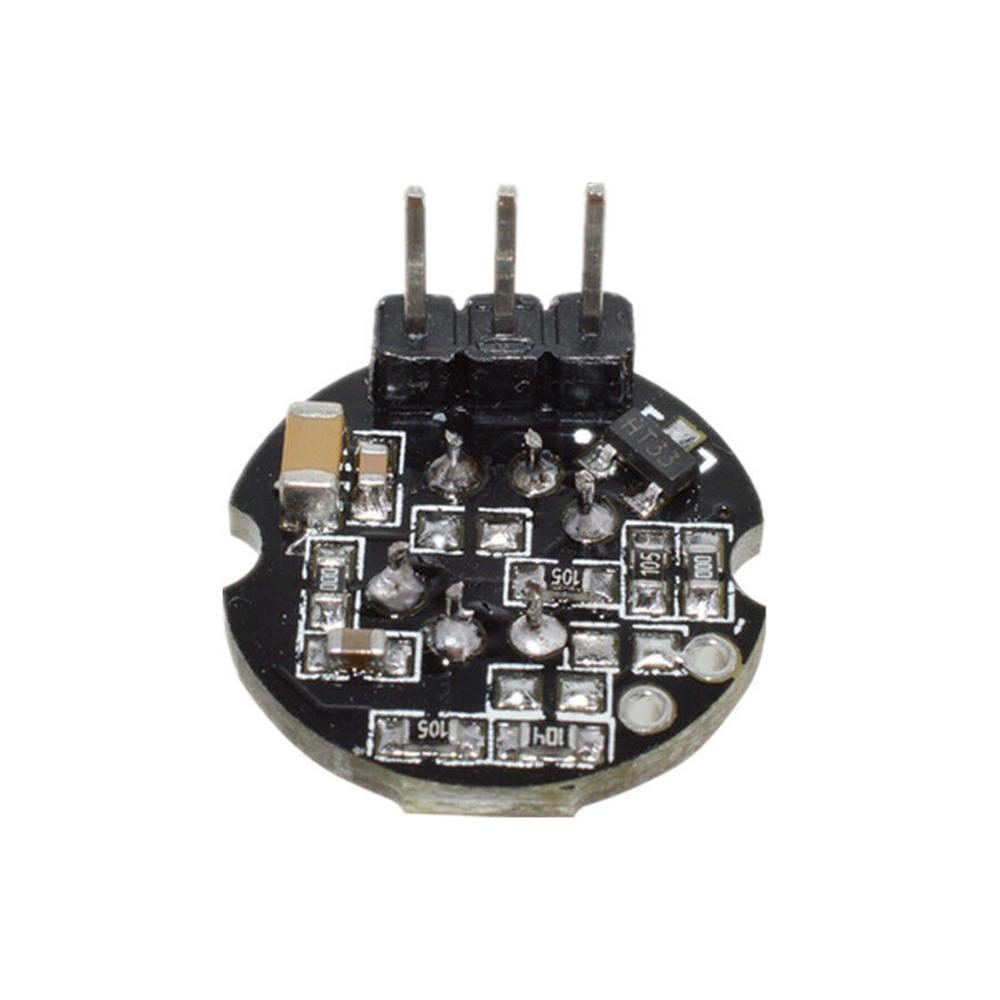

• It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.
• blocking time, 2 seconds, is not adjustable.
