TCRT5000 Infrared Obstacle Avoidance Reflective Sensor Module

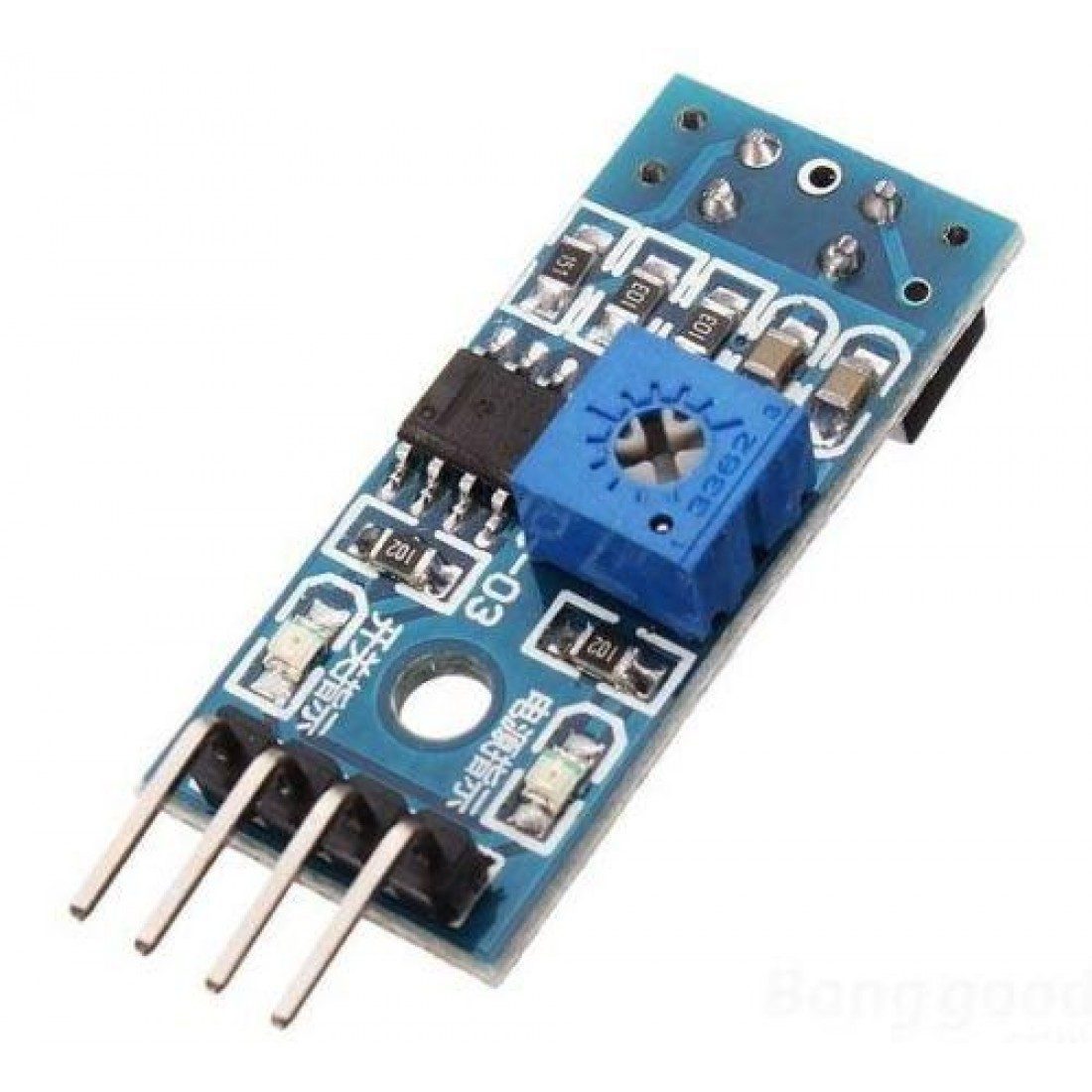

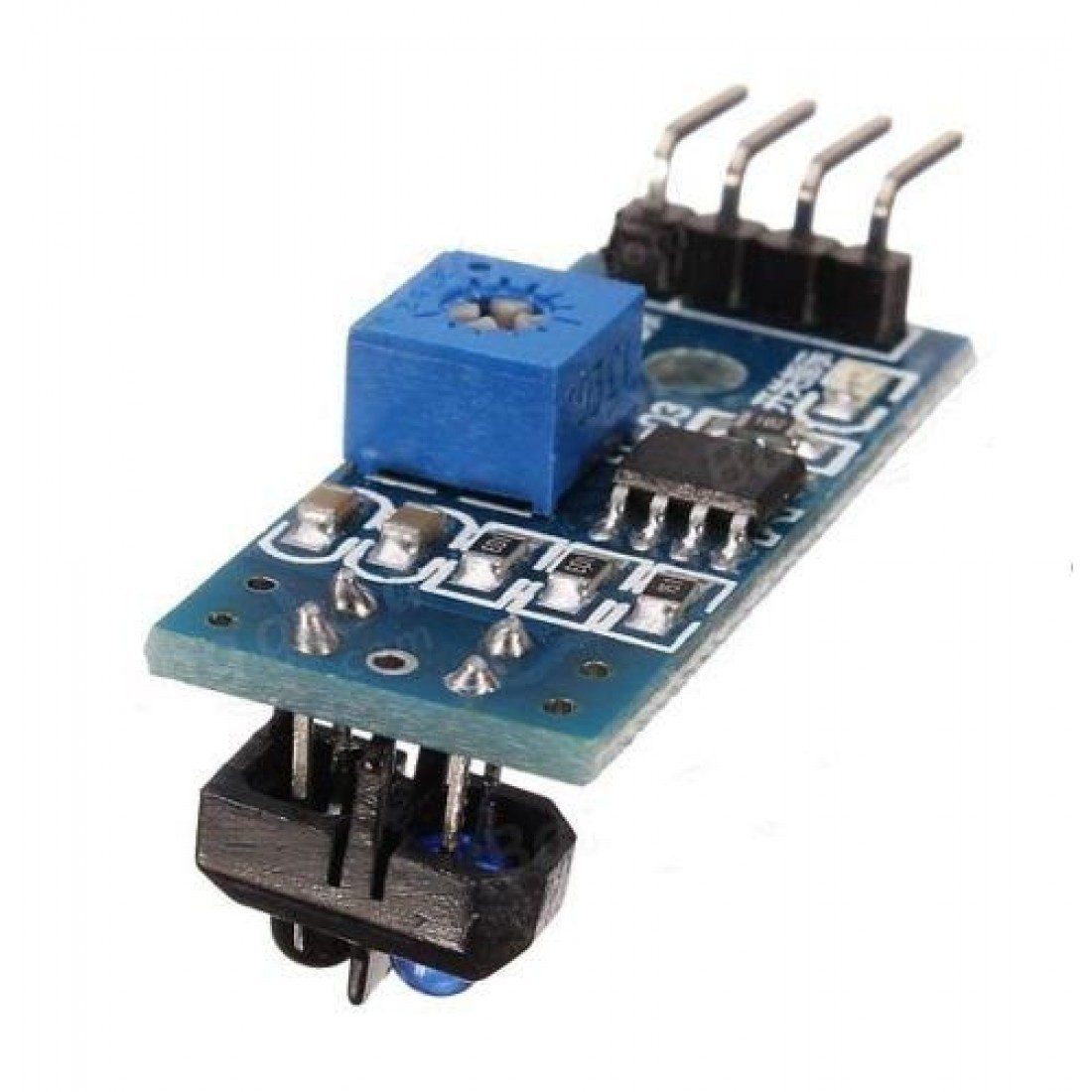

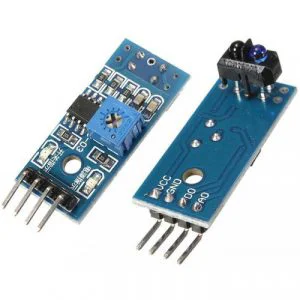

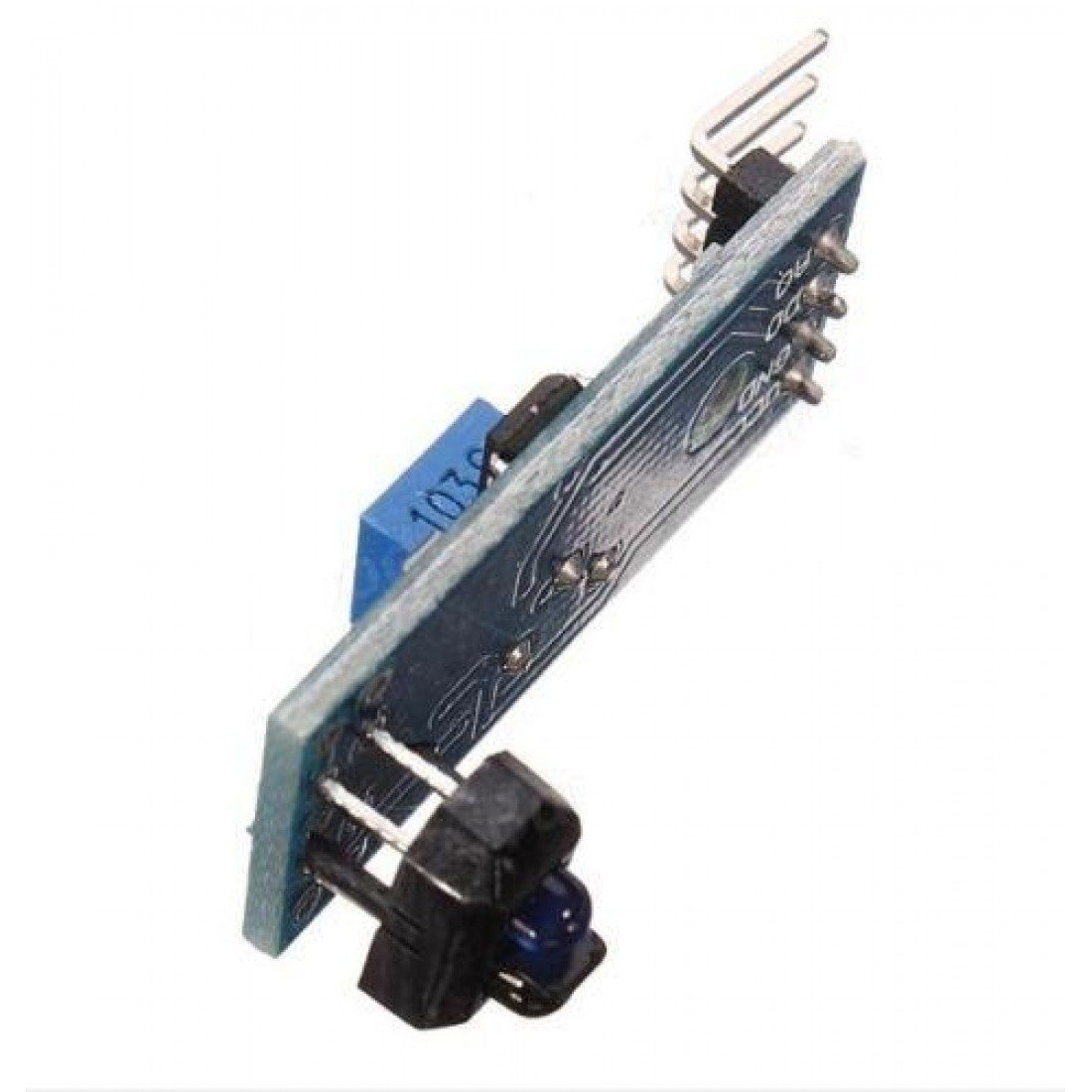

TCRT5000 Infrared Obstacle Avoidance Reflective Sensor Module Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 obstacle reflective optical sensor. Although it is designed for use with line following robots, it can be used in sumo- mini sumo robots for line control. The board has digital output. When the sensor detects an object, the output becomes 0V and when it does not detect anything, the output becomes 5V.

This IR reflective sensor Module used TCRT5000 IR Sensor to detect color and distance. This sensor module consists on an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver. TCRT5000 Infrared Reflective Sensor Module is often used in line following robots, object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1 mm to 8 mm, and the central point is about 2.5 mm. There is also an on-board potentiometer to adjust the sensitivity.

The infrared diode will emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW.

Features:

• Designed with reflected infrared sensor, indicator light.
• Built in a potentiometer for sensitivity control.
• On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
• On-board signal output instructions, output is high effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection
• Signal detection sensitivity can adjust
• Reserve all the way more circuits (P3 voltage drawn)
• Using TCRT5000 infrared reflection sensor
• Output form: digital switch output (0 and 1)
• a fixed bolt hole, convenient installation.

Specifications:

• Model: TCRT5000
• Chipset: LM393
• Detection distance: 1-25mm
• Operating Voltage: 3.5-5 VDC
• Operating Current (mA): 15 mA
• Output Channel: 0 or 1
• Focal Distance: 2.5 mm
• Length (mm): 32
• Width (mm): 11
• Height (mm): 20
• Weight (gm): 22

Application:

• Smart monitoring, measuring the liquid level, turn the measurement of counting rate, etc.

Package Includes:

• 1 x TCRT5000 InfraRed Obstacle Avoidance Infrared Sensor Module
