XH-M131 DC 24V Light Control Switch Photoresistor Relay Module

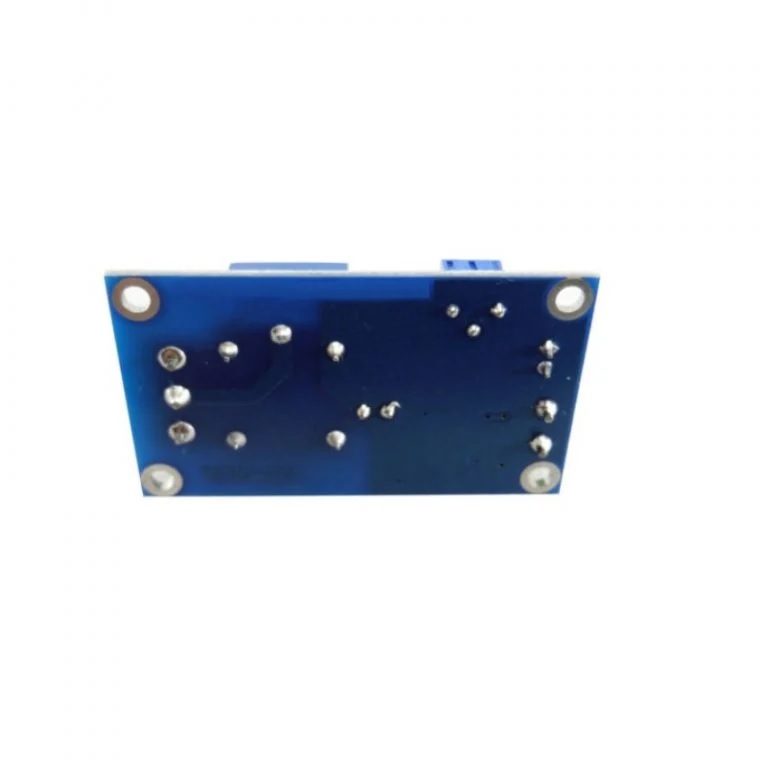

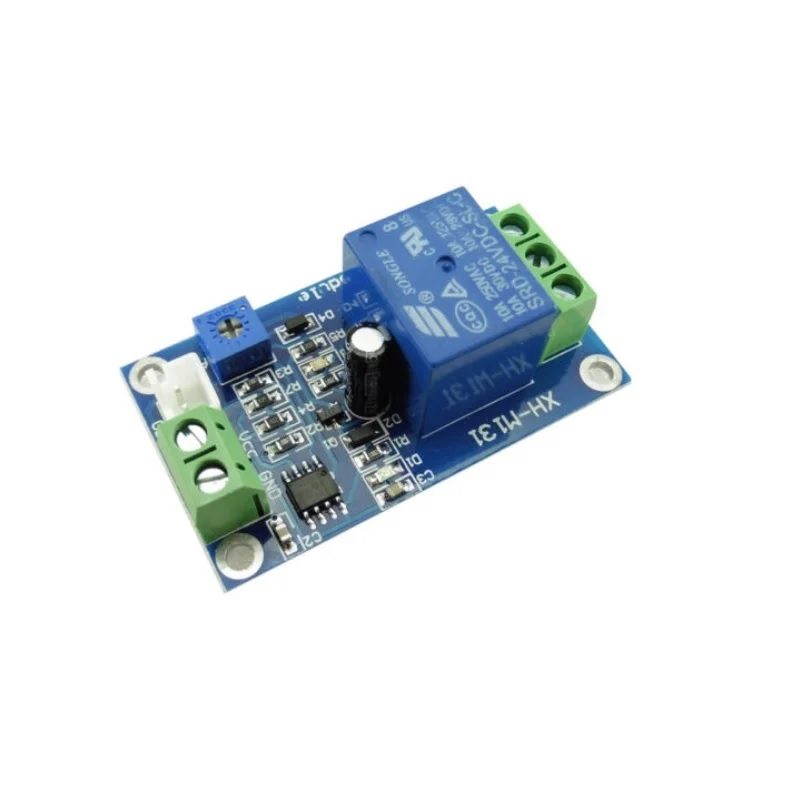

XH-M131 DC 24V Light Control Switch Photoresistor Relay Module can be used for light detection, brightness detection, with power indicator light (red) and relay indicator (blue), and with four M3 screw mounting holes, which is convenient to install, the board can adjust the sensitivity of the potentiometer, with relay, to do a variety of brightness detection and control switch, can be used in the street for example at night, during the day to open automatically, automatically extinguished, and other automation equipment.

Using the photoresistor induction light intensity comes with the relay and direct control load. It has a Distribution bit sensitivity adjustment. The start relay threshold is set by adjusting the potentiometer. 24V power input is designed for relay board regulator transistors to provide sensors and is Used to make the product more stable and reliable. It has four fixed bolt holes for easy installation.

Features:

• With anti-reverse function, reverse the power supply will not damage the module
• The light threshold can be adjusted by Potentiometer to set the relay start
• Module output terminal has three ports
• RED LED ON: Indicate the Power ON
• BLUE LED ON: Relay is working
• Relay Pinouts : Normally open ( NO ), Common terminal ( COM ), Normally closed ( NC )

Specifications:

• Trigger Voltage: 24VDC
• Switching Voltage: 250VAC@10A
• Switching Voltage: 30VDC@10A
• Operating Current: 20 mA
• LDR Probe Length: 300 mm
• Relay working mode: NO (normally open) or NC (normally closed)
• Length: 53 mm
• Width: 31 mm
• Height: 18 mm
• Weight: 20 gm

Package Includes:

• 1 x XH-M131 DC 24V Light Control Switch Photoresistor Relay Module

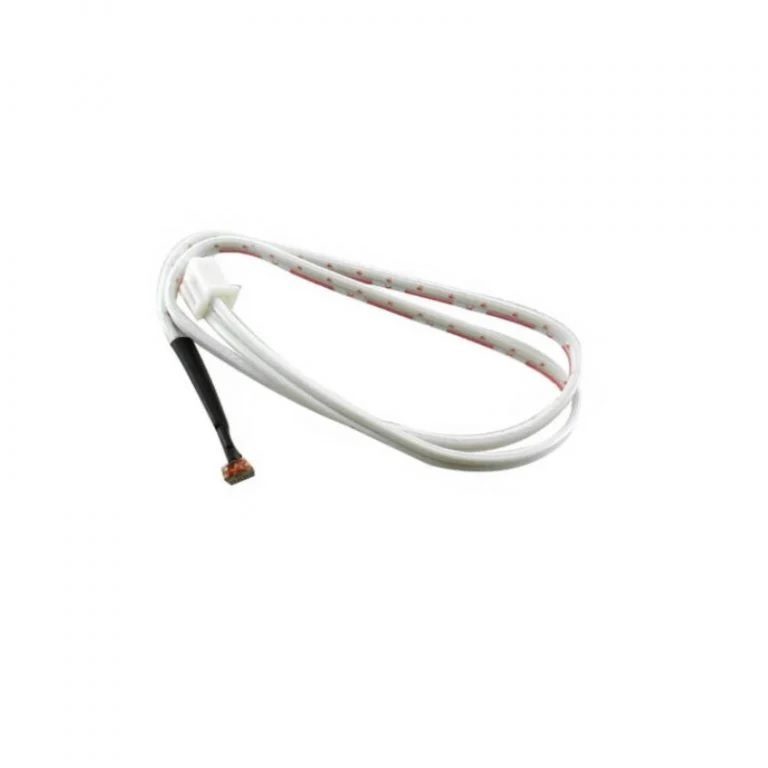

• 1 x LDR Probe Cable – 30cm
