XH-M312 TPA3118D2 45W*2 Dual Channel Digital Audio Amplifier Board Module

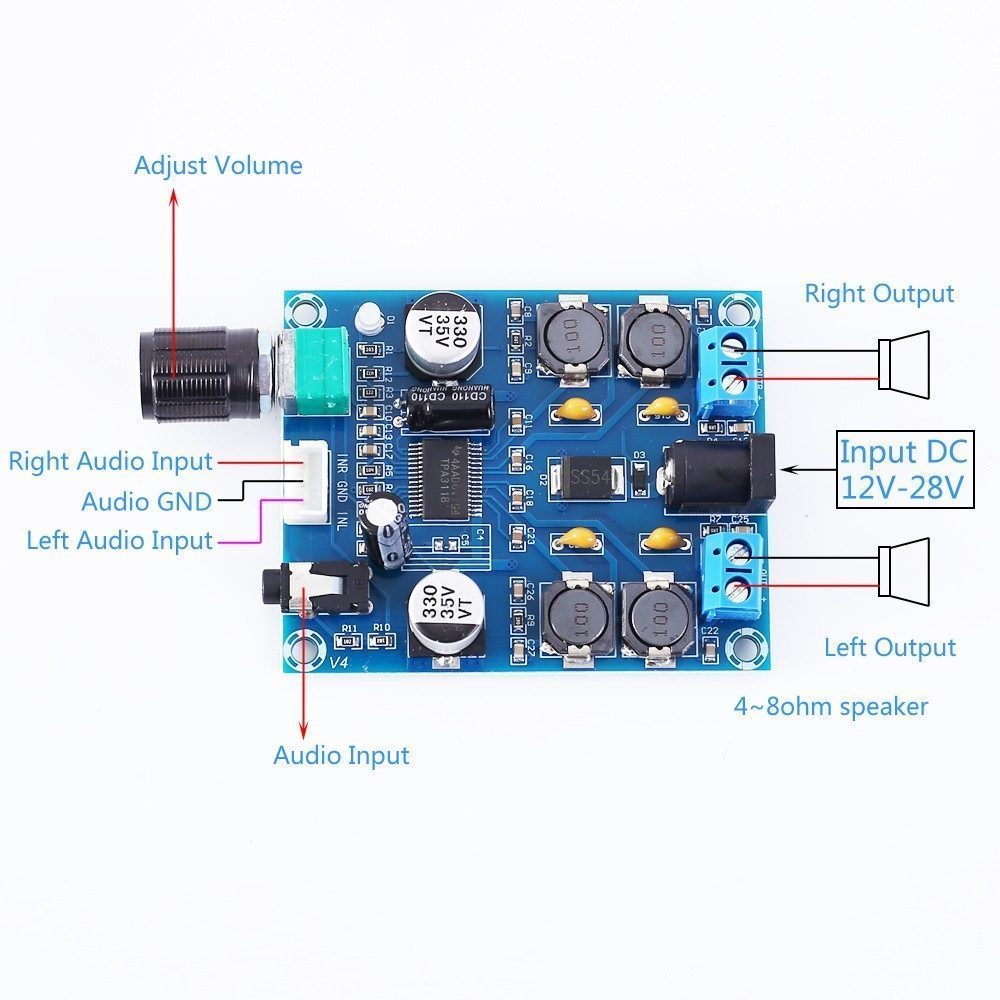

This is an XH-M312 TPA3118D2 45W*2 Dual Channel Digital Audio Amplifier Board Module that uses the TPA3118D2 digital amplifier chip and outputs 45w in both output terminals. The use of terminal blocks is more suitable for electronic enthusiasts, and it can meet the ready-to-use specifications.

This board uses chip that includes over-voltage, over-current, over-heat, and short-circuit protection. The audio output is 2P terminals with a 5mm pitch that can be connected to a pair of 30W double speakers. It can output power 20W at each channel when input DC 12V and 45W at 24V.

Specifications:

• Model: XH-M312
• Work voltage: DC 12V-28V
• IC: TPA3118D2
• Audio channel: 2CH
• Power interface: DC 5.5*2.1mm socket
• Output power: 45W*2
• Input current: >3A
• Output impedance: 4ohm-8ohm
• Input resistance: 1K ohm
• SNR: 100db
• Gain: 30TSP
• Audio Input: 3.5mm socket or XH2.54-3P socket

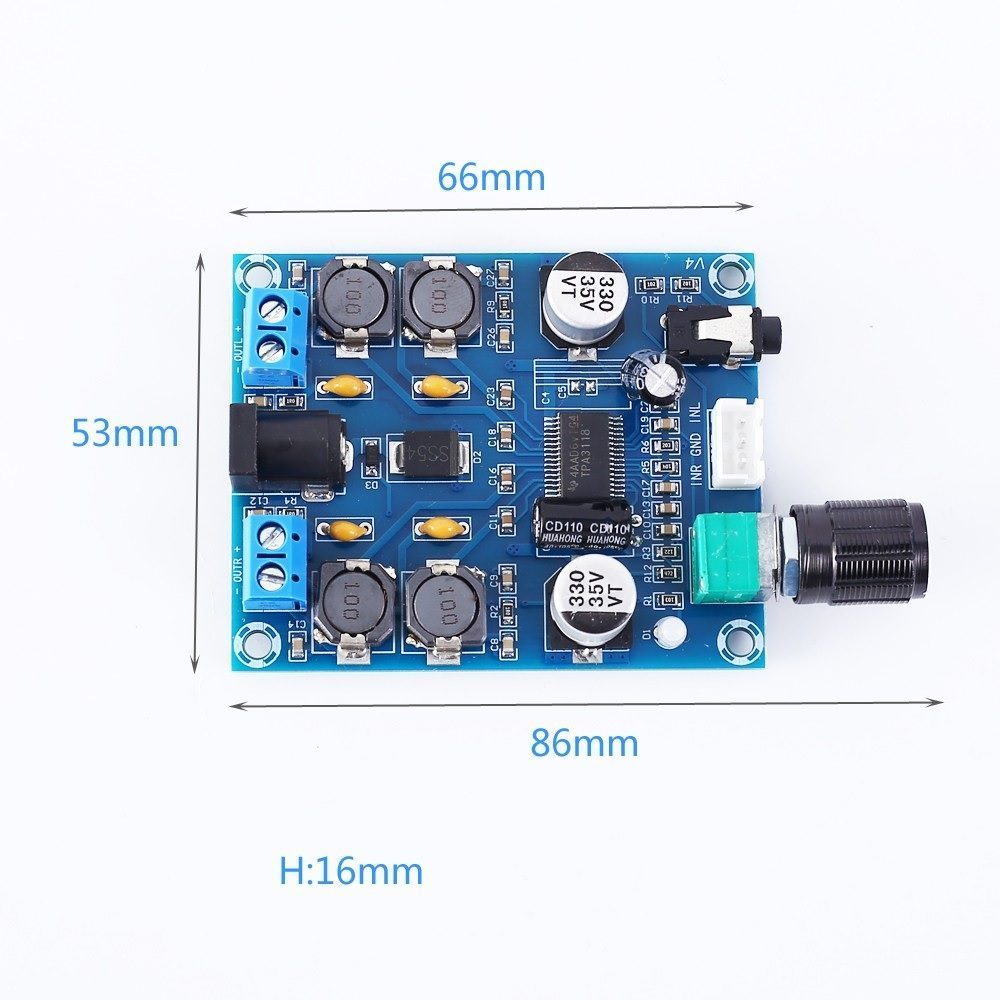

• Size: 66 * 53MM
• Weight: 40g

Package Includes:

• 1 x XH-M312 TPA3118D2 45W*2 Digital Amplifier Board Dual Channel Audio Amplifier Board Module
