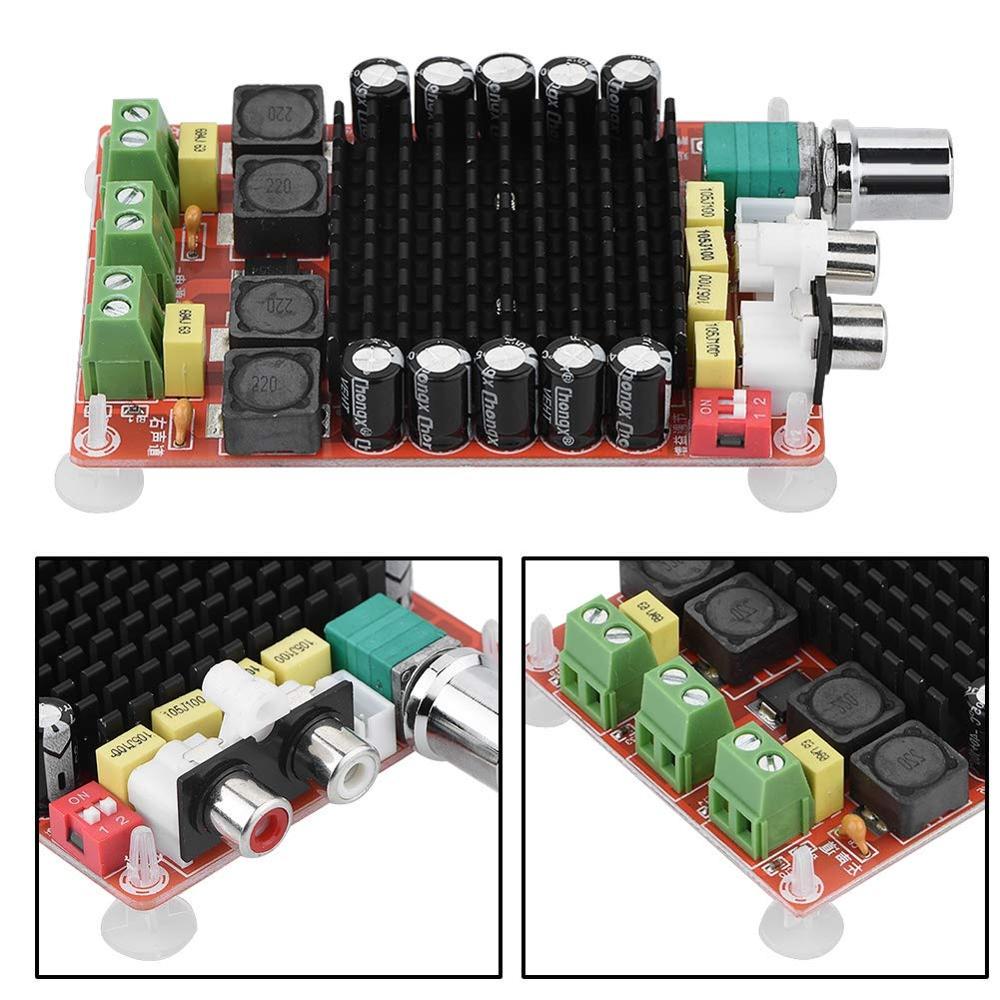

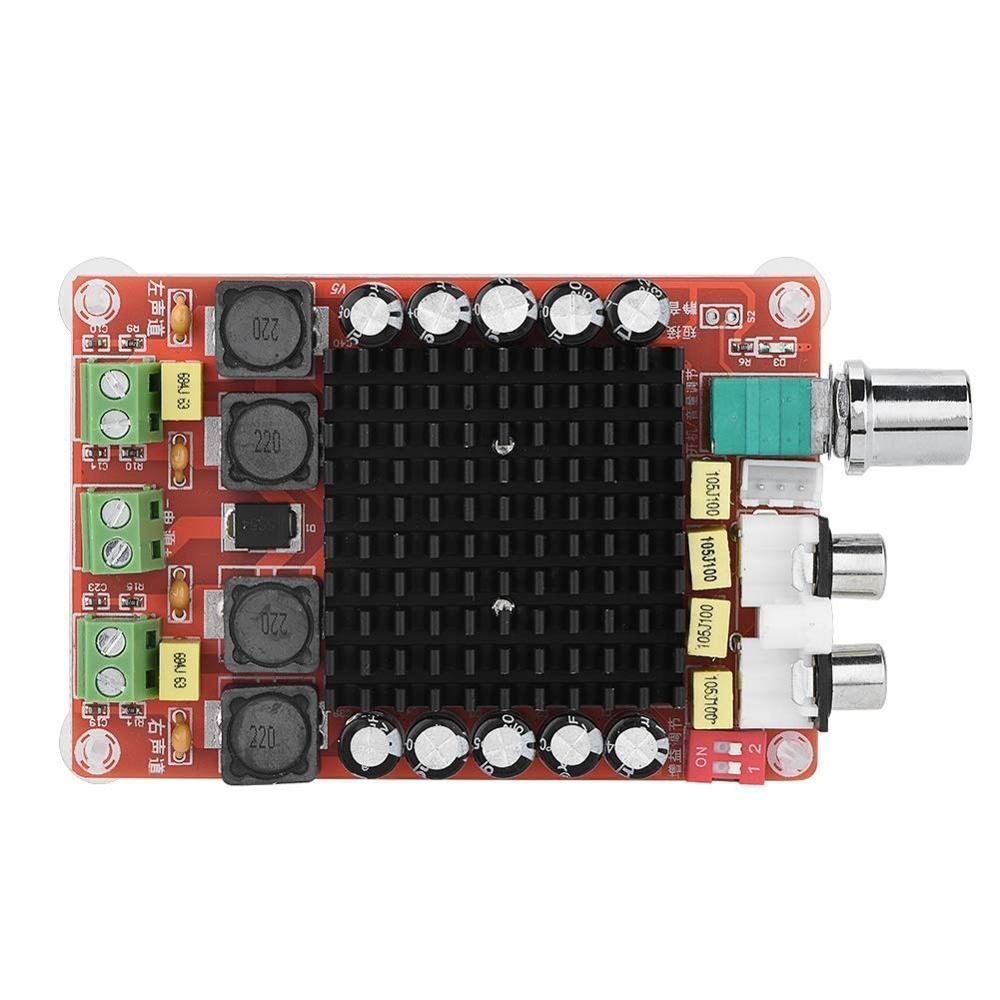

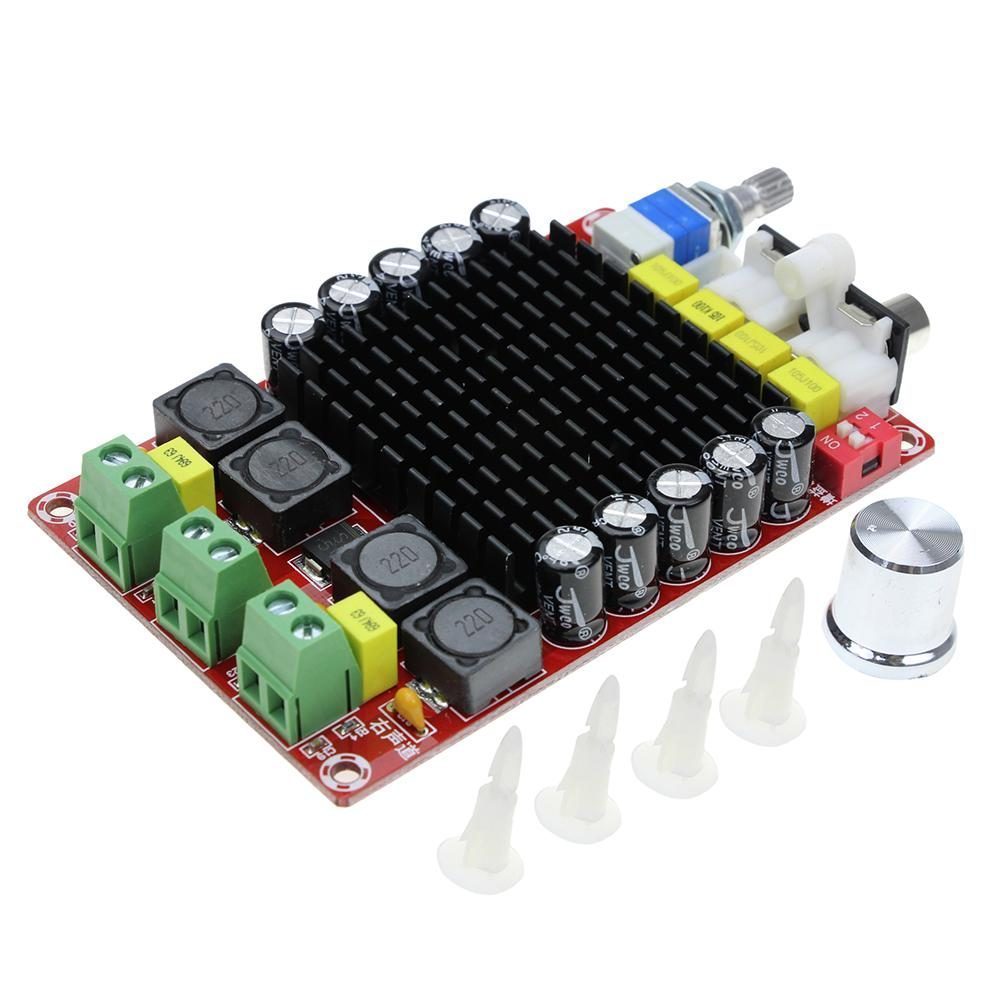

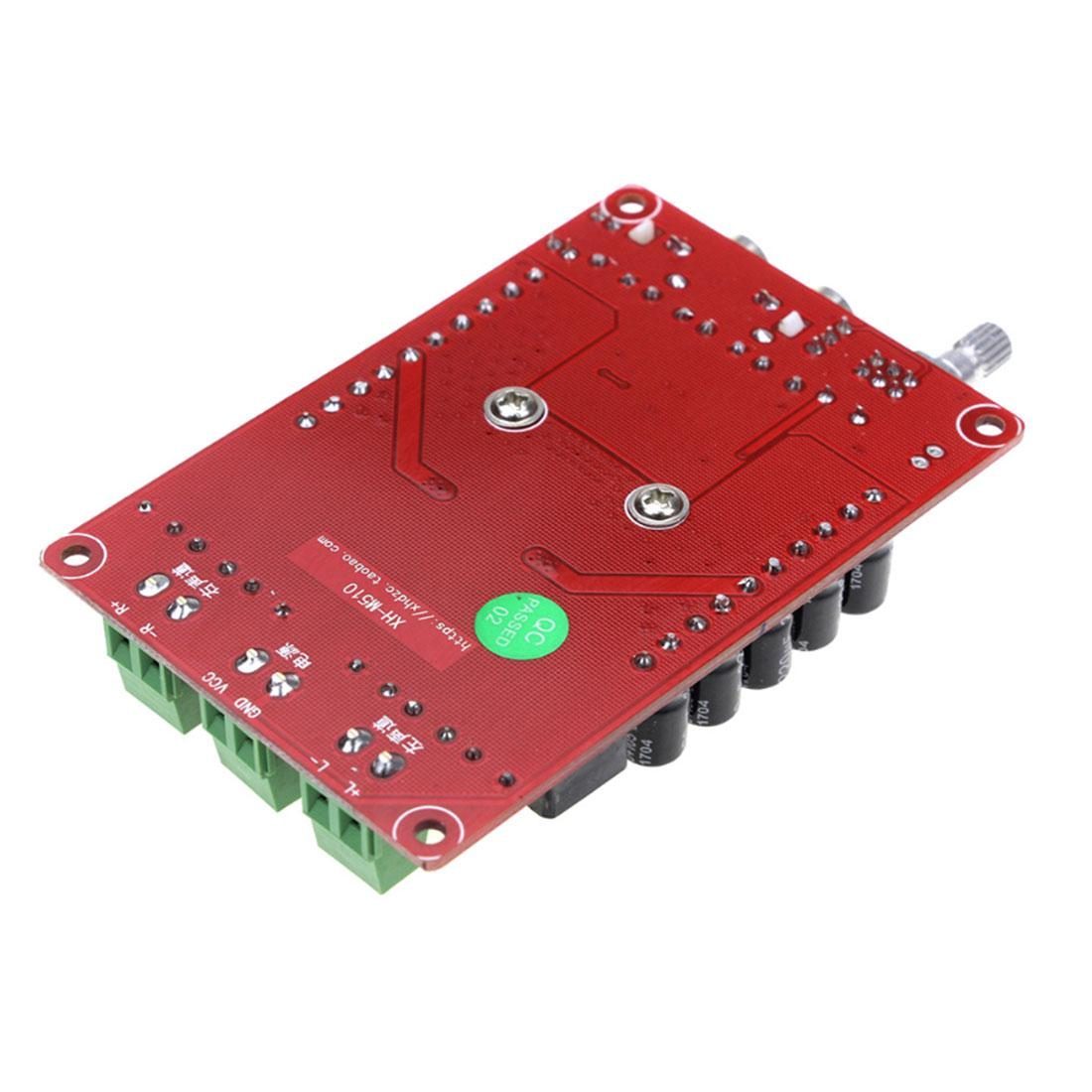

XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board

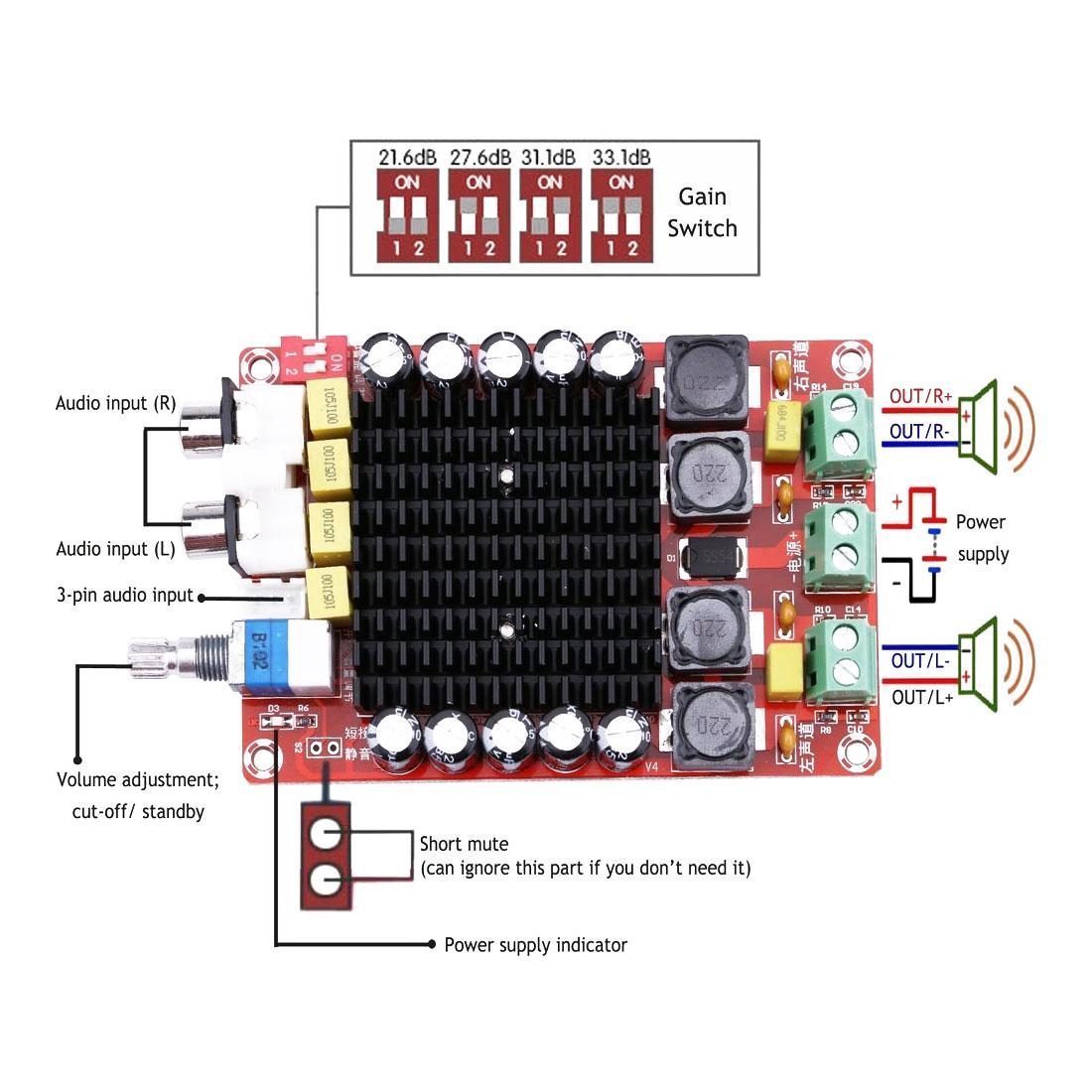

Build your own DIY music system with XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board to create power 200 watts of sound output. This amplifier comes with 4 different levels of gain adjustment (21.6dB,27.6dB,31.1dB,33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel. It uses differential input to reduce common-mode noise significantly and additionally it has the pattern of the fault and silent mode With intelligent protection function and overheating protection function.
this board provides an impressive output power of 100W+100W across two channels, making it suitable for various audio applications, from home audio systems to DIY audio projects.
Features:
- Dynamic Operating Voltage: DC 14-32 Volt
- Powerful 200-watt output
- Easy Plug and Play operation
- Intelligent Overcurrent and overheating protection function.
Specifications:
- Model: XH-M510 TDA7498
- Input Voltage Range (VDC): 15 ~ 32
- Output power: 100W+100W
- Output impedance: 4-8Ω
- Amplifier Type: Class D
- Harmonic Distortion: Po=1W/0.05%
- Frequency Response Range: 18-100KHz
- Switching Frequency: 360KHz
- Signal to noise ratio: 110 dB
- Length (mm): 96
- Width (mm): 64
- Height (mm): 15
- Weight (gm): 90
Package Include:
- 1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
