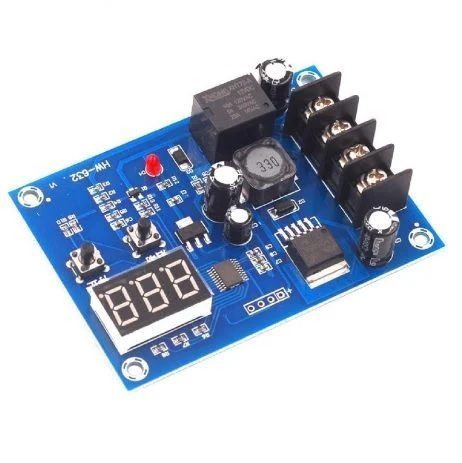

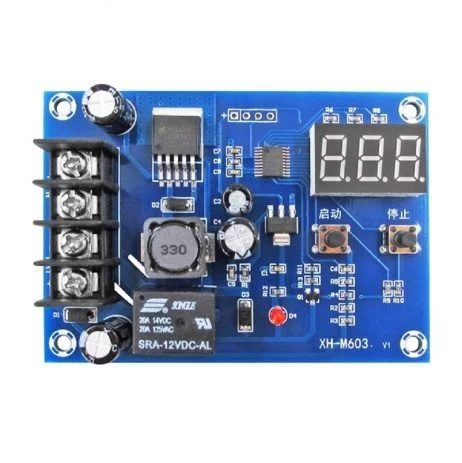

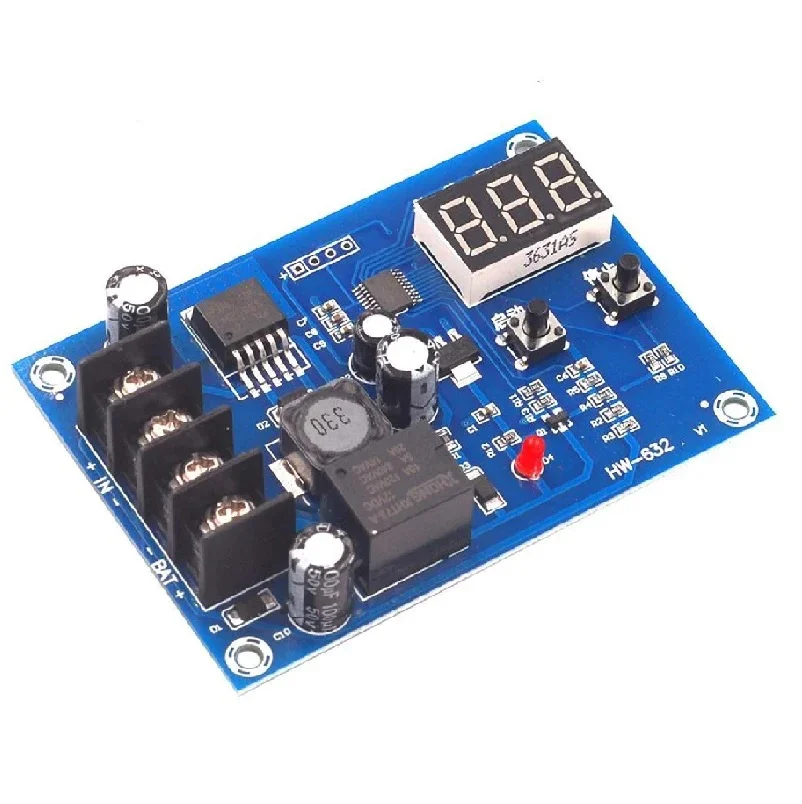

XH-M603 HW-632 Charging Control Module With LED Display

XH-M603 HW-632 Charging Control Module With LED Display is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications.

Features:

•  Automatic control circuit connection
•  Automatic charging and power off
•  Real-time voltage monitor
•  Autosave setting
•  ST core chip
•  LM2596 switch voltage regulator

Specifications:

• Model: XH-M603
• Input Voltage: DC 10-30V
• Display Precision: 0.1V
• Control Precision: 0.1V
• Output Type: direct output
• Voltage Tolerance: ±0.1V
• Dimension(mm): 82 x 58 x 18

How to Use:

1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage: in normal display voltage state, press the button will display stoping charge voltage;long-press the button for 3s the digital tube will flash; you can start or stop button to set stoping charge voltage value.
3. Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings.

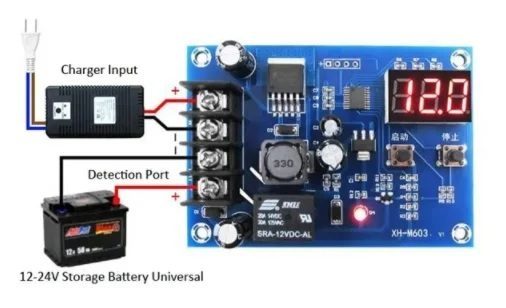

Applications:

• 12-24V storage battery  . It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery

Package Includes:

• 1 x XH-M603 Charging Control Module With LED Display
