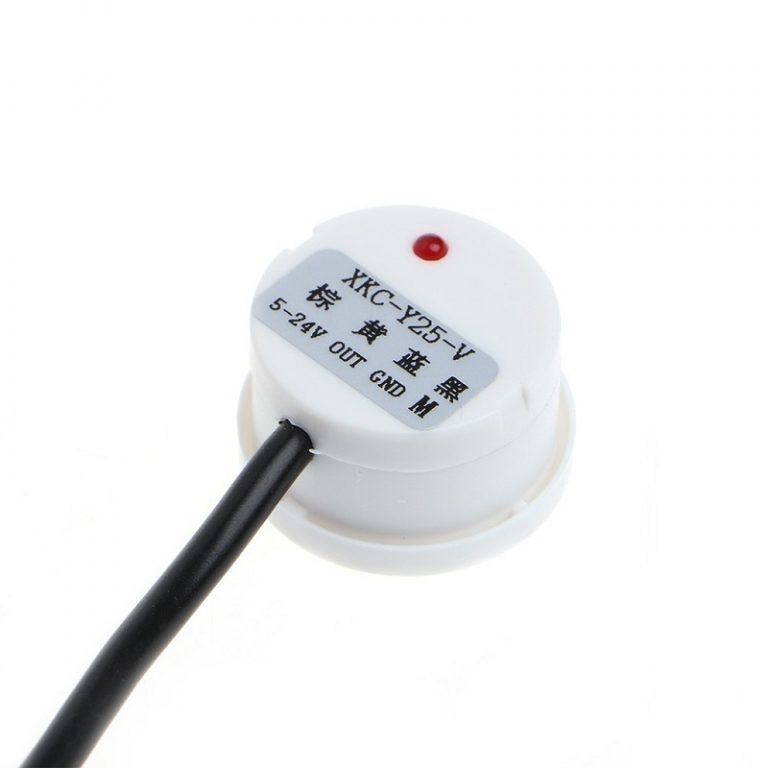

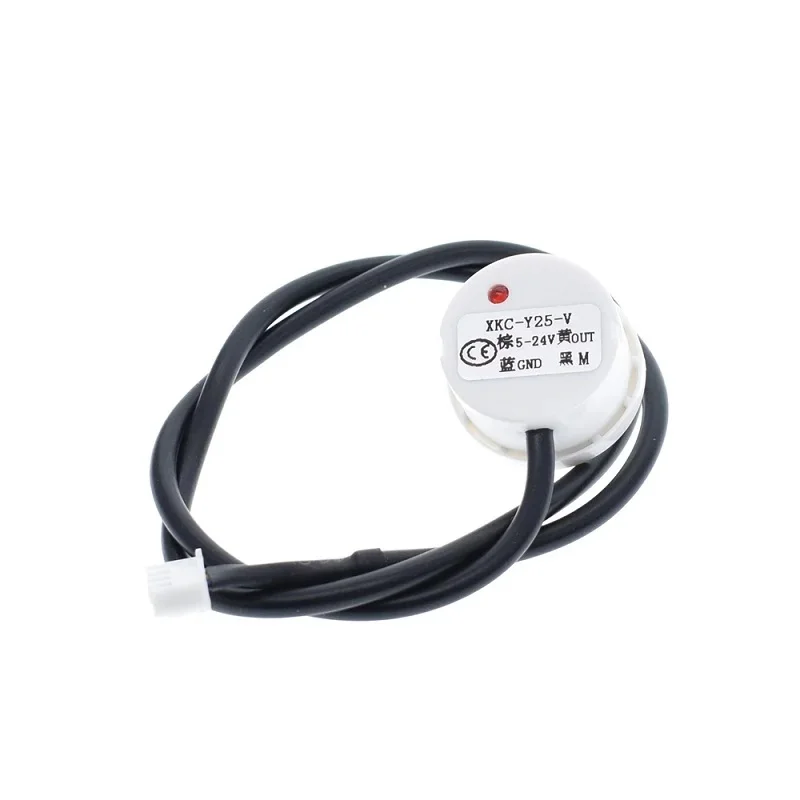

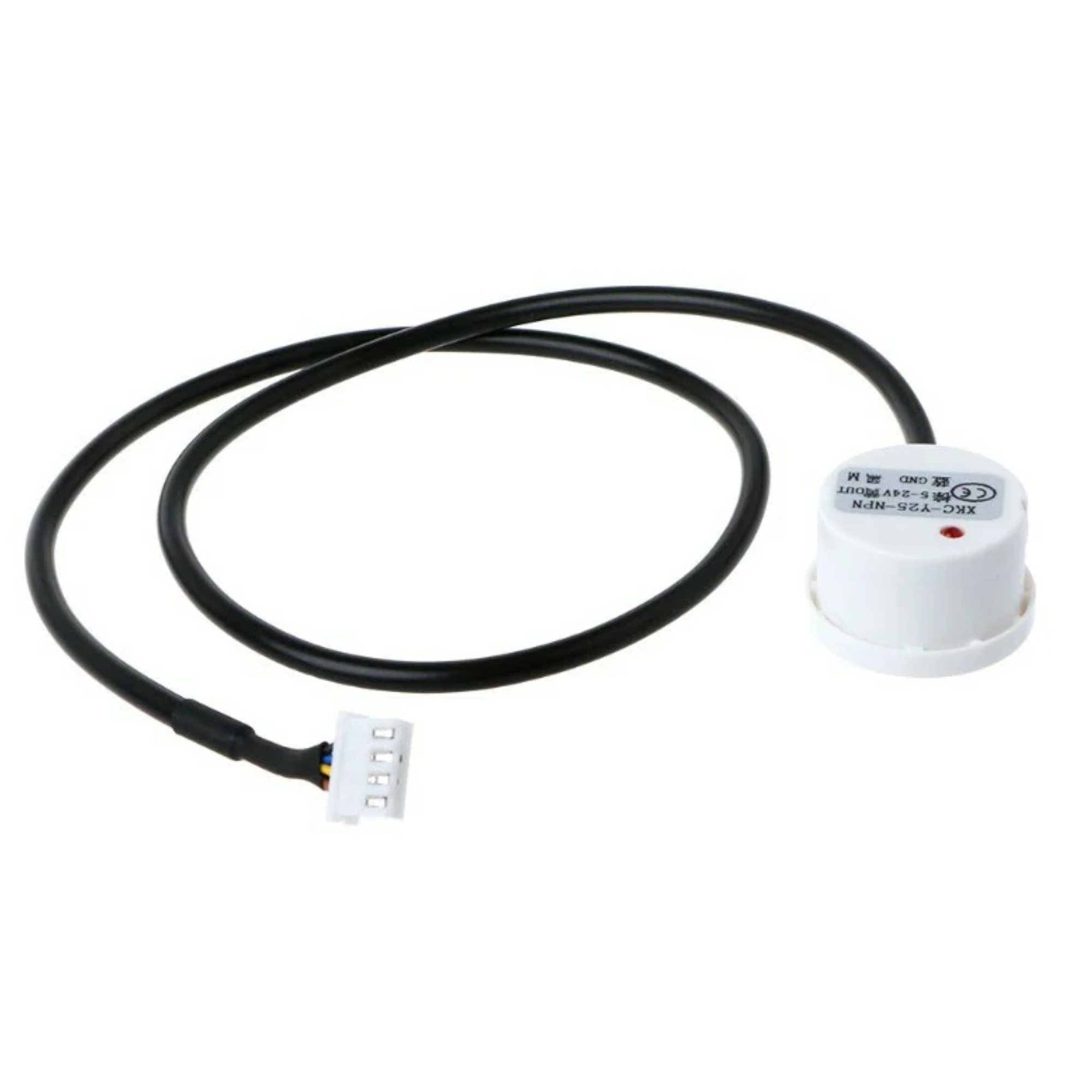

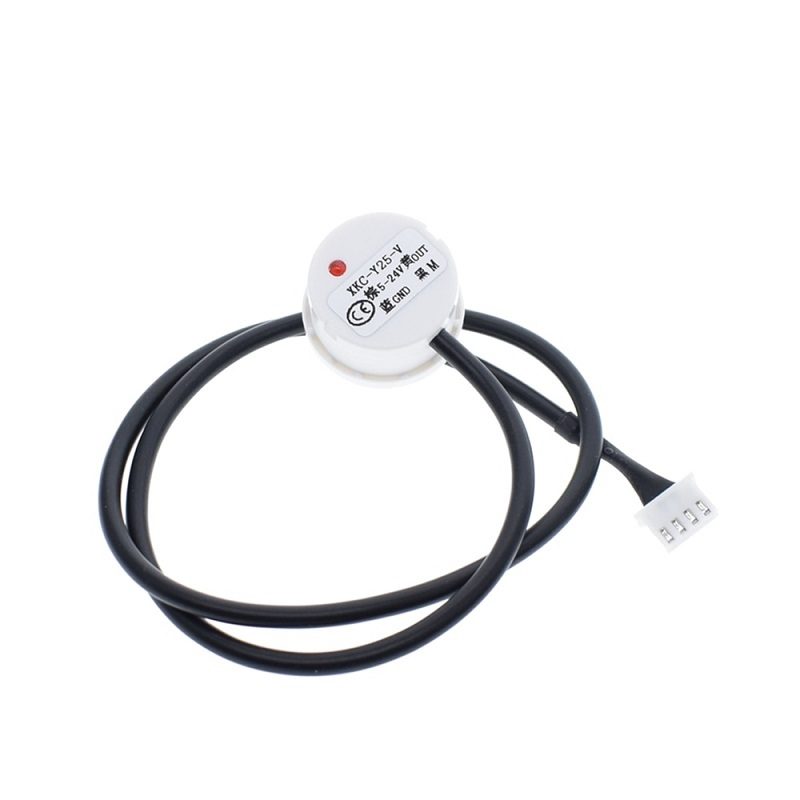

XKC-Y25-V Intelligent Non-Contact Liquid Water Level Sensor

XKC-Y25-V Intelligent Non-Contact Liquid Water Level Sensor is an intelligent non-contact liquid level sensor adopts advanced signal processing technology and a high-speed signal processing chip and it won’t be influenced by container wall thickness when detecting the liquid level in an airtight container. The liquid level sensor is installed under the container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid levels of various toxic substances, acid, alkali, and all kinds of liquid in high-pressure airtight containers. It can be widely used and has no special requirement for the liquid medium and material of the container.

Features:

• The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
• High stability, high sensitivity, and strong anti-interference against electromagnets.
• Compatible with most 5 ~ 12V power adapters.

Specifications:

• Material: ABS
• Input Voltage (InVCC): DC 5 ~ 24 V
• Power Consumption: 5 mA
• Output Current: 1 ~ 100mA
• Response time: 500mS
• Working temperature: 0 ~ 85℃
• Induction thickness (Sensitivity) Range: 0 ~ 20mm
• Communication: RS485
• Humidity: 5% to 100%
• Waterproof: IP67

Applications:

• Water tower
• Sewage treatment
• Drone irrigation
• Medical equipment
• Aquarium
• Smart Appliances

Package Includes:

• 1 x XKC-Y25 NPN Intelligent Non- Contact Liquid Water Level Sensor
