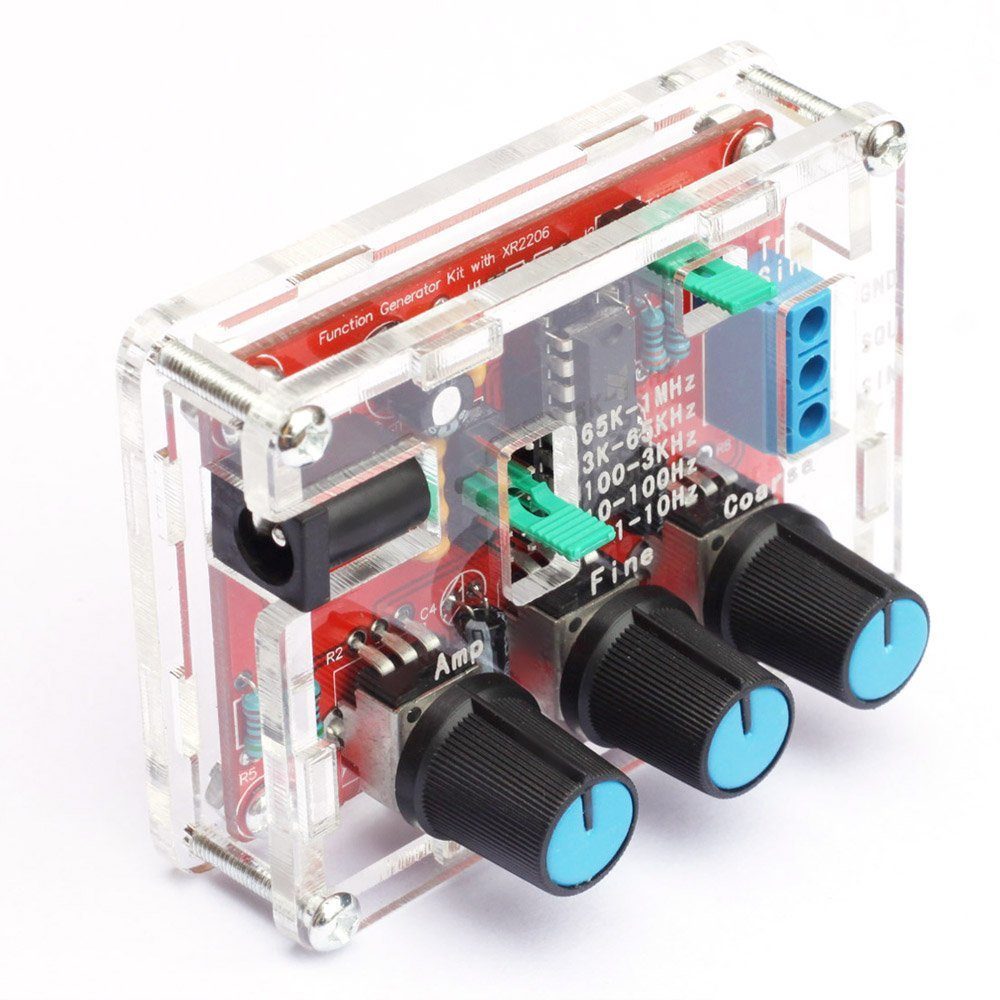

XR2206 High Precision Function Signal Generator DIY Kit Sine Triangle Square Output 1Hz-1MHz Adjustable Frequency Amplitude

XR2206 High Precision Function Signal Generator DIY Kit Sine Triangle Square Output 1Hz-1MHz Adjustable Frequency Amplitude is professional product to generate sine/triangle/square wave. It’s a DIY kit for you to solder and install. This function generator works on supply voltage from 9V to 12VDC, it can generate square, sine, and triangle waveform with frequency from 1Hz to 1MHz. The amplitude of the waveforms can be in the range of 0-3VDC.

Features:

• High resolution, can generate sine/triangle/square waveforms.
• Frequency range: 1Hz-1MHz.
• Adjustable frequency and amplitude.
• Frequency adjustment features coarse tuning and fine tuning.
• Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
• All are through hole components, easy for installation.

Specifications:

• Type: XR2206 DIY Kit
• Voltage Supply: 9-12V DC Input

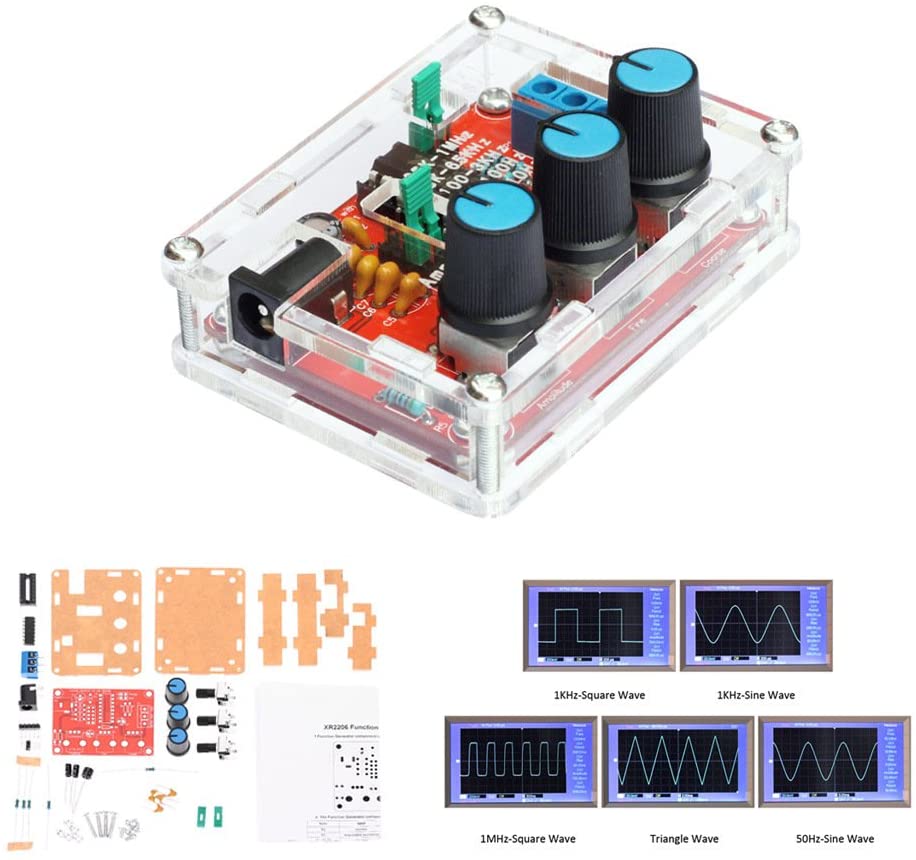

• Waveforms: Square, Sine & Triangle
• Impedance: 600 Ohm + 10%
• Frequency: 1Hz-1MHz

SINE WAVE

• Amplitude: 0-3V at 9V DC Input
• Distortion: Less than 1% (at 1KHz)
• Flatness: +0.05dB 1Hz – 100kHz

SQUARE WAVE

• Amplitude: 8V (no load) at 9V DC Input
• Rise Time: Less than 50ns (at 1KHz)
• Fall Time: Less than 30ns (at 1KHz)
• Symmetry: Less than 5% (at 1KHz)

TRIANGLE WAVE

• Amplitude: 0-3V at 9V DC Input
• Linearity: Less than 1% (up to 100KHz) 10mA
• Package Size: Approx. 12 * 8 * 2cm
• Weight (gm): 69

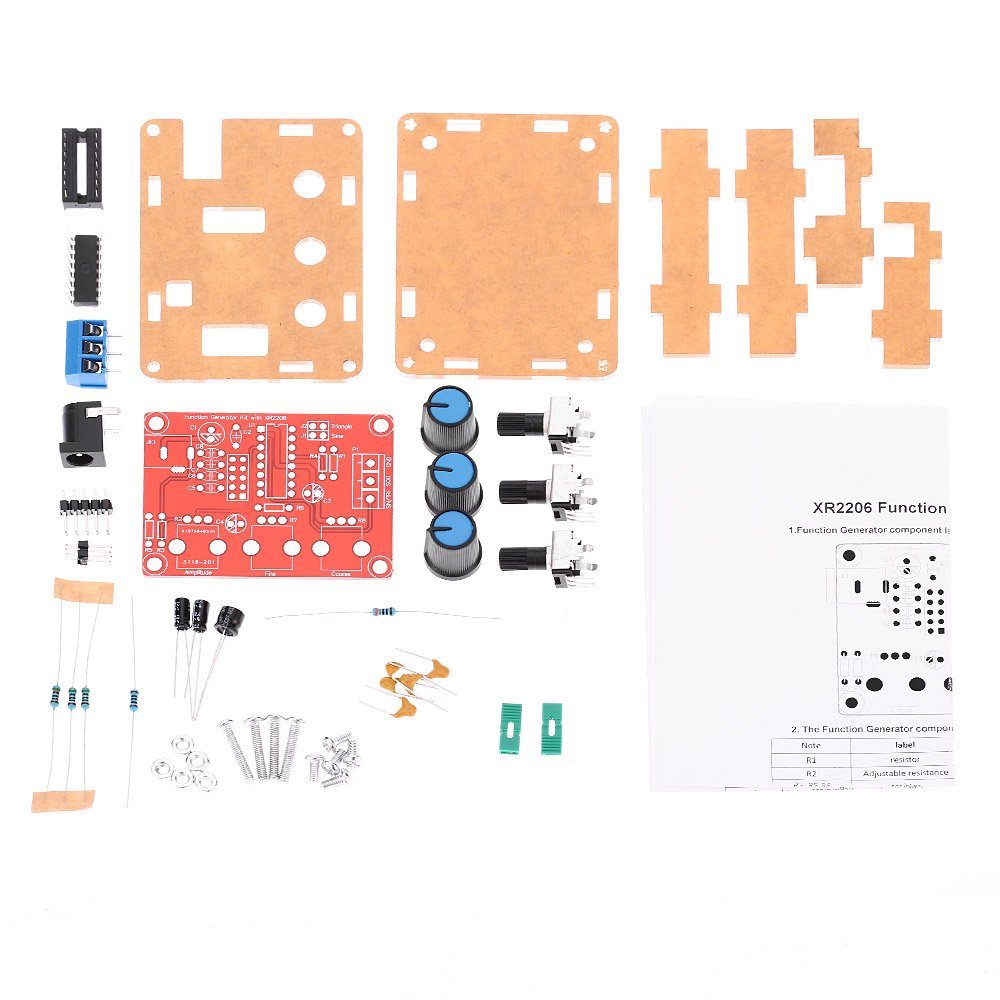

Package Includes:

• 1 x Signal Generator DIY Kit (Battery not included)

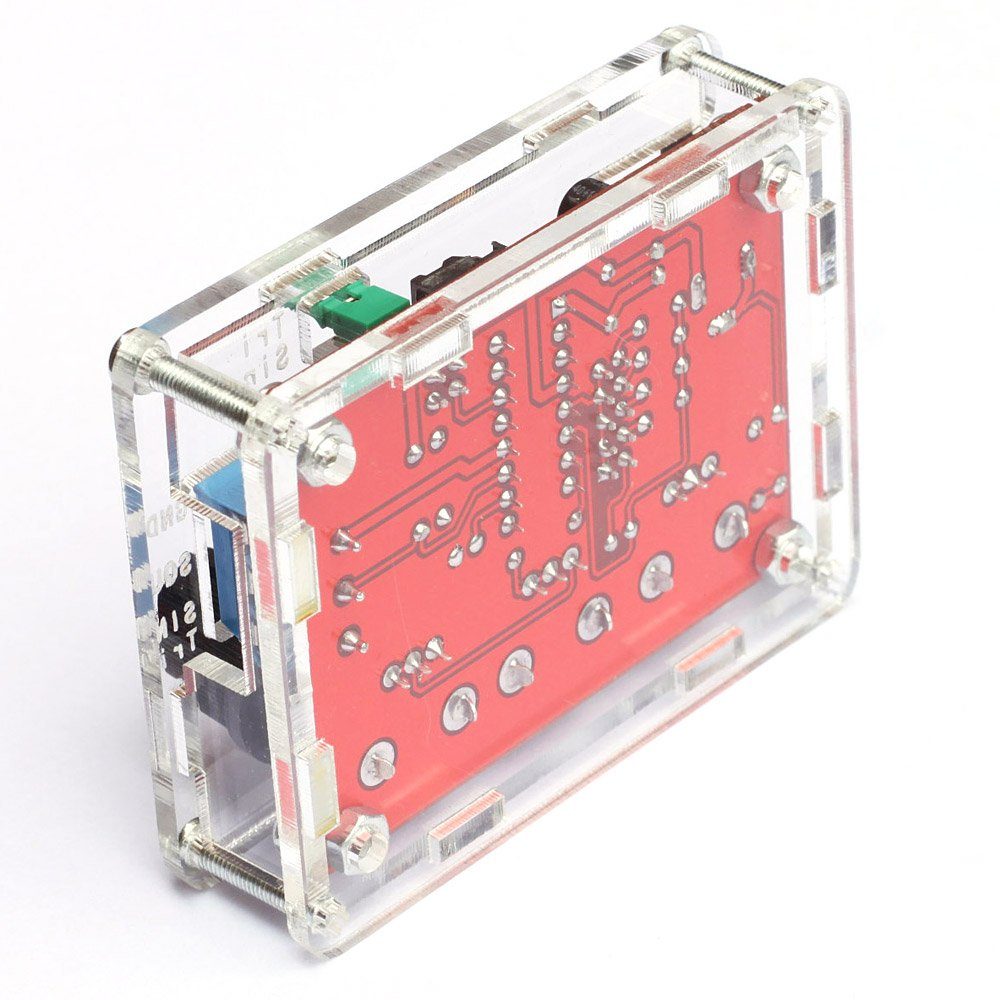

• 1 x Acrylic Case For Signal Generator
• 1 x User Manual(English)

Note: This is DIY kit so it is not eligible for return/replacement.
