OLED Display

0.96 Inch OLED Display 4 Pin SPI/I2C Module BLUE

star star star star star

42 rating

Just for you!

SKU: Anil511

MRP: Rs. 325.00

Rs. 175.00 (Incl. Tax)

Save Rs. 150.00 (46% off)

Rs. 157.50 / pack of 1 = Rs. 157.50 per piece

Pay later available

on orders above ₹300

View options

Quantity

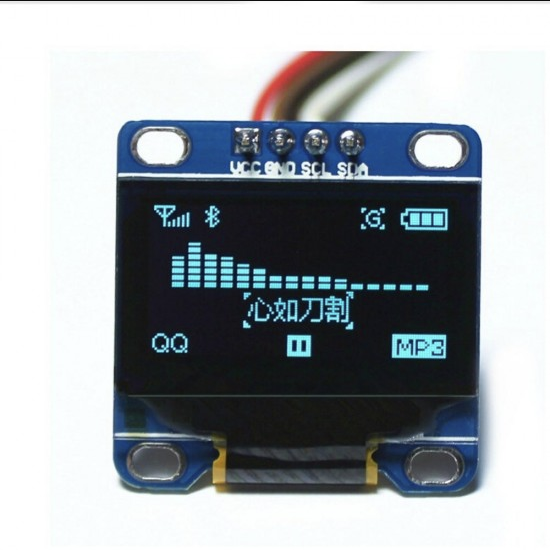

0.96 Inch 4 Pin OLED Display SPI/I2C Module - 128x64 (Blue)

This is a 0.96 Inch 4 Pin OLED Display SPI/I2C Module - 128x64 (Blue). The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header for board.

OLED monochrome 128×64 is a dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Interface pin for 4 PIN 128×64 OLED

VCC: 3.3 volts – 5 Volts
GND: Ground
SCL: Serial Clock
SDA: Serial Data

Features

Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size: 0.96″
Resolution radio:128 x 64
Interface modes: I2C/IIC
working voltage: 3.3V
Control Chip: SSD1306
Only Need 2 I/O Port to Control
Full Compatible Arduino, 51

Specifications:

Display Size	0.96 Inch
Pixel Colour	Blue
Resolution	128 x 64 Pixels
Active Display Area	21.74 x 10. 86mm
Driving Voltage	3.3-5V
Operating Temperature	-40º~70º Celsius
Interface Type	I2C IIC
Length (mm)	27.5
Width (mm)	27.5
Height (mm)	11
Weight (gm)	7
