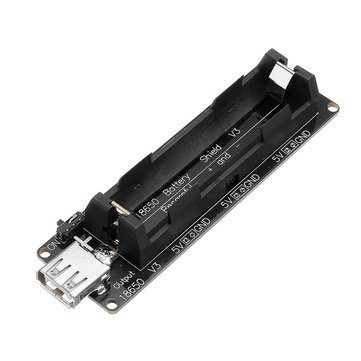

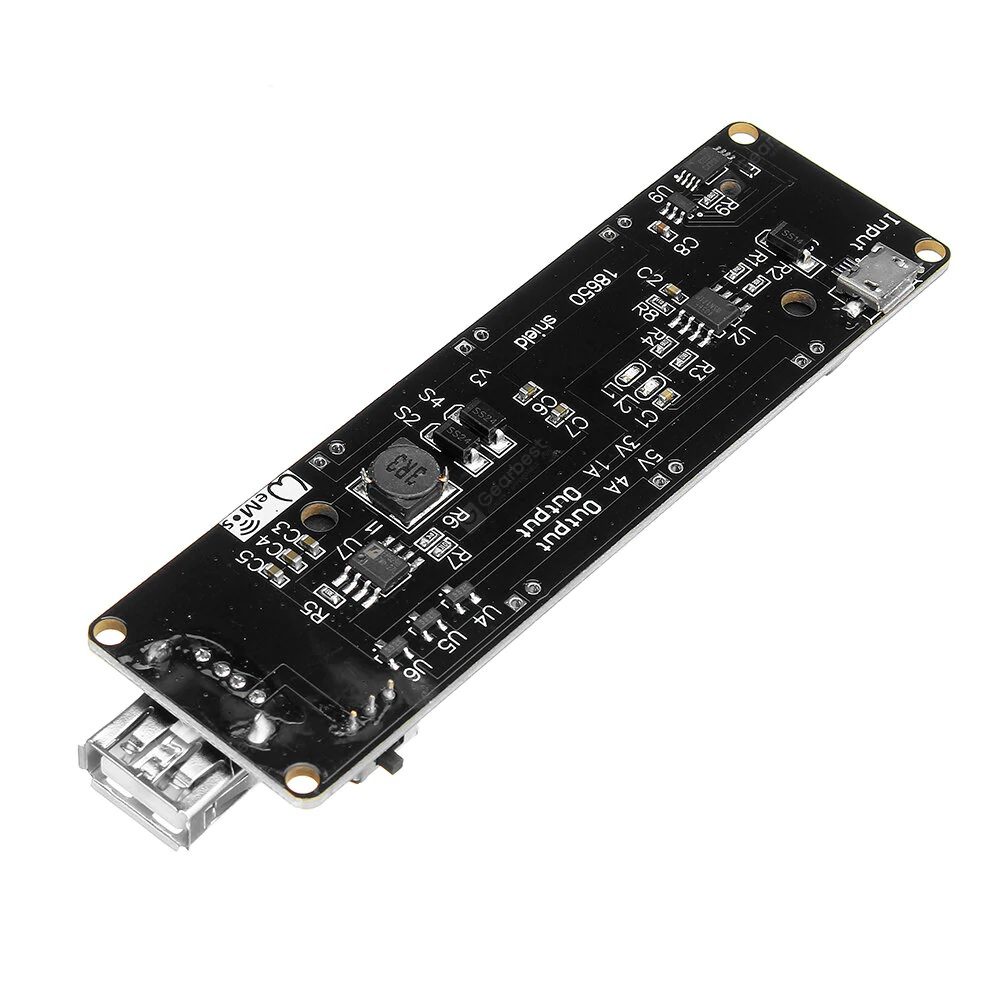

18650 Battery Charge Holder V3 0.5A USB Type-A Charging Protection Board

The 18650 Battery Charge Holder V3 0.5A USB Type-A Charging Protection Board is compatible for Arduino, Raspberry Pi,esp8266 or Sensors with protection. The output current can reach upto 2A.

This 18650 Battery Holder/Development Board is compatible With Raspberry Pi3B/3B+ that comes with a built-in battery charging module as well as an I2C battery monitoring system for the raspberry pi. If you want to convert your project into a portable solution then this is a solution for you this board comes with a 18650 Li-ion Battery holder and a charging module for the battery this board can supply a maximum of up to 6A current to the raspberry pi via its output terminals which is more than enough for the normal operation of the raspberry pi.

This module has a built-in battery monitoring system, which can monitor the battery voltage and send the information via the I2C protocol to the raspberry pi. This can come in handy while building a self-powered raspberry pi project which can also monitor the battery voltage and alert when the battery voltage falls below a certain limit.

Features:

• This module is suitable for 18650 battery only
• over-charging protection and over-discharge protection
• Micro USB port Charging Input
• A type USB Output
• Charge current: 0.5A
• 1 switches to control the USB output
• Input voltage: 5 ~ 8V
• Three 3V 1A output interface
• Three 5V 2A output interface
• LED light, green for full of charge, red for under charging

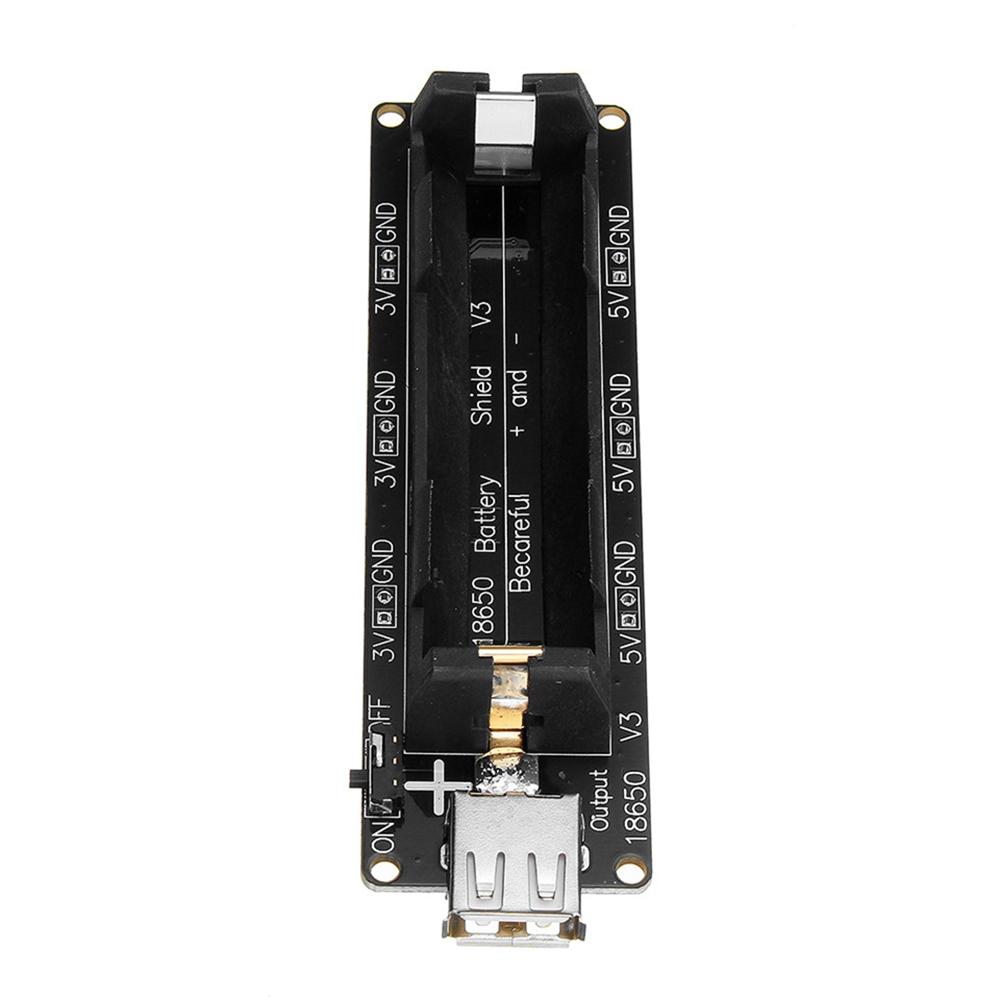

• Follow the direction “+” “-” on the PCB

Specifications:

• Operating Voltage (VDC): 5
• Max. Output Current (A): 6
• Length (mm): 100
• Width (mm): 30
• Height (mm): 30
• Weight (gm): 10

Note:

• This module is suitable for 18650 battery only
• This module can be powered or for raspberry pi and sensor at the same time
• This module output current up to 2A
• (This product does not contain 18650 battery installation, be careful of the battery positive and negative when install, do not reverse. Please follow the + – direction on the PCB and do not follow the positive and negative directions on the battery holder)

Package Includes:

• 1 x 18650 Battery Charge Holder 0.5A USB Charging Protection Board
