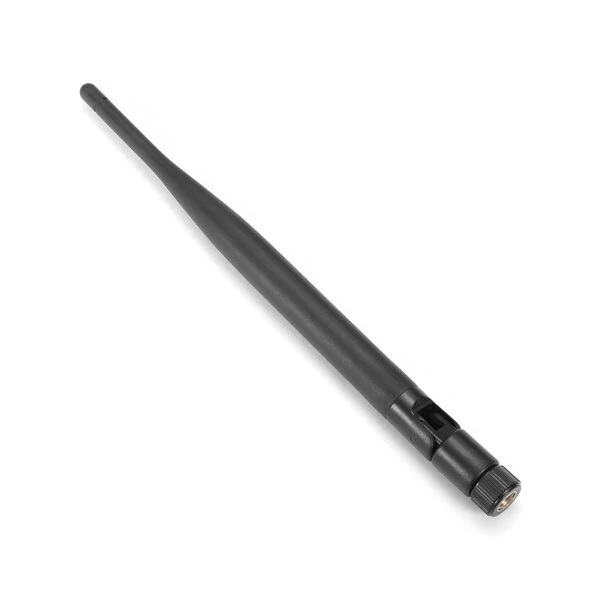

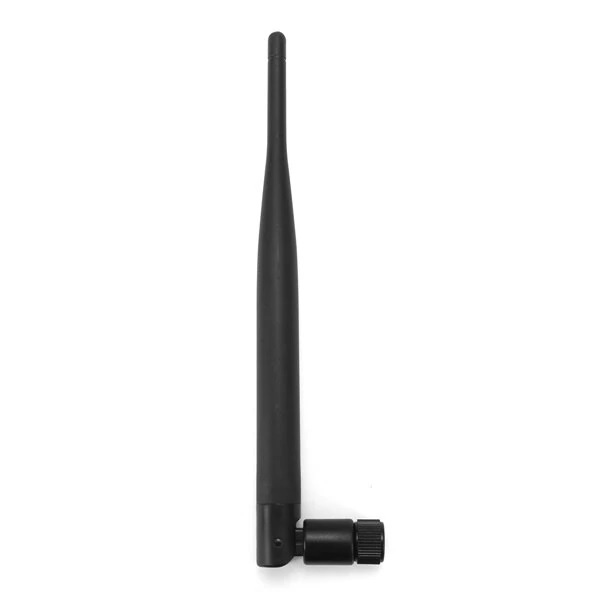

2.4GHz 6dBi WiFi Antenna SMA Male, Omni Directional 195mm
Boost your wireless performance with this 2.4GHz 6dBi WiFi Antenna SMA Male Omni-Directional. Designed for extended coverage and reliable connectivity, this antenna is ideal for wireless routers, access points, ESP32/ESP8266 modules, WiFi cameras, and other 2.4GHz devices.
With a gain of 6dBi, it delivers enhanced signal strength and improved range compared to standard antennas. The RP-SMA male connector ensures compatibility with a wide range of WiFi devices, and the omni-directional design means it can transmit and receive signals in all directions for maximum coverage.
Its hinged design allows for flexible positioning for optimal performance.
Features:
- Frequency: 2.4GHz ISM band
- Gain: 6dBi for extended signal range
- Connector: SMA male (reverse polarity)
- Type: Omni-directional antenna
- Ideal for WiFi routers, IoT boards, FPV drones, wireless adapters
- Flexible angle/tilt via hinged connector
- Compatible with ESP32, ESP8266, NodeMCU, Arduino WiFi shields
Specifications:
- Frequency Range: 2400–2500 MHz
- Gain: 5-6dBii
- Antenna Type: Omni-directional
- Connector Type: SMA Male
- Polarization: Vertical
- Impedance: 50 Ohms
- VSWR: ≤ 2.0
- Gain distance: 1-70m

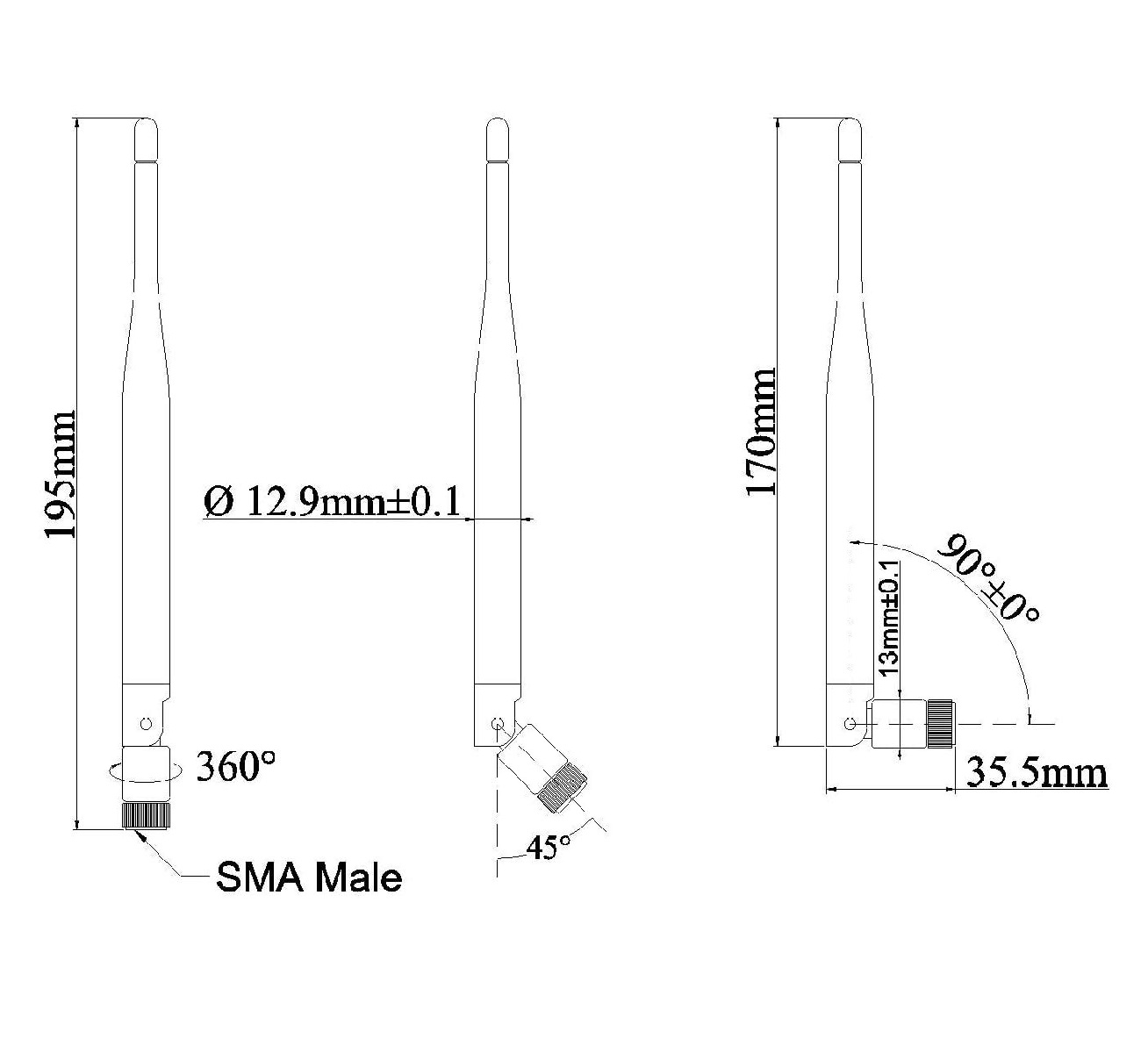

- Length Approx: 19.5 cm (adjustable)
- Material: ABS plastic with brass connector
- Mounting: Screw-on, hinged base
Applications:
- WiFi routers and access points
- ESP32 / ESP8266 / Arduino WiFi projects
- Wireless IP cameras
- FPV drones and wireless telemetry
- Signal boosting in low-signal environments
- IoT device communication
Package Includes:
- 1 x 2.4GHz 6dBi WiFi Antenna
Note: Image is for reference only.
